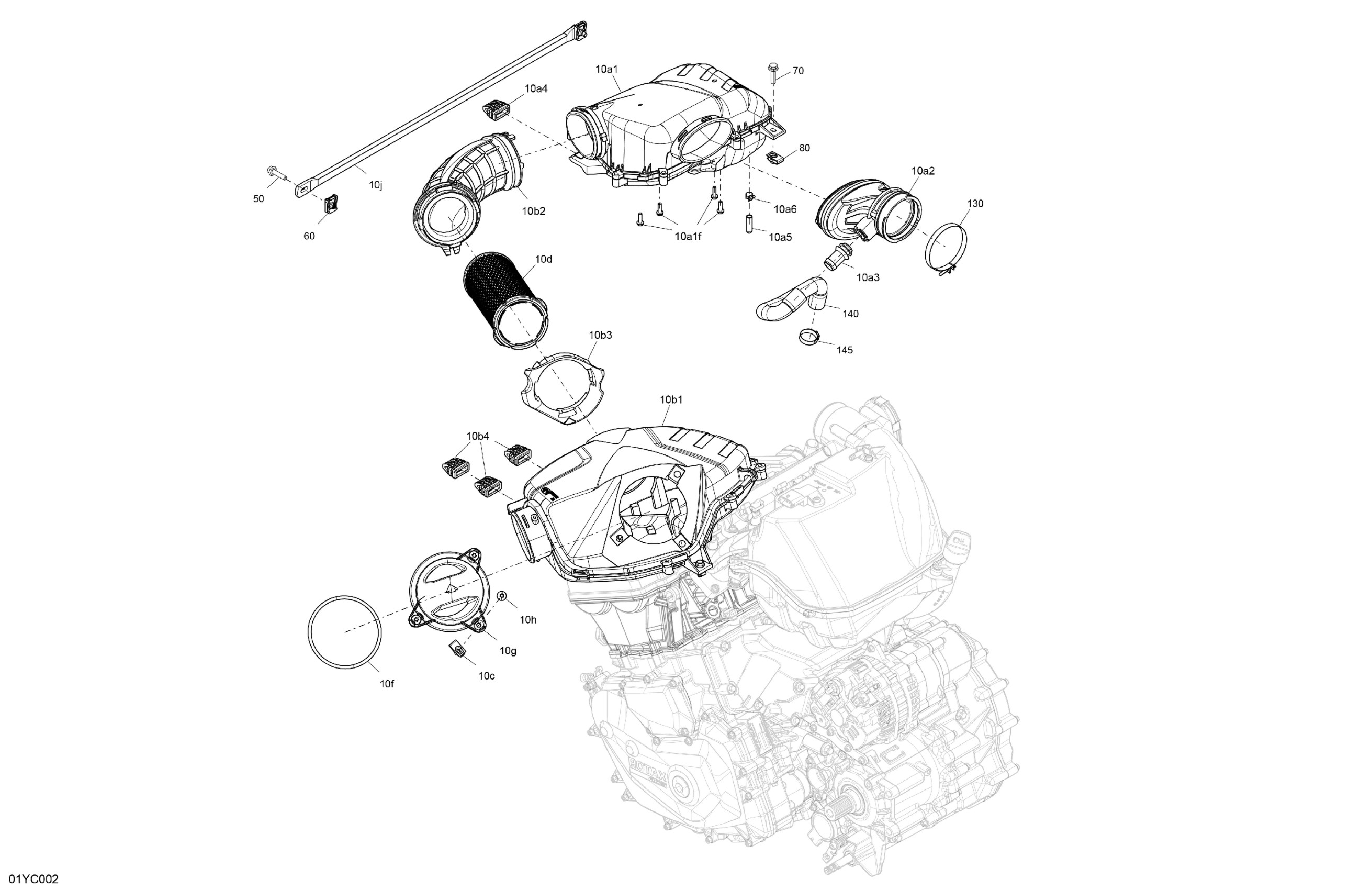

Can-Am 005 - RT LIMITED - Dark Edition - Deep Marsala Metallic, North America, 2023 02- Engine - Air Intake Diagram

Description

Price

10a1

RH Air Intake Silencer | Includes 10a1 to 10a1f

707800488

$54.99

10a1f

Hex. Screw M4.8 X 1.8

243141680

$4.86

10a2

Air Intake Adaptor

707800388

$33.99

10a3

Breather Valve

273000234

$14.49

10a4

Rubber Stopper

707800452

$7.69

10a5

Cap Plug

293000105

$4.39

10a6

Spring Clamp

414554800

$0.88

10b1

LH Air Intake Silencer | Includes 10b1 to 10b1c

707800489

$54.99

10b2

Intake Adaptor

707800485

$31.99

10b3

Ring

707800525

$16.99

10b4

Rubber Stopper

707800452

$7.69

10c

Panel Nut M6 X 1.0

250100198

$2.11

10d

Air Filter

707800483

$47.49

10f

O-ring

707800455

$7.94

10g

Cap

707800484

$19.49

10h

Torx Truss Screw M6 X 16

250000348

$2.11

10j

Link Rod | Includes 10k to 10k1

707800432

$24.49

Hex. Flange Screw M6 X 25

207662544

$0.64

Panel Nut M6 X 1.0

250100208

$1.46

Hex. Flange Screw M6 X 25

207662544

$0.64

Panel Nut M6 X 1.0

250100198

$2.11

130

Gemi Clamp

508000346

$10.33

140

Formed Hose

707800824

$18.99

145

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19
