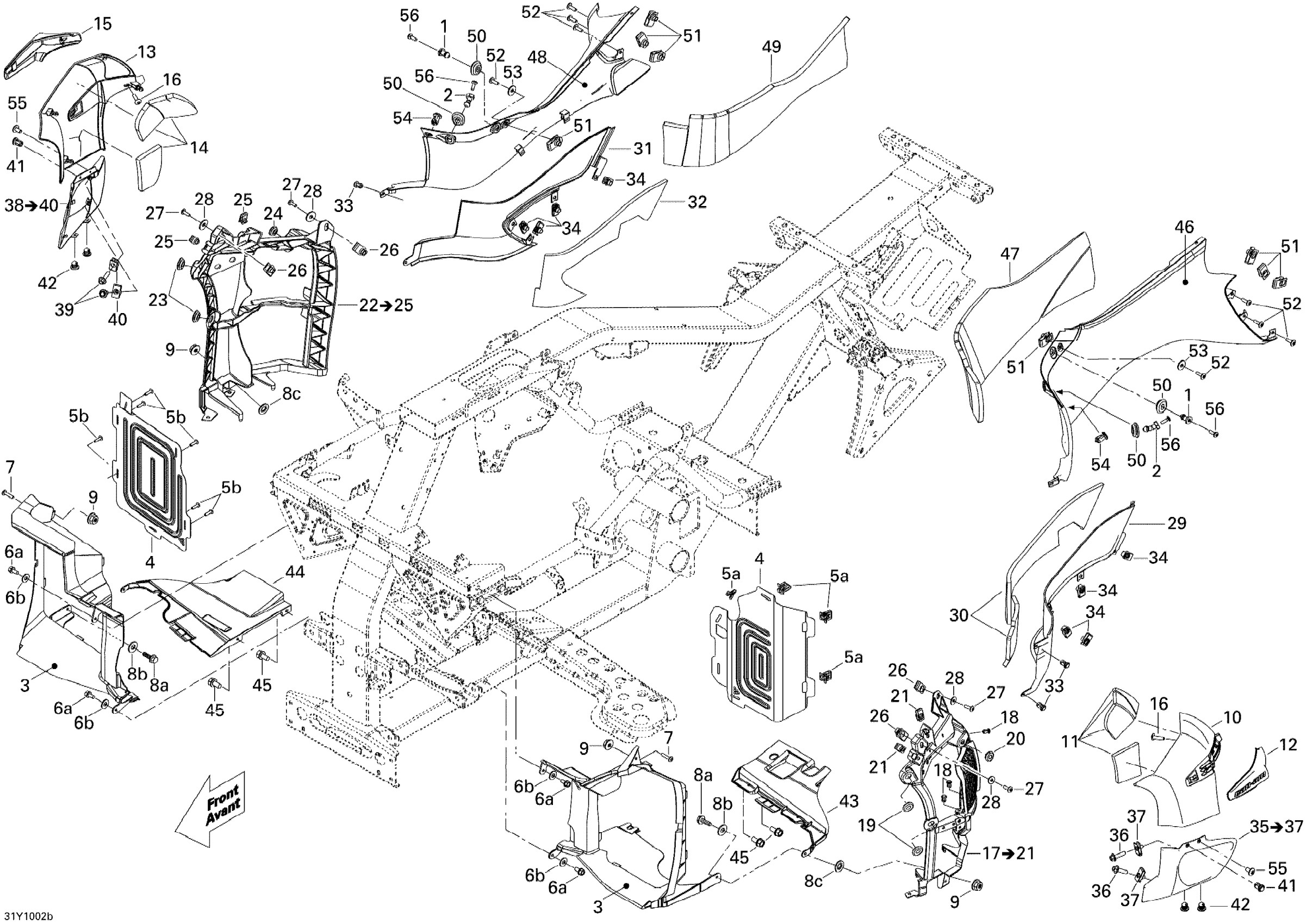

Can-Am Spyder RT, RTS Roadster SM5, 2010 09- Body And Accessories , Side Parts 1 Diagram

#

Description
Price

1

Knob

705003842

$5.82

2

Angled Knob

705003746

$5.69

3

LH RADIATOR BEZEL - Call your local BRP dealership

705005008

Unavailable

3

RH RADIATOR BEZEL - Call your local BRP dealership

705002758

Unavailable

4

LH Radiator Grille

705003792

Unavailable

4

RH RADIATOR GUARD - Call your local BRP dealership

705003793

Unavailable

5a

Edge Clip

517302785

$0.88

5b

Torx-Truss Pt K40 X 16

250000759

$2.11

6

Hex. Flange Screw M6 X 12

210261250

$1.90

7

Torx Truss Screw M6 X 20

250000350

$5.29

8a

Hex. Flange Screw M6 X 25

207662544

$0.64

8b

Flat Washer 6 mm

234062410

$0.77

8c

Push Nut

732610072

$2.19

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

LH SIDE PANEL, FULL MOON - Call your local BRP dealership | Full Moon

705003976

Unavailable

10

Orbital Blue LH Side Panel

705009017

$259.99

10

Panel_Body Lh B-302 | Model-Timeless Black Met

705009013

$249.99

11

Side Foam LH

705009311

$20.99

12

Chrome, Side Panel Cap Kit (LH&RH) | Model-RT LTD

219400195

$104.99

13

RH SIDE PANEL, FULL MOON - Call your local BRP dealership | Full Moon

705003980

Unavailable

13

Orbital Blue RH Side Panel

705009018

$259.99

13

Panel_Body Rh B-302 | Model-Timeless Black Met

705009014

$249.99

14

Side Foam RH

705009312

$20.99

15

Chrome, Side Panel Cap Kit (LH&RH) | Model-RT LTD

219400195

$104.99

16

Torx-Truss Pt K40 X 16

250000759

$2.11

17

LH Support

705009063

$119.99

18

Tuflok Plastic Rivet

293150230

$1.47

19

Oval Washer

705000321

$5.61

20

Grommet

709000582

$4.69

21

Panel Nut M6 X 1.0

250100198

$2.11

22

RH Support

705009064

$124.99

23

Oval Washer

705000321

$5.61

24

Grommet

709000582

$4.69

25

Panel Nut M6 X 1.0

250100198

$2.11

26

Panel Nut M6 X 1.0

250100198

$2.11

27

Torx Truss Screw M6 X 20

250000350

$5.29

28

Washer M6

250200029

$2.50

29

LH Lower Pannel

705006820

$78.99

30

LH ROCKER PANEL FOAM - Call your local BRP dealership

518324755

Unavailable

31

RH LOWER PANEL - Call your local BRP dealership

705006187

Unavailable

32

RH LOWER PANEL FOAM - Call your local BRP dealership

518324756

Unavailable

33

Tuflok Plastic Rivet

293150230

$1.47

34

Panel Nut M8

250100111

$4.29

35

LH Water Deflector Ass'y

705003759

$45.99

36

Hex.Flange Screw M5 X 20

207652044

$1.90

37

Panel Nut M5 X 0.8

250000958

$4.23

38

RH Water Deflector Ass'y

705003760

$45.99

39

Hex.Flange Screw M5 X 20

207652044

$1.90

40

Panel Nut M5 X 0.8

250000958

$4.23

41

Tuflok Plastic Rivet

293150230

$1.47

42

Panel Fastener

518321954

$7.69

43

LH DEFLECTOR PANEL - Call your local BRP dealership

705002755

Unavailable

44

RH DEFLECTOR PANEL - Call your local BRP dealership

705002756

Unavailable

45

Hex. Flange Screw M6 X 12

210261250

$1.90

46

LH Upper Lateral Panel, Full Moon | Full Moon

705003984

Unavailable

46

Orbital Blue LH Lateral Panel

705004517

$359.99

46

LH UPPER LATERAL PANEL, TIMELESS BLACK - Call your local BRP dealership | Timeless Black

705004516

Unavailable

47

LH FOAM - Call your local BRP dealership

705009313

Unavailable

48

RH Upper Lateral Panel, Full Moon | Full Moon

705003987

Unavailable

48

Orbital Blue RH Lateral Panel

705003989

$359.99

48

RH UPPER LATERAL PANEL, TIMELESS BLACK - Call your local BRP dealership | Timeless Black

705003988

Unavailable

49

RH FOAM - Call your local BRP dealership

705009314

Unavailable

50

Oval Washer

705000321

$5.61

51

Panel Nut M6 X 1.0

250100198

$2.11

52

Torx Truss Screw M6 X 20

250000350

$5.29

53

Stainless Steel Flat Washer

234062670

$2.11

54

Tuflok Plastic Rivet

293150230

$1.47

55

Torx Screw M6 X 12

250000454

$4.44

56

Torx Screw, K50X16

250000459

$4.29
