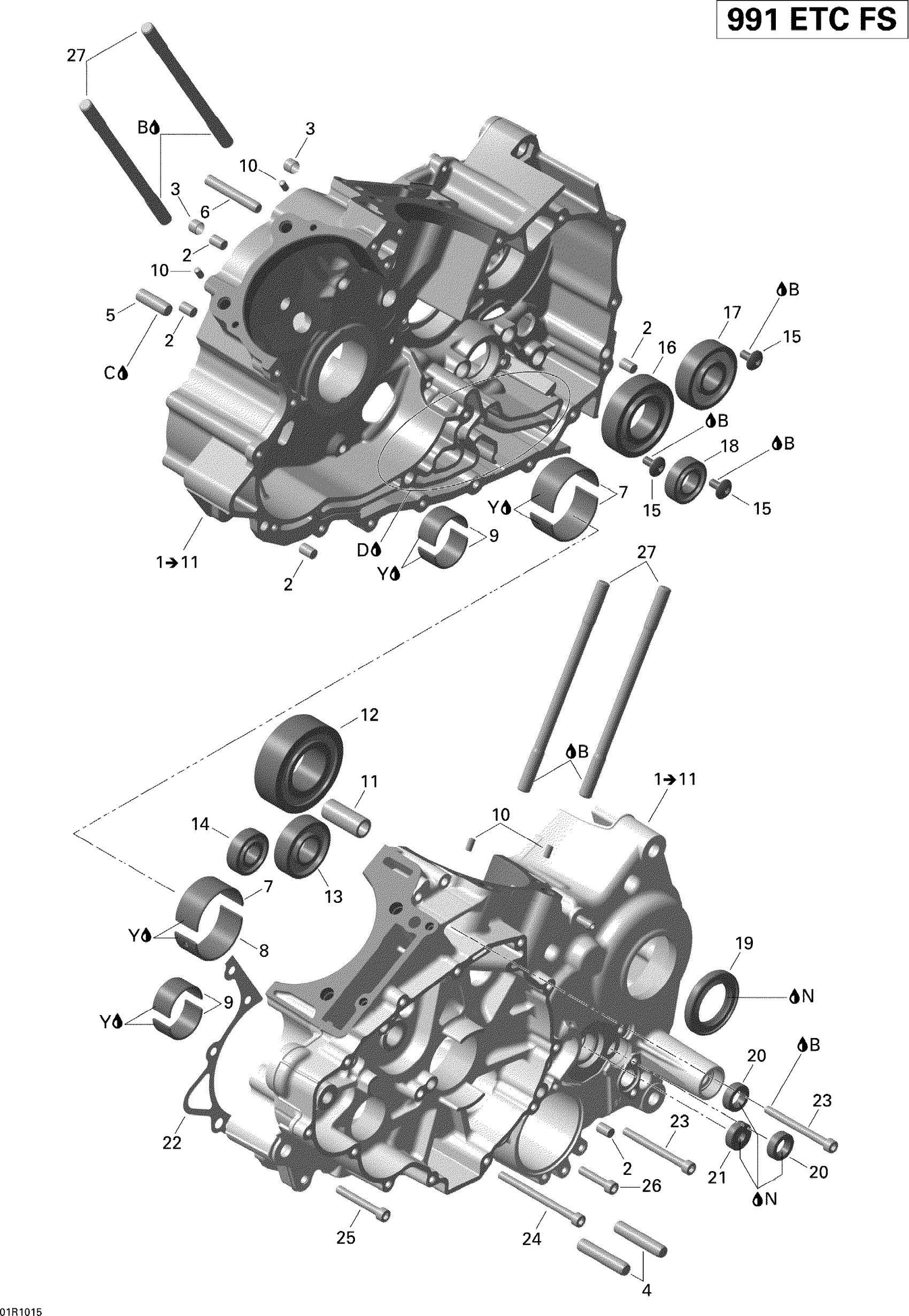

Can-Am Spyder RT, RTS Roadster SM5, 2010 01- Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 11

420684711

$1,277.49

2

Center Pin 8 X 12

420632010

$4.01

3

DOWEL TUBE - Call your local BRP dealership

420929501

Unavailable

4

Location Pin 10 M6x50

420229302

$3.17

5

PIN, M6 X 50 - Call your local BRP dealership

420929930

Unavailable

6

PIN, M6 X 55 - Call your local BRP dealership

420229385

Unavailable

7

Plain Bearing, Red

420233746

$28.49

7

Bushing_Half - Call your local BRP dealership

420233745

Unavailable

7

Plain Bearing,Yellow

420233748

$28.49

8

Plain Bearing, Red

420233741

$28.49

8

Bushing_Half - Call your local BRP dealership

420233740

Unavailable

8

Plain Bearing, Yellow

420233743

$28.49

9

Plain Bearing, Red

420233820

$25.49

9

Plain Bearing, Blue

420233711

$25.49

9

Bushing_Half - Call your local BRP dealership

420233822

Unavailable

10

Drive Pin 5 X 10

420929650

$1.68

11

BOLT - Call your local BRP dealership

420229450

Unavailable

12

Ball Bearing

420832315

$270.49

13

Ball Bearing

420932677

$23.99

14

Ball Bearing

420932290

$23.99

15

Hex Flat Head Screw M6 X 13 T30

420241537

$3.17

16

BALL BEARING - Call your local BRP dealership

420932585

Unavailable

17

BALL BEARING - Call your local BRP dealership

420832144

Unavailable

18

Ball Bearing

420232625

$20.99

19

Oil Seal

420831185

$19.99

20

Oil Seal

420250455

$17.38

21

Oil Seal

420631910

$12.16

22

Gasket

420430630

$46.49

23

Allen Screw, M6 X 65

420241261

$4.97

24

ALLEN SCREW, M6 X 80 - Call your local BRP dealership

420241503

Unavailable

25

SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership

205064544

Unavailable

26

Socket Head Screw M6 X 30

205063044

$1.69

27

Stud

420241580

$19.99

B

Loctite 243, 10 ml

293800060

$21.49

C

Sealant Loctite 648

219703000

$45.99

D

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

N

Dow Corning 111, 150 g

413707000

$59.99

Y

Was 420297616 Klueber Grease, 60g

219704464

$23.99
