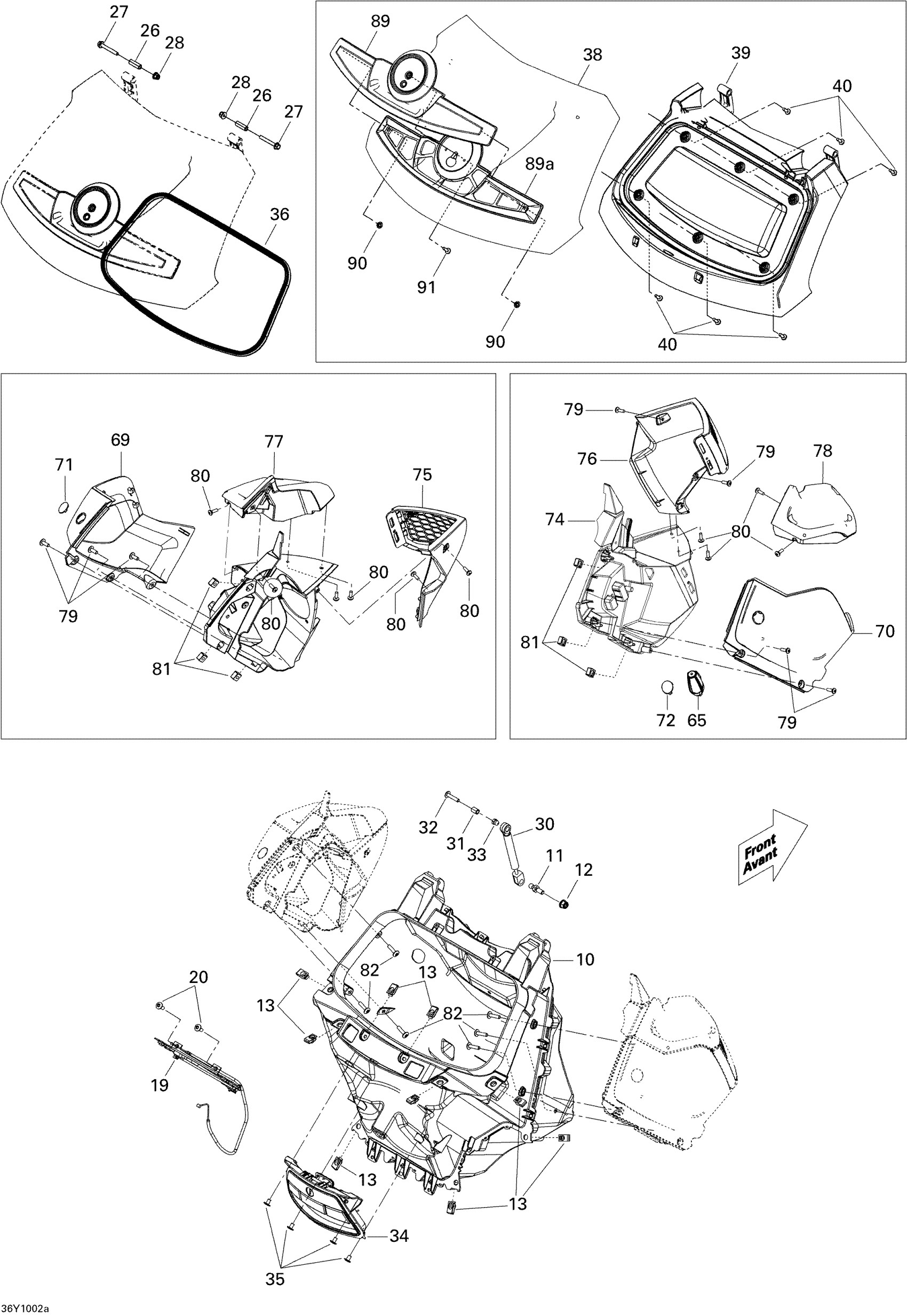

Can-Am Spyder RT, RTS Roadster SE5, 2010 09- Luggages A Diagram

#

Description
Price

10

STORAGE - Call your local BRP dealership

708300044

Unavailable

11

Ball Head Stud

250300039

$7.51

12

Hex. Flange Elastic Nut M8

233281414

$1.47

13

Panel Nut M6 X 1.0

250100198

$2.11

19

Center Latch

708301642

$154.99

20

Torx Truss Screw M6 X 16

250000348

$2.11

26

Spacer

708300394

$14.99

27

Hex. Flange Screw M6 X 45

207664544

$1.46

28

Flange Elastic Nut M6

233261434

$4.44

30

Gaz Shock

708300383

$79.99

31

Spacer

708300384

$14.49

32

Torx Truss Screw M6 X 30

250000843

$2.11

33

Domed Nut M6

232361493

$2.11

34

Main Control (WO lock cylinder)

708302620

$164.99

35

Torx Truss Screw M6 X 10

250000349

$7.51

36

Seal

708300456

Unavailable

38

CENTRAL COVER - Call your local BRP dealership | All Full Moon Except RTS

708300244

Unavailable

38

CENTRAL COVER, TIMELESS BLACK - Call your local BRP dealership | Timeless Black Metallic RTS

708300245

Unavailable

38

Central Cover Orbital Blue Metallic | Model RT with Color Orbital Blue

708301927

$299.99

39

Inner Cover

708300678

$89.99

40

Torx Screw K50 X 16

250000720

$1.69

65

RH Radio Antena Base

708300156

$22.49

69

TRIM REST ARM LH B-306 - Call your local BRP dealership | Model RT with Color Orbital Blue

708300251

Unavailable

69

LH ARM COVER, TIMELESS BLACK - Call your local BRP dealership | Timeless Black Metallic

708300249

Unavailable

69

LH ARM COVER - Call your local BRP dealership | Full Moon

708300247

Unavailable

70

RH Arm Cover | Full Moon

708300248

Unavailable

70

RH ARM COVER - Call your local BRP dealership | Timeless Black Metallic

708300250

Unavailable

70

TRIM REST ARM RH B-306 - Call your local BRP dealership | Model RT with Color Orbital Blue

708300252

Unavailable

71

LH CAP, TIMELESS BLACK - Call your local BRP dealership | Timeless Black Metallic

708300370

Unavailable

72

RH CAP - Call your local BRP dealership | Full Moon RT

708300293

Unavailable

74

RH SOUND BOX - Call your local BRP dealership

708300037

Unavailable

75

Deep Black LH Grille | Model-With Black Seat

708300381

Unavailable

76

Deep Black RH Grille | Model-With Black Seat

708300382

Unavailable

77

Deep Black, LH Arm Rest | Model-With Black Seat

708000614

$89.99

78

Deep Black, RH Arm Rest | Model-With Black Seat

708000615

$89.99

79

Torx Screw K50 X 16

250000720

$1.69

80

Torx Screw K50 X 16

250000720

$1.69

81

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

82

Torx Screw M6 x 25

250000284

$2.11

89

MOULDING KIT - Call your local BRP dealership | Model RT with Package LTD / S

219400192

Unavailable

89a

MOULDING KIT - Call your local BRP dealership | Model RT with Package LTD / S

219400192

Unavailable

90

Push Nut

732610072

$2.19

91

Torx Screw K50 X 16

250000720

$1.69
