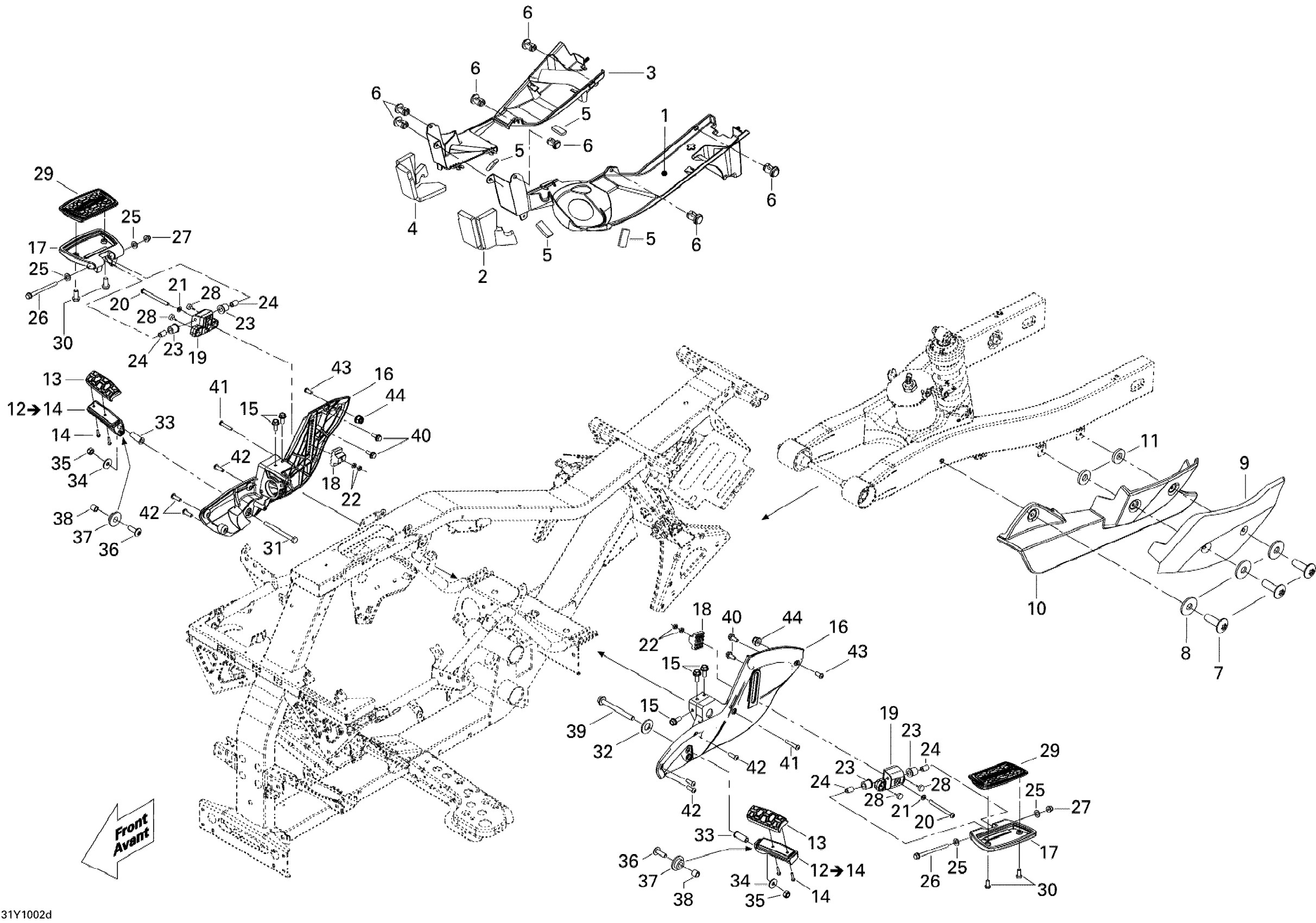

Can-Am Spyder RT, RTS Roadster SE5, 2010 09- Body And Accessories SE5, Side Parts 2 Diagram

#

Description
Price

1

LH COVER TANK ASS'Y - Call your local BRP dealership

705004896

Unavailable

2

LH REFLECTIVE FOAM - Call your local BRP dealership

705003780

Unavailable

3

RH COVER TANK ASS'Y - Call your local BRP dealership

705004459

Unavailable

4

RH REFLECTIVE FOAM - Call your local BRP dealership

705003781

Unavailable

5

Neoprene Seal (1PAC=3M)

219704364

$27.49

6

Tuflok Plastic Rivet

293150230

$1.47

7

Torx Truss Screw M6 X 30

250000843

$2.11

8

Stainless Steel Flat Washer

234062670

$2.11

9

Belt Guard Moulding

705009446

$35.99

10

Lower Belt Guard

705002092

$48.99

11

Adhesive Spacer

705003696

$4.19

12

LH FRONT FOOTREST ASS'Y - Call your local BRP dealership | Includes 12 to 14

705003614

Unavailable

12

RH FRONT FOOTREST ASS'Y - Call your local BRP dealership | Includes 12 to 14

705004710

Unavailable

13

LH Front Footpeg Pad | Model-RT STD

705003732

$39.99

13

RH Front Footpeg Pad | Model-RT STD

705003245

$39.99

14

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

15

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

16

Silver LH Footrest Support | Model-RT STD

705008521

$329.99

16

SILVER LH FOOTREST SUPPORT - Call your local BRP dealership | Model-RT STD

705008526

Unavailable

17

SILVER REAR FOOTREST - Call your local BRP dealership | Model-RT STD

705008530

Unavailable

18

Adjuster Block

705003013

$43.99

19

Crystal Sliding Block | Model-RT STD

705008518

$48.99

20

SOCKET SCREW M8 X 90 - Call your local BRP dealership

205489060

Unavailable

21

Stainless, Flat Washer 8 mm

234081600

$0.55

22

Hex. Jam Nut M8

232180600

$0.67

23

Rubber Bushing

705003018

$10.49

24

Bushing

705002153

$11.99

25

Washer

503183800

$3.28

26

Hex. Flange Screw M8 X 110

230681034

$4.44

27

Hex. Flange Elastic Nut M8

233281434

$2.11

28

Rubber Stopper

708000759

$4.19

29

REAR FOOTREST PAD - Call your local BRP dealership

705004150

Unavailable

30

Allen Plastite Screw #12

250000099

$2.19

31

Hex. Screw M10 X 115 | Model-RT STD SM6

230001586

$7.51

32

Flat Washer 10 mm

234001410

$1.26

33

Inner Bushing | Model-RT STD

706201151

$20.99

34

Flat Washer 10 mm, Stainless

234002600

$2.22

35

Elastic Stop Nut M10

232500416

$1.90

36

Torx Screw M6 X 20

250000722

$1.68

37

Grommet

705003932

$2.89

38

Bushing

709000162

$13.76

39

Hex. Screw M10 X 70, Scotch Grip

207507046

$7.41

40

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

41

Socket Screw M8 X 45

205484560

$2.11

42

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.22

43

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.22

44

Hex. Flange Elastic Nut M8

233281434

$2.11
