Description

Price

1

Service Center Access Panel LH

705002839

$33.99

2

RH SERVICE CENTER - Call your local BRP dealership

705003570

Unavailable

3

Tuflok Plastic Rivet

293150230

$1.47

4

FRONT CONSOLE - Call your local BRP dealership | Full Moon

705009168

Unavailable

4

Orbital Blue Front Console | Color Orbital Blue

705009169

$259.99

4

TIMELESS BLACK MET FRONT CONSOLE - Call your local BRP dealership | Model-Timeless Black Met

705007573

Unavailable

5

Panel Nut M6 X 1.0

250100198

$2.11

6

Torx Truss Screw M6 X 20

250000350

$5.29

7

Stainless Steel Flat Washer

234062670

$2.11

8

Upper Console

705006186

$179.99

9

Torx Truss Screw M6 X 20

250000350

$5.29

10

Torx Screw M5 X 20

250000792

$2.11

11

Guide Chart Support

705002746

$27.99

12

Edge Clip

517302785

$0.88

13

Guide Chart

705009360

$27.99

14

WINDSHIELD ASS'Y - Call your local BRP dealership | Includes 14 to 17b

219800199

Unavailable

15

Windshield Grommet

705003756

$5.69

16

SLEEVE - Call your local BRP dealership

705003778

Unavailable

17a

Torx Truss Screw M6 X 20

250000350

$5.29

17b

CAUTION DECAL, WINDSHIELD - Call your local BRP dealership

704901353

Unavailable

18

Black Deep, LH Windshield Cap

705007411

$43.99

18

Black Deep, RH Windshield Cap

705007412

$43.99

18

CHROME WINDSHIELD CAP KIT - Call your local BRP dealership | Model-RT LTD

219400191

Unavailable

19

Torx Screw M5 X 25

250000455

$3.06

20

Panel Nut M5 X 0.8

250000958

$4.23

21

Windshield Support

705003975

Unavailable

22

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$47.99

23

Retainer Pin

705003295

$18.49

24

Circlip

705600272

$9.23

25

Windshield Motor Support Ass'y | Includes 25 to 32

705004774

$749.99

26

Hex. Screw M6 X 50

207065060

$2.22

27

Elastic Stop Nut M6, Brass

232561200

$4.23

28

Stainless Flat Washer M6

234061600

$0.33

29

Rear Arm Ass'y

219800432

$83.99

30

Inner Sleeve | Order 219800321

NLA

Unavailable

31

Sleeve

705003267

$9.48

32

Not Available As Spare Part - Friction Washer

Unavailable

38

Hex. Flange Screw M6 X 35

207663544

$0.90

39

Console Support

705002743

$99.99

40

Panel Nut M6 X 1.0

250100198

$2.11

41

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

42

Square Nut M6

232862412

$1.49

43

Console Support Plate

705003779

$27.99

44

LH Acoustic Foam

707800349

$18.49

45

RH Acoustic Foam

707800341

$18.49

46

Black, Dart

293730006

$0.99

47

LH SPEAKER HOUSING - Call your local BRP dealership

705003092

Unavailable

48

SPEAKER RH - Call your local BRP dealership

705009165

Unavailable

49

Panel Nut M5 X 0.8

250000958

$4.23

50

Torx Screw M5 X 20

250000724

$1.69

51

Hex. Flange Screw M6 X 16

210261650

$1.67

52

Hex. Flange Screw M6 X 20

207662044

$2.00

53

Console Cross-Support

705003384

$82.99

54

Panel Nut M6 X 1.0

250100198

$2.11

55

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

56

Hex. Flange Screw M6 X 20

207662044

$2.00

57

LH Mirror Assembly | Includes 1 to 9

708400146

$306.99

57

RH Mirror Assembly | Includes 10 to 18

708400147

$306.99

58

LH Lower Mirror Shell

705003148

$144.99

58

RH Lower Mirror Shell

705003159

$144.99

59

LH Front Flasher Unit

710001510

$163.99

59

RH Front Flasher Unit

710001511

$163.99

60a

Screw

219800118

$6.35

60b

Housing with Spring | Includes 3 to 5

219800156

$21.99

60c

Screw 2.9 X 12.5

219800157

$6.89

60d

Housing with Spring

219800158

$11.49

61

LH UPPER MIRROR SHELL, FULL MOON - Call your local BRP dealership | Full Moon

705003964

Unavailable

61

LH UPPER MIRROR SHELL, ORBITAL BLUE - Call your local BRP dealership | Orbital Blue

705003965

Unavailable

61

LH UPPER MIRROR SHELL, TIMELESS BLACK - Call your local BRP dealership | Timeless Black

705003963

Unavailable

61

RH UPPER MIRROR SHELL, FULL MOON - Call your local BRP dealership | Full Moon

705003967

Unavailable

61

RH UPPER MIRROR SHELL, ORBITAL BLUE - Call your local BRP dealership | Orbital Blue

705003968

Unavailable

61

RH UPPER MIRROR SHELL, TIMELESS BLACK - Call your local BRP dealership | Timeless Black

705003966

Unavailable

62a

Spherical Head Stud

705004322

$17.26

62b

Spherical Head Stud

705004323

$17.26

63

LH Upper Air Deflector

705002841

$45.99

64

RH Upper Air Deflector

705002842

$45.99

65

Torx Truss Screw M6 X 20

250000488

$2.11

66a

DASHBOARD ASS'Y - Call your local BRP dealership

705006655

Unavailable

66b

LH SPEAKER GRILL - Call your local BRP dealership

705003199

Unavailable

66c

RH SPEAKER GRILL - Call your local BRP dealership

705003200

Unavailable

67

Panel Nut M5 X 0.8

250000958

$4.23

68

Oval Washer

705005156

$4.97

69

Torx Truss Screw M6 X 20

250000350

$5.29

70

Tuflok Plastic Rivet

293150230

$1.47

71

Dashboard Bezel

705003163

$53.99

72

Torx Screw, Nylon Patch, M5 X 14

250000487

$1.90

73

GAUGE CAP - Call your local BRP dealership

705003421

$15.49

74

Center Panel

705004461

$38.99

75

Tuflok Plastic Rivet

293150230

$1.47

76

Glove Box

705002726

$79.99

77

Panel Nut M6 X 1.0

250100198

$2.11

78

Oval Washer

705005156

$4.97

79

Push Latch

705007380

$62.99

80

Flange Torx Screw K40 X 16

250000287

$2.11

81

NEOPRENE SEAL, METER - Call your local BRP dealership

219800143

Unavailable

82

Panel Nut M6 X 1.0

250100198

$2.11

83

Hex. Flange Screw M6 X 20

207662044

$2.00

84

Glove Box Door, Full Moon | Full Moon

705003959

Unavailable

84

GLOVE BOX DOOR, ORBITAL BLUE - Call your local BRP dealership | Orbital Blue

705003961

Unavailable

84

GLOVE BOX DOOR, TIMELESS BLACK - Call your local BRP dealership | Timeless Black

705003749

Unavailable

85

Glove Box Spring

705003748

$25.99

86

Retainer Pin

705003295

$18.49

87

Circlip

705600272

$9.23

88

GLOVE BOX CABLE - Call your local BRP dealership

705003625

Unavailable

89

Tie Wrap 142 mm

293750002

$1.25

90

LH UPPER SIDE PANEL, FULL MOON - Call your local BRP dealership | Full Moon

705003952

Unavailable

90

Orbital Blue LH Upper Side Panel

705003953

$299.99

90

LH UPPER SIDE PANEL, TIMELESS BLACK - Call your local BRP dealership | Timeless Black

705003951

Unavailable

90

RH UPPER SIDE PANEL, FULL MOON - Call your local BRP dealership | Full Moon

705003955

Unavailable

90

Orbital Blue RH Upper Side Panel

705003956

$299.99

90

RH UPPER SIDE PANEL, TIMELESS BLACK - Call your local BRP dealership | Timeless Black

705003954

Unavailable

91

LH Upper Side Panel Grille

705003385

$30.99

91

RH Upper Side Panel Grille

705003386

$30.99

92

LH Lower Air Deflector

705004924

$43.99

92

RH Lower Air Deflector

705004925

$43.99

93

Torx Screw, K50X16

250000459

$4.29

94

Edge Clip

517302785

$0.88

95

Torx Truss Screw M6 X 20

250000350

$5.29

96

Stainless Steel Flat Washer

234062670

$2.11

97

Torx Truss Screw M6 X 20

250000488

$2.11

98

Seal Tray 1000Mm Long

219704368

$13.99

99

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

100

OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership

219800172

Unavailable

101

OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership

219800172

Unavailable

102

OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership

219800172

Unavailable

103

OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership

219800172

Unavailable

104

OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership

219800172

Unavailable

105

Knob

705003842

$5.82

106

Oval Washer

705005156

$4.97

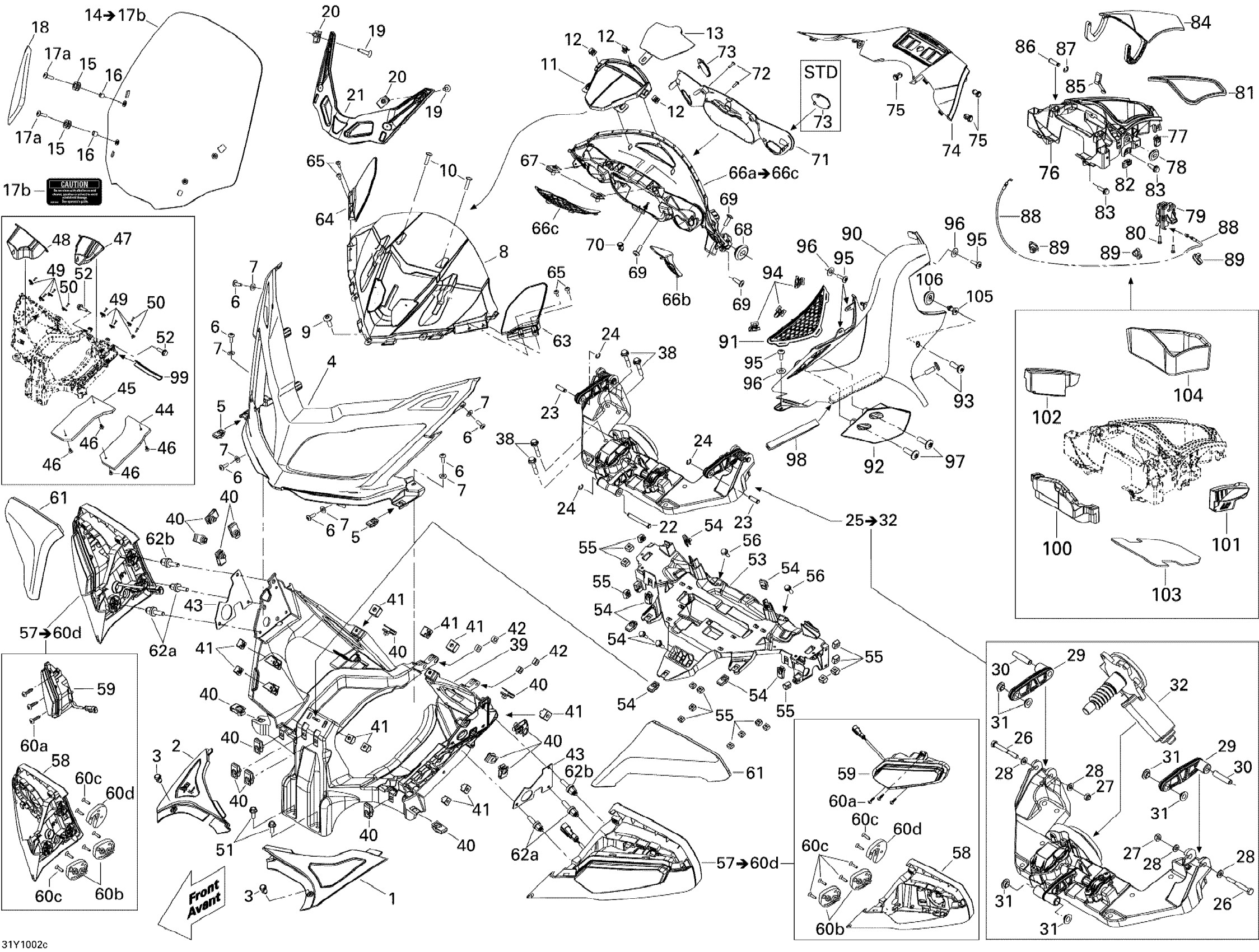

Can-Am Spyder RT, RTS Roadster SE5, 2010 09- Body And Accessories , Console Diagram
