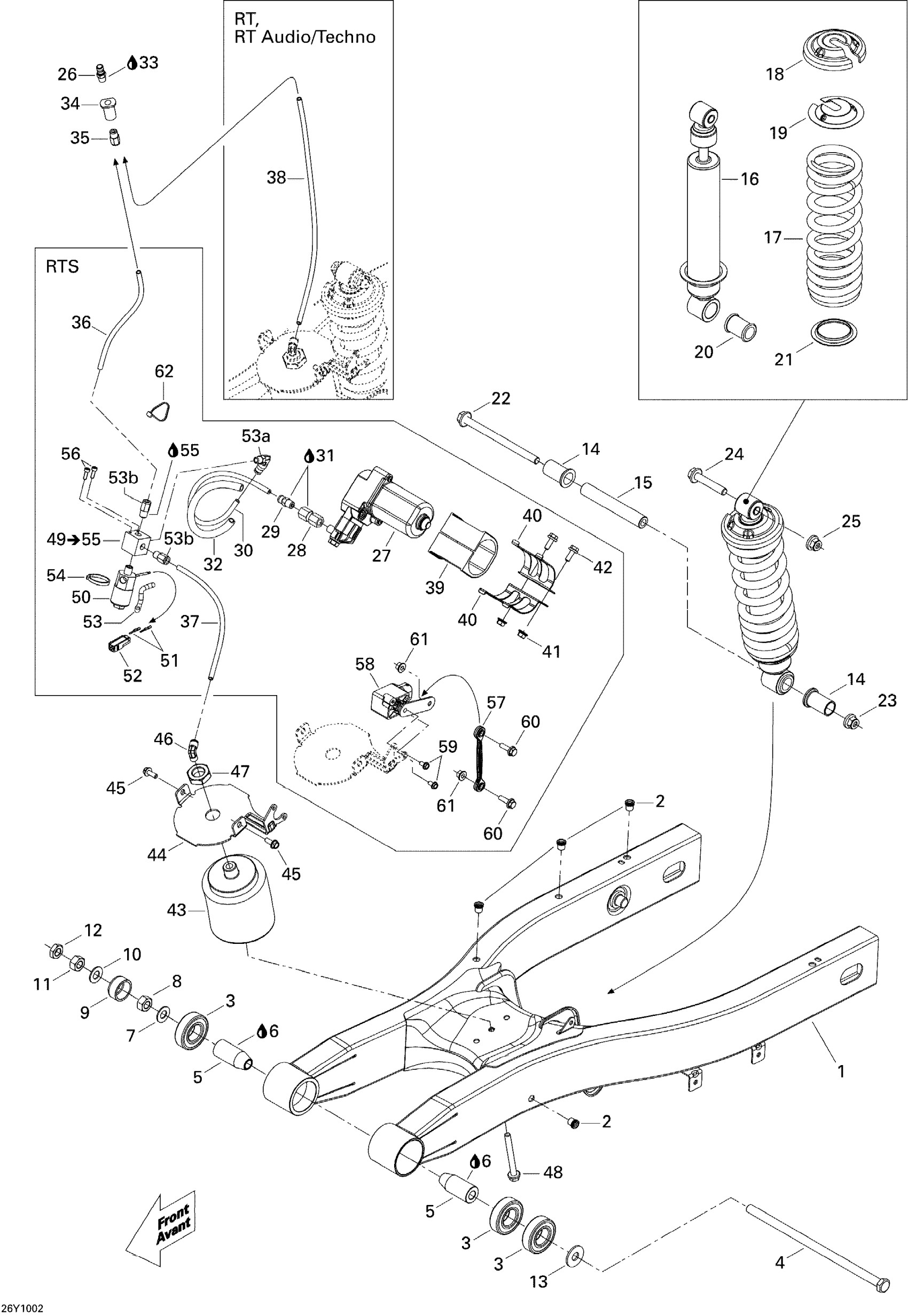

Can-Am Spyder RT, RTS Roadster SE5, 2010 08- Suspension, Rear Diagram

#

Description
Price

1

SWING ARM - Call your local BRP dealership

706000591

Unavailable

2

Insert

293450275

$12.99

3

Ball Bearing

293350115

$12.11

4

HEX. SCREW M12 X 265, SCOTCH GRIP - Call your local BRP dealership

250000367

Unavailable

5

INTERNAL BUSHING - Call your local BRP dealership

706000474

Unavailable

6

Synthetic Grease, 400 G

293550010

Unavailable

7

WASHER - Call your local BRP dealership

503191435

Unavailable

8

HEX. NUT M12 - Call your local BRP dealership

232021486

Unavailable

9

BUSHING - Call your local BRP dealership

706000486

Unavailable

10

WASHER - Call your local BRP dealership

503191435

Unavailable

11

HEX. NUT M12 - Call your local BRP dealership

232021486

Unavailable

12

HEX. JAM NUT M12 - Call your local BRP dealership

232120434

Unavailable

13

FLAT WASHER - Call your local BRP dealership

506136400

Unavailable

14

Spacer

706000410

$13.99

15

Shock Absorber Shaft

706000409

$49.99

16

Shock

706001262

$121.99

17

SPRING - Call your local BRP dealership

706000906

Unavailable

18

SPRING STOPPER - Call your local BRP dealership

503191604

Unavailable

19

CAP - Call your local BRP dealership

503191605

Unavailable

20

Urethane Cushion

503191609

$18.49

21

Spring Guide

503191872

$2.29

22

Hex. Flange Screw M10 X 140

230604034

$6.77

23

Hex. Flange Elastic Nut M10

233201434

$2.09

24

Hex. Flange Screw

207605534

$2.11

25

Hex. Flange Elastic Nut M10

233201434

$2.09

26

Air Valve

706002797

$18.49

27

Compressor

706001349

$469.99

28

Ckeck Valve

706000831

$38.99

29

Connector

706000869

$34.99

30

Hose 4.32Mm 3000Mm Long

219704415

$55.99

31

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

32

Tubing 6 Mm 3000Mm Long

219704425

$13.75

33

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

34

Pneumatic Connector

706000735

$19.49

35

Connector

706000869

$34.99

36

Hose 4.32Mm 3000Mm Long

219704415

$55.99

37

Hose 4.32Mm 3000Mm Long

219704415

$55.99

38

Hose 4.32Mm 3000Mm Long

219704415

$55.99

39

Compressor Isolator

706000631

$13.99

40

COMPRESSOR BRACKET - Call your local BRP dealership | RTS

706000661

Unavailable

41

Hex. Flange Nut M6

233061414

$1.68

42

Hex. Flange Screw M6 X 16

207661644

$0.74

43

Air Damper Kit

219800175

$291.49

44

Support Plate

706001082

$19.49

45

Hex. Forming Screw M6 X 10

210261050

$1.69

46

Elbow 90°

706001018

$28.99

47

Jam Nut M20

250100119

$4.13

48

Hex. Flange Screw M8 X 75

207687544

$7.41

49

Air Manifold Ass'y

706001175

$299.99

50

VALVE - Call your local BRP dealership

503189097

Unavailable

51

Male Terminal

515175232

$1.58

52

Male Terminal Housing, 2 Circuits

515175654

$9.12

53

TUBING 6 MM - Call your local BRP dealership

515175442

Unavailable

53a

Elbow 90°

706000928

$27.99

53b

Connector

706000869

$34.99

54

Tie-Rap 180 mm

414115200

$0.11

55

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

56

Socket Head Screw M4 X 12

205041254

$2.11

57

TIE ROD - Call your local BRP dealership | RTS

706200895

Unavailable

58

Position Sensor

710001651

$174.99

59

Hex. Flange Screw M5 X 10

207551044

$4.12

60

Hex. Flange Screw M6 X 20

207662044

$2.00

61

Hex. Flange Nut M6

233061414

$1.68

62

Tie-Rap 180 mm

414115200

$0.11
