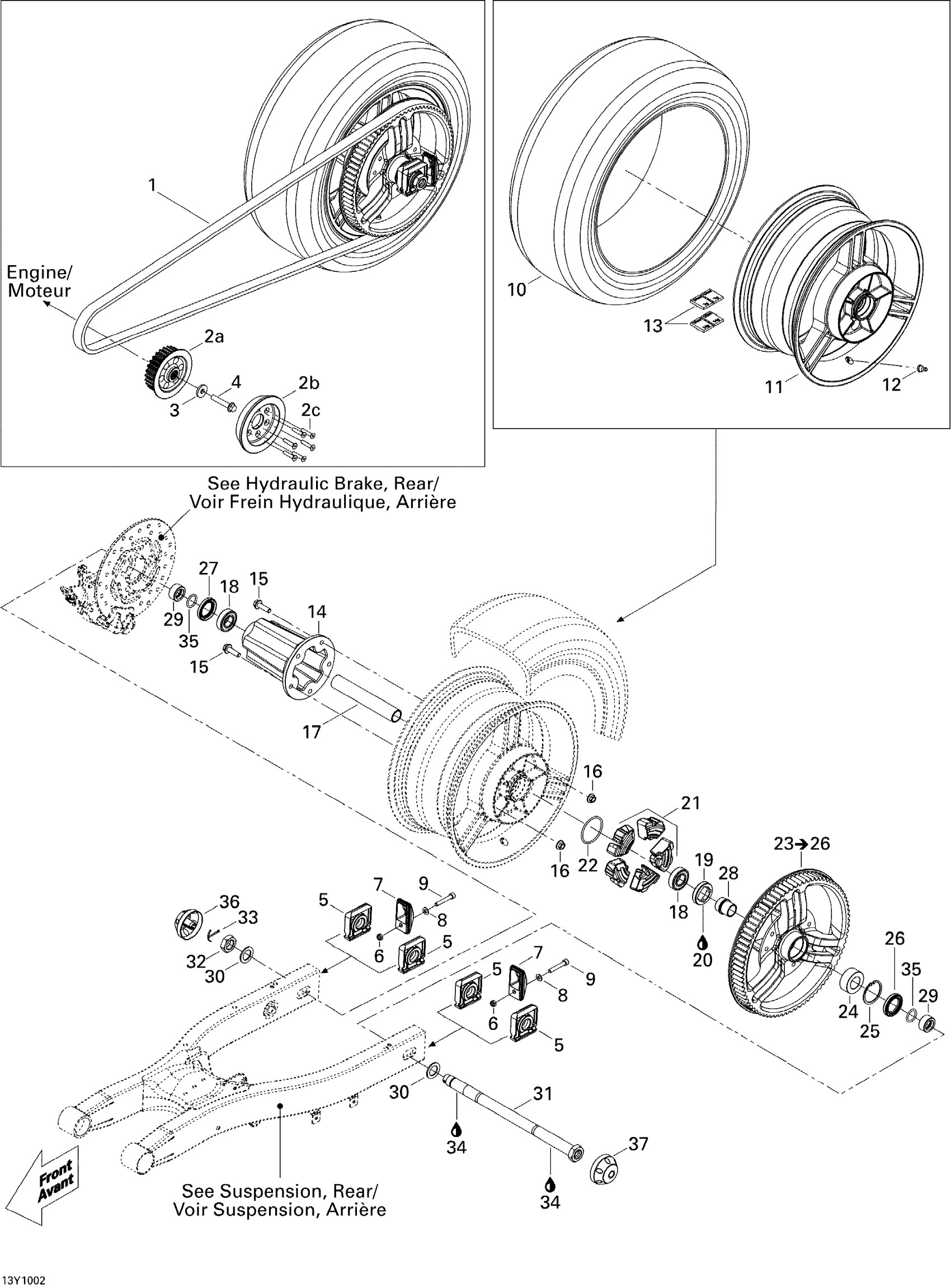

Can-Am Spyder RT, RTS Roadster SE5, 2010 08- Drive System, Rear Diagram

Drive Belt | Model-RS

705501576

$409.99

Wheel_Sprocket 28 Teeth B-356 | Model-RS

705503315

$154.99

FLYWHEEL - Call your local BRP dealership | Model-RS

705501250

Unavailable

Socket Screw M8 X 40, Scotch Grip | Model-RS

205884046

$1.89

Washer

250200052

$11.06

Hex Flange Screw DIN.6921 S.Grip

250001017

$13.22

Sliding Block

705502448

$14.82

Hex. Elastic Stop Nut M8

232581414

$0.56

Adjustment Support

705502450

$15.89

Flat Washer 8 mm

234081410

$0.83

Socket Head Screw M8 X 45

205084544

$0.90

Rear Tire 225/50R15

705503310

$201.49

RIM_15 INCH M-519 X 7 - Call your local BRP dealership | Model-RS STD

705501838

Unavailable

Rim Valve With Cap

705400193

$8.69

Self Adhesive Weight, 5G 20mm

705502106

$4.69

ADHESIVE WEIGHT, 1/2 OZ - Call your local BRP dealership

705500824

Unavailable

Rear Hub

705503032

$148.49

Hex. Flange Screw M10 X 35

207503544

$7.31

Hex. Flange Nut M10

233101414

$4.97

SPACER - Call your local BRP dealership

705500583

Unavailable

Ball Bearing

293350115

$12.11

NUT - Call your local BRP dealership

705500852

Unavailable

Loctite 243, 10 ml

293800060

$21.49

Damper

705500736

$24.49

O-Ring

293300124

$3.38

Silver - Pulley Ass'y, 79 Teeth | Model-RS STD

705502015

$509.99

Double Row Bearing

293350065

$33.99

Circlip

293370053

$9.95

Seal

293200094

$10.33

Seal

293200094

$10.33

Spacer

705500853

$23.49

SPACER - Call your local BRP dealership

705500773

Unavailable

FLAT WASHER - Call your local BRP dealership

250200093

Unavailable

Rear Wheel Axle

705501691

$99.49

Hex. Jam Nut M24

250100103

$12.12

Cotter Pin

250400047

$2.32

Synthetic Grease, 400 G

293550010

Unavailable

O-Ring

293300131

$5.29

RH Cap

705501022

$9.19

LH Cap

705501081

$9.27
