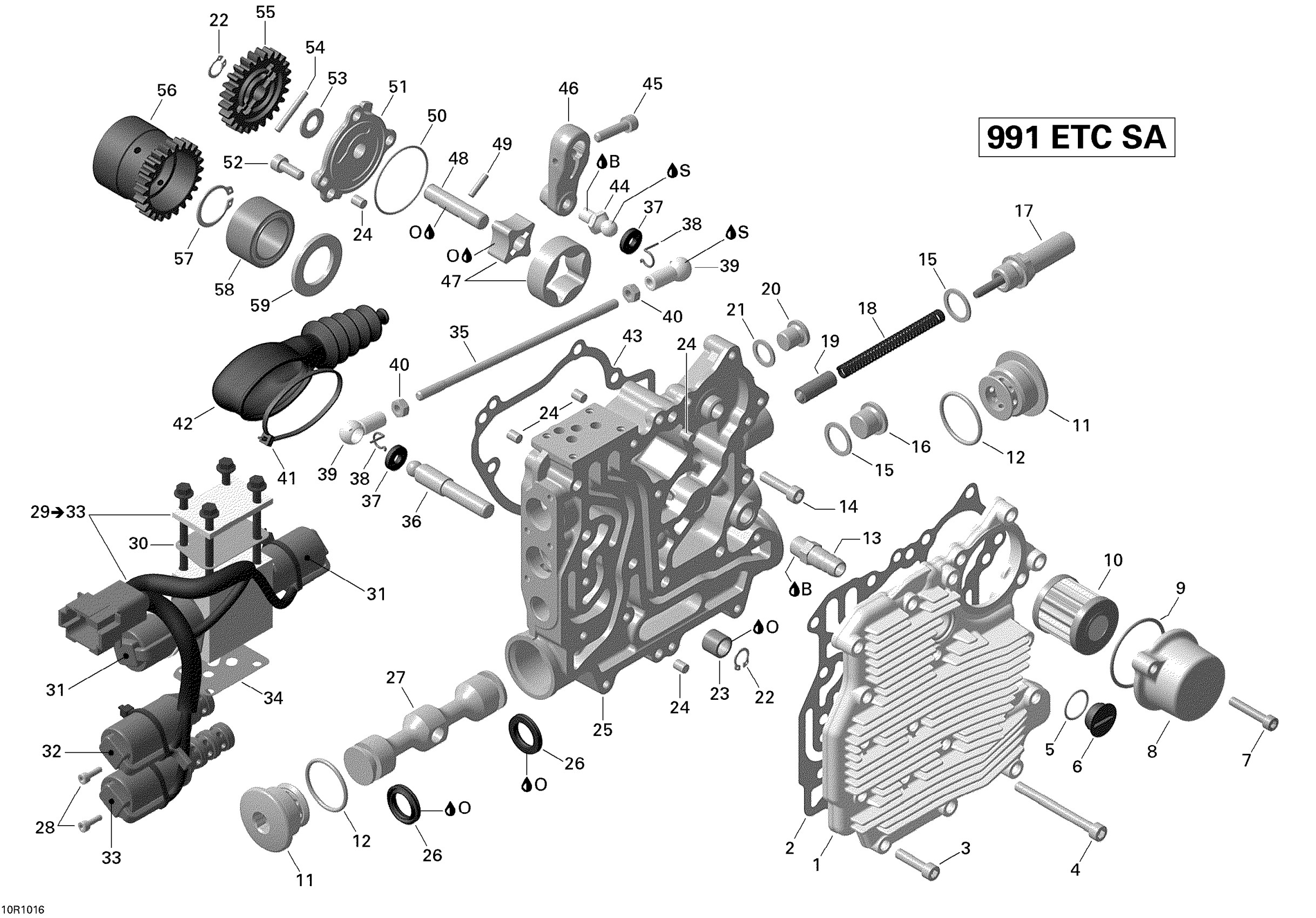

Can-Am Spyder RT, RTS Roadster SE5, 2010 05- Hydraulic Shifting Diagram

#

Description
Price

1

HYDRAULIC COVER - Call your local BRP dealership

420611500

Unavailable

2

Gasket

420430661

$20.99

3

Socket Head Screw M6 X 25

205062544

$1.15

4

Allen Screw, M6 X 65

420241261

$4.97

5

O-Ring

420250890

$3.06

6

Drain Plug

420241801

$7.41

7

Socket Head Screw M6 X 35

420241811

$1.79

8

Filter Cover Kit

219800313

$20.99

9

O-Ring

420430920

$2.75

10

Oil Filter

420256454

$13.77

11

Plug Screw

420441300

$27.49

12

O-ring

420430590

$7.65

13

NIPPLE 12/8 - Call your local BRP dealership

420840445

Unavailable

14

Socket Head Screw M6 X 25

205062544

$1.15

15

Gasket Ring

420430624

$1.89

16

Plug Screw M16 X 1.5

420240234

$14.28

17

PLUG SCREW - Call your local BRP dealership

420441335

Unavailable

18

Spring

420238845

$15.87

19

Pressure Regulating Piston

420256510

$28.49

20

Plug Screw M12

420841923

$15.89

21

Aluminum Sealing Ring

420250016

$5.39

22

Snap Ring

420245330

$1.79

23

Needle Bushing

420232031

$15.74

24

Center Pin

420232210

$8.26

25

Hydraulic Housing | Includes 1 to 7

420611496

$328.49

26

Piston Lining

420431340

$15.49

27

Hydraulic Piston

420656260

$76.49

28

SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership

420440291

Unavailable

29

Solenoid Valve Ass'y | Includes 14 to 18

420656635

$999.99

30

Gasket

420650636

$12.11

31

Solenoid Valve

420256548

$254.99

32

Solenoid Valve

420256562

$439.99

33

Solenoid Valve

420256553

$439.99

34

SOLENOID VALVE GASKET - Call your local BRP dealership

420650630

$11.49

35

Gear Shift Rod

420257890

$16.87

36

Guide Pin

420229050

$18.45

37

Gasket Ring

420260940

$5.82

38

Circlip

420245270

$7.09

39

Ball Joint

420651490

$15.87

40

Hex. Nut M6

232061414

$0.53

41

CLAMP - Call your local BRP dealership

420866717

Unavailable

42

Bellow

420460670

$14.82

43

Gasket

420431270

$18.54

44

Ball End

420651505

$16.87

45

Socket Head Screw M6 X 25

205062544

$1.15

46

Gear Shift Lever

420257881

$35.99

47

Oil Pump Rotor, Pressure

420256671

$33.99

48

Oil Pump Shaft

420620710

$17.99

49

Needle Pin

420232731

$4.01

50

O-Ring

420831160

$2.32

51

Oil Pump Cover

420612140

$27.49

52

Socket Head Screw M6 x 16

420241237

$2.22

53

THRUST WASHER - Call your local BRP dealership

420627345

Unavailable

54

Needle Pin

420232431

$4.39

55

Oil Pump Gear, 25 Teeth

420434610

$16.87

56

Oil Pump Gear, 24 Teeth

420434601

$56.99

57

CIRCLIP - Call your local BRP dealership

420945870

Unavailable

58

NEEDLE BEARING - Call your local BRP dealership

420632640

Unavailable

59

THRUST WASHER - Call your local BRP dealership

420227391

Unavailable

B

Loctite 243, 10 ml

293800060

$21.49

O

Not Available As Spare Part - Friction Washer

Unavailable

S

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
