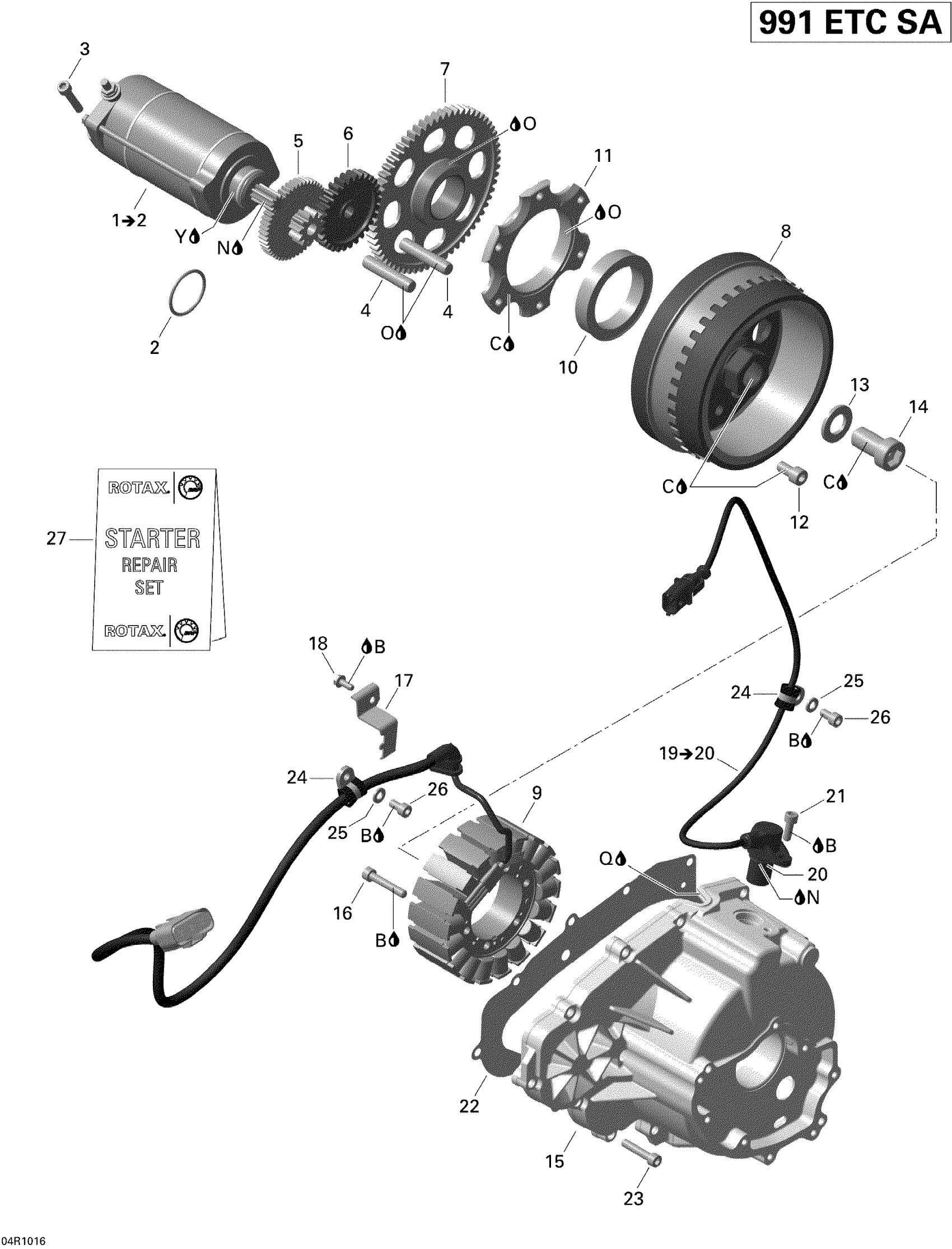

Can-Am Spyder RT, RTS Roadster SE5, 2010 03- Magneto And Electric Starter Diagram

#

Description
Price

1

Electric Starter Ass'y | Includes 1 to 2

420685965

$319.49

2

O-Ring

420250140

$8.57

3

Allen Screw M6 X 30

420840882

$4.02

4

Location Pin 10 M6x50

420229302

$3.17

5

Starter Double Gear 11/49 T

420634741

$199.99

6

Starter Intermediate Gear, 30 Teeth

420634605

$81.49

7

Gear, 64 Teeth

420634593

$154.99

8

Magneto

420685515

$730.99

9

Stator Plate

420685500

$436.49

10

Sprag Clutch

420659110

$209.99

11

Clutch Sprag Housing

420659129

$144.99

12

Socket Head Screw M8 X 16

420641594

$3.91

13

Shim

420627270

$4.12

14

Socket Head Screw M16 X 30

420241542

$8.68

15

Ignition Cover

420611315

$158.99

16

SOCKET HEAD SCREW M6 X 35, STAINLESS - Call your local BRP dealership

420241813

Unavailable

17

INNER CABLE COVER - Call your local BRP dealership

420251165

Unavailable

18

Taptite Screw M5 x 12

420941935

$1.59

19

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

20

O-Ring

420431580

$14.83

21

Socket Head Screw M6 x 16

420241237

$2.22

22

Gasket

420650341

$20.49

23

Socket Head Screw M6 X 30

205063044

$1.69

24

Open Clamp

414176000

$1.99

25

FLAT WASHER - Call your local BRP dealership

420827961

Unavailable

26

Socket Head Screw M6 X 11.5

420840379

$5.90

27

STARTER BRUSH KIT - Call your local BRP dealership

420294354

Unavailable

B

Loctite 243, 10 ml

293800060

$21.49

C

Sealant Loctite 648

219703000

$45.99

N

Dow Corning 111, 150 g

413707000

$59.99

O

Not Available As Spare Part - Friction Washer

Unavailable

Q

Silicone Sealant 51388, 300 ml

296000309

$36.99

Y

Was 420297616 Klueber Grease, 60g

219704464

$23.99
