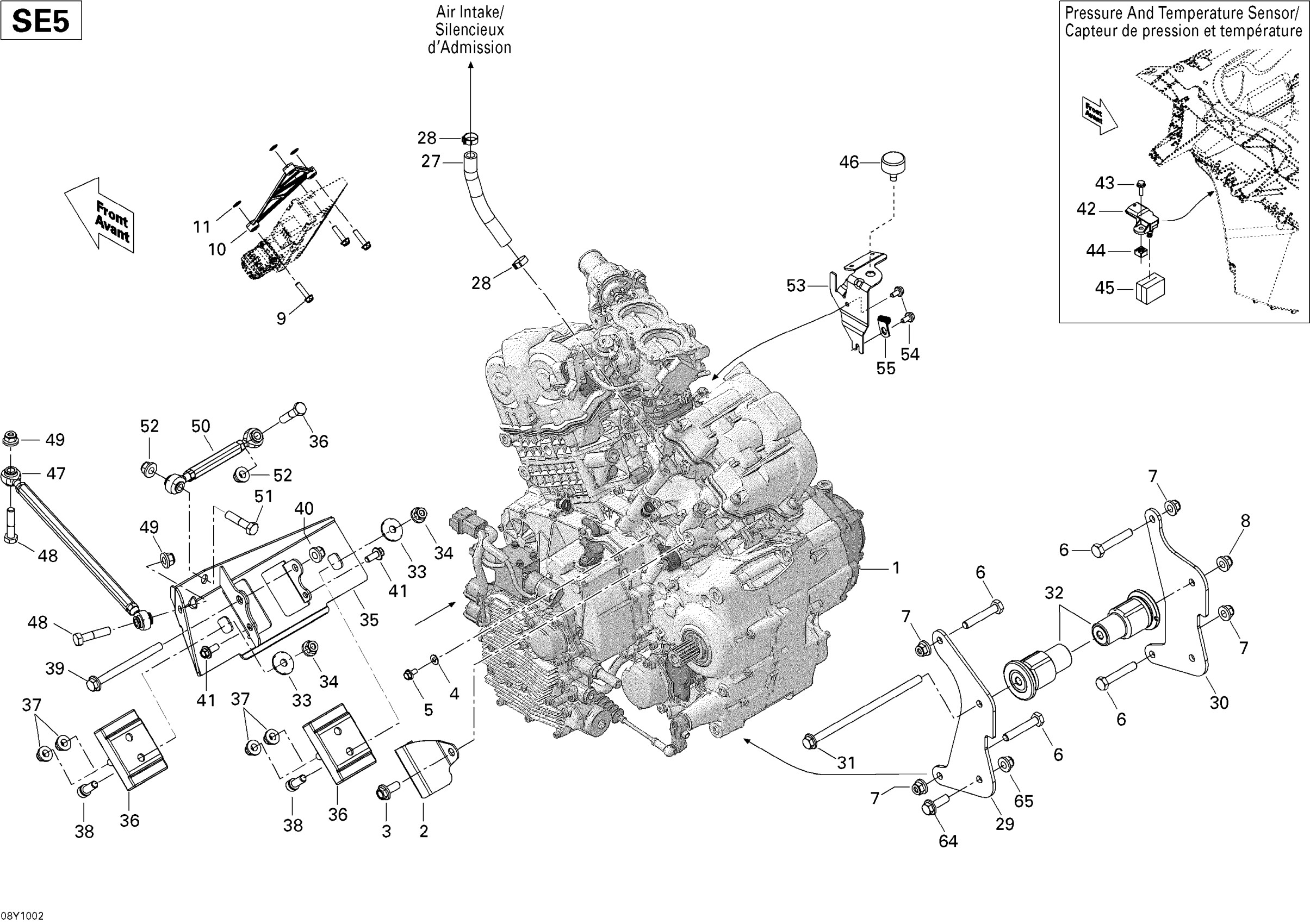

Can-Am Spyder RT, RTS Roadster SE5, 2010 01- Engine , SE5 Electronic Diagram

#

Description
Price

1

REBUILT - SHORT BLOCK SE5

421000709

Unavailable

2

DEFLECTOR - Call your local BRP dealership

707000845

Unavailable

3

Hex. Flange Screw M6 X 12

207661244

$2.11

4

Flat Washer

224061121

$0.53

5

Hex. Flange Screw M10 X 25

207602544

$1.69

6

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

7

Hex. Flange Elastic Nut M10

233201436

$2.11

8

Hex. Flange Elastic Nut M10

233201436

$2.11

9

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

10

Spacer

710001886

Unavailable

11

Push Nut

732610072

$2.19

27

HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership

219704436

Unavailable

28

Oetiker Clamp

293650186

$3.99

29

LH SUPPORT - Call your local BRP dealership

707000510

Unavailable

30

RH SUPPORT - Call your local BRP dealership

707000512

Unavailable

31

HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership

250000286

Unavailable

32

RUBBER MOUNT - Call your local BRP dealership

707000814

Unavailable

33

Lock Washer

512056700

$3.17

34

Hex. Flange Elastic Nut M10

233201436

$2.11

35

Front Engine Support

707000823

Unavailable

36

RUBBER MOUNT - Call your local BRP dealership

707000815

Unavailable

37

Hex. Flange Elastic Nut M10

233201436

$2.11

38

Socket Head Screw M10 X 25

205002544

$1.48

39

Hex. Flange Screw M10 X 125

230602546

$7.41

40

Hex. Flange Elastic Nut M10

233201436

$2.11

41

Hex. Flange Screw M8 X 20

207682044

$1.15

42

Pressure And Temperature Sensor

707000995

$88.99

43

Hex. Flange Screw M6 X 20

207662084

$1.69

44

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

45

Foam Filter

707000586

$5.50

46

Rubber Stopper

708000758

$12.99

47

TIE ROD ASS'Y - Call your local BRP dealership

707000816

Unavailable

48

Hex. Screw M10 X 45

207004544

$1.69

49

Hex. Flange Elastic Nut M10

233201436

$2.11

50

Rod Ass'y

707000817

Unavailable

51

Hex. Screw M10 X 45

207004544

$1.69

52

Hex. Flange Elastic Nut M10

233201436

$2.11

53

Intake Support

707000756

$11.07

54

Hex. Flange Screw M6 X 12

207661244

$2.11

55

Bracket

415052400

$4.39

64

Hex. Flange Screw M10 X 25

207602544

$1.69

65

Hex. Flange Elastic Nut M10

233201436

$2.11
