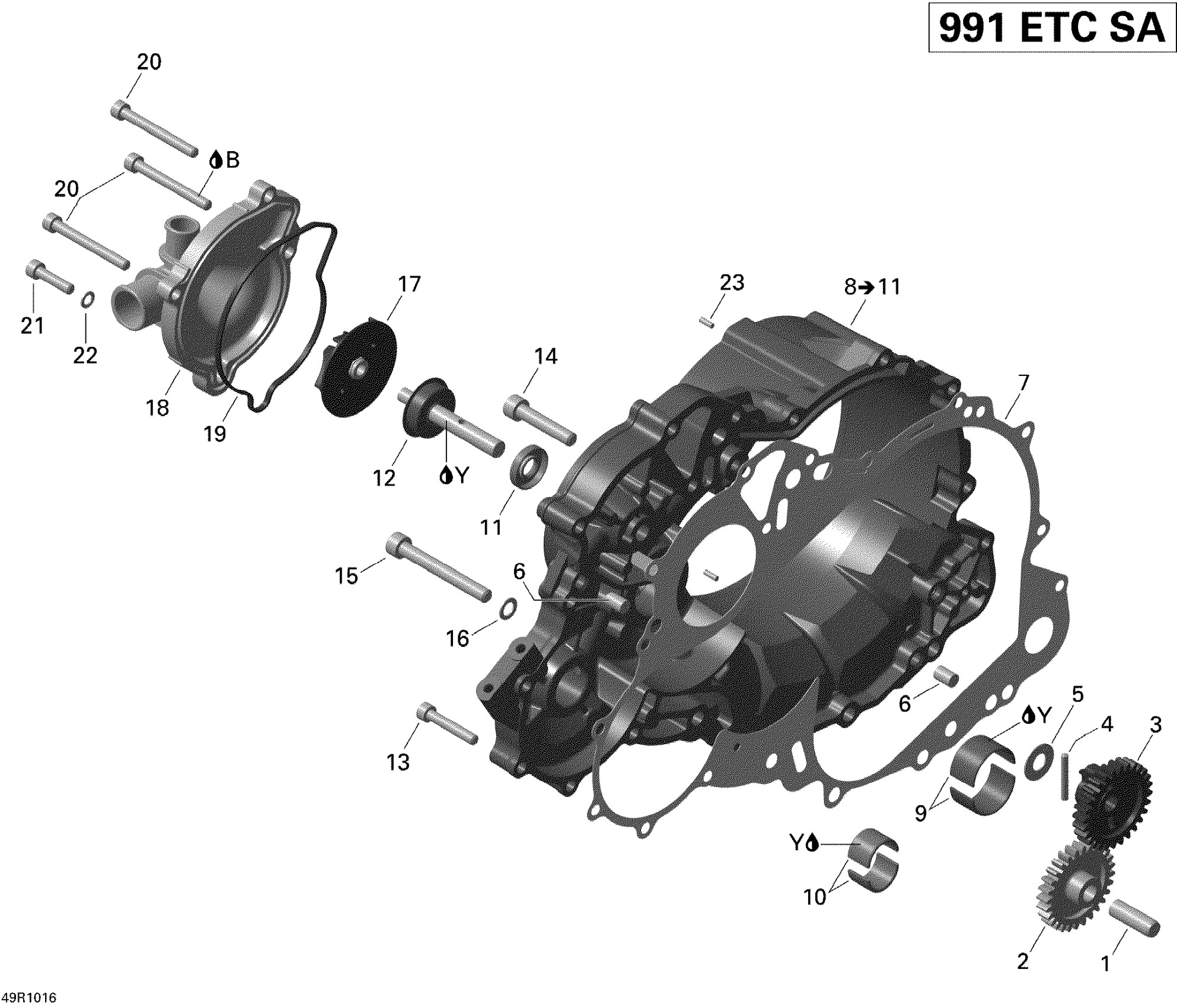

Can-Am Spyder RT, RTS Roadster SE5, 2010 01- Clutch Cover And Water Pump Diagram

#

Description
Price

1

PIN, M6 X 50 - Call your local BRP dealership

420929930

Unavailable

2

INTERMEDIATE GEAR WATER PUMP - Call your local BRP dealership

420634500

Unavailable

3

Gear Water Pump

420634490

$31.99

4

Needle Pin

420232431

$4.39

5

THRUST WASHER - Call your local BRP dealership

420227685

Unavailable

6

Center Pin 8 X 12

420632010

$4.01

7

Gasket

420650330

$17.04

8

Clutch Cover Ass'y | Includes 8 to 11

420610158

$328.49

9

Plain Bearing, Red

420233791

$24.49

9

Half Bushing

420233794

$29.49

9

Plain Bearing, Yellow

420233793

$26.49

10

Plain Bearing, Blue

420233780

$23.99

11

Oil Seal

420631460

$13.75

12

Water Pump Shaft

420220414

$49.99

13

Socket Head Screw M6 X 35

420241811

$1.79

14

Allen Screw M8 X 40

420840682

$3.91

15

SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership

420841841

Unavailable

16

Sealing Ring

420950141

$2.00

17

Impeller

420222501

$21.99

18

WATER PUMP HOUSING - Call your local BRP dealership

420222514

$60.99

19

Seal Ring

420650240

$9.48

20

Allen Screw M6 X 55

420240332

$5.35

21

Socket Head Screw M6 X 25

205062544

$1.15

22

Seal Washer

420230415

$1.79

23

Needle

420232992

$4.33

B

Loctite 243, 10 ml

293800060

$21.49

Y

Was 420297616 Klueber Grease, 60g

219704464

$23.99
