Description

Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

2

Tie-Rap 180 mm

414115200

$0.11

2

Tie-Rap 173 mm

293750009

$1.04

2

Tie Wrap 368 mm

293750008

$1.04

3

Clip

414227300

$1.67

4

Clamp

293650082

$3.99

5

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

6

Bracket

415052400

$4.39

7

Tie Rap Mount

293750044

$2.49

8

Clip

270000141

$11.49

9

Pop Rivet 3/16"

390402400

$0.35

10

Trim 1000Mm Long

219704354

$15.99

11

Brake Pressure Switch Ass'y

710001379

$43.49

12

Clip

710001343

$9.09

13

Pop Rivet

293150150

$2.40

14

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

710000830

$23.49

15

Was 710000483 Heat Shrink Tubing

219704447

$78.99

16

Open Barrel | STD Models

710000518

$11.12

17

Battery, 12 Volts, 21 Amperes

410922962

$194.99

18

Battery Bolt Kit

250000282

$7.29

19

Battery Strap

515176044

$18.49

20

LH Tail Light Ass'y

515176850

$59.49

21

Housing

710000568

$11.12

22

Male Terminal | Europe Models

409012900

$3.28

23

Wire Seal

278001013

$3.28

24

Bulb

520000758

$9.10

25

RH Tail Light Ass'y

515176849

$59.49

26

Housing

710000568

$11.12

27

Male Terminal | Europe Models

409012900

$3.28

28

Wire Seal

278001013

$3.28

29

Bulb

520000758

$9.10

30

Torx Truss Screw M6 X 16

250000721

$1.69

31

Oxygen Sensor

707600557

$164.99

32

Speed Sensor

706202361

$164.99

33

Hexagonal Head Screw

210262050

$2.11

34

Shim

710002024

$5.66

35

Shim

710002023

$2.85

36

TONE WHEEL - Call your local BRP dealership

705600573

Unavailable

37

SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership

207551034

Unavailable

38

PROTECTOR - Call your local BRP dealership

710001035

Unavailable

39

Torx Truss Screw M6 X 30

250000843

$2.11

40

GROUND HARNESS - Call your local BRP dealership

710001165

Unavailable

41

Lock Washer Serrated M6

250200041

$1.15

42

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

43

BUSHING - Call your local BRP dealership

293900054

Unavailable

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

45

Grommet

293720084

$6.09

46

Passenger Detection Switch

710008103

$76.99

47

Torx Screw M6 X 16

250000755

$0.87

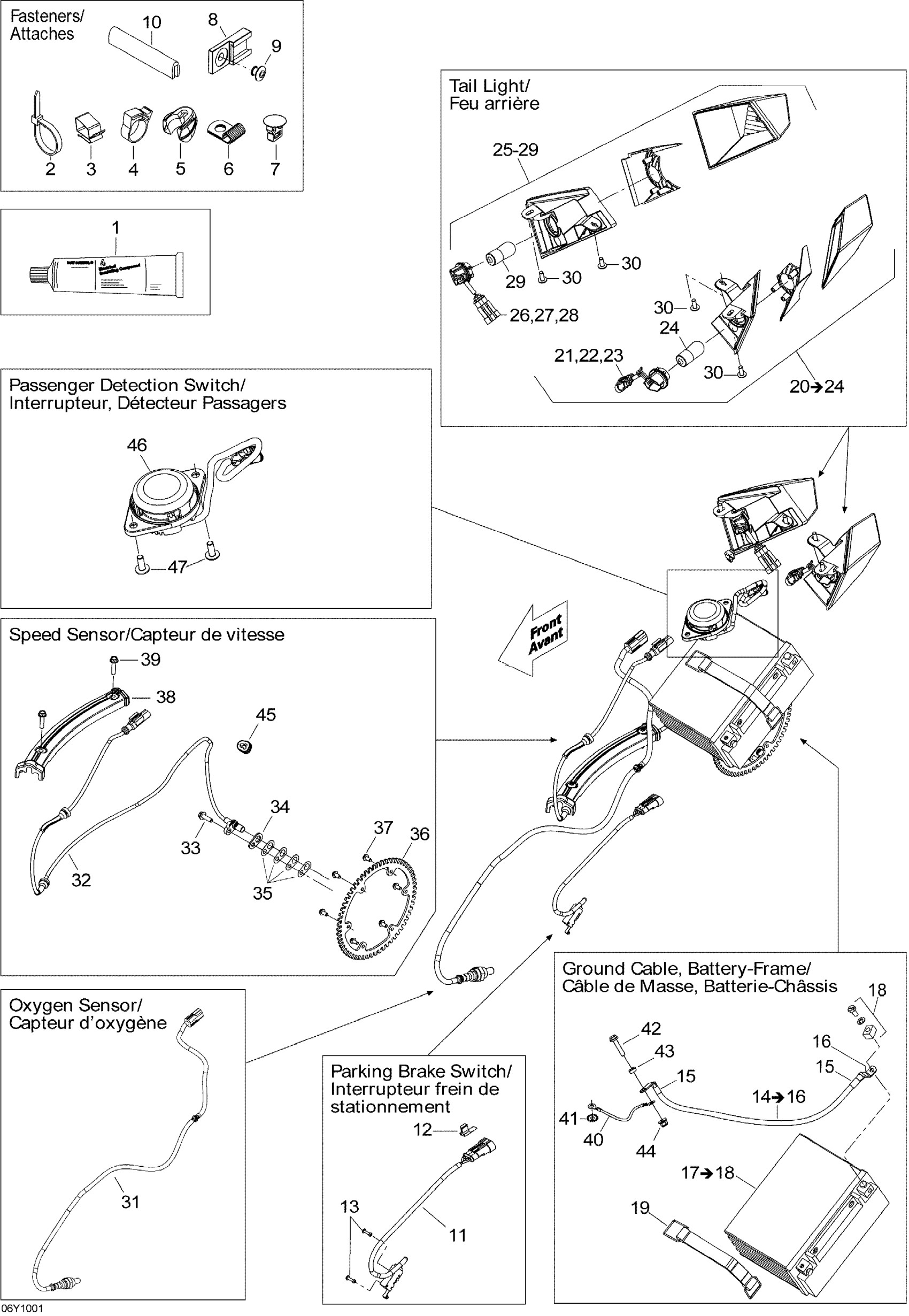

Can-Am Spyder RS Roadster SM5, Late Production 2010 10- Electrical Accessories, Rear Diagram

Was 293550004 Dielectric Grease, 150 g

Tie-Rap 180 mm

Tie-Rap 173 mm

Tie Wrap 368 mm

Clip

Clamp

WIRE BRACKET - Call your local BRP dealership

Bracket

Tie Rap Mount

Clip

Pop Rivet 3/16"

Trim 1000Mm Long

Brake Pressure Switch Ass'y

Clip

Pop Rivet

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

Was 710000483 Heat Shrink Tubing

Open Barrel | STD Models

Battery, 12 Volts, 21 Amperes

Battery Bolt Kit

Battery Strap

LH Tail Light Ass'y

Housing

Male Terminal | Europe Models

Wire Seal

Bulb

RH Tail Light Ass'y

Housing

Male Terminal | Europe Models

Wire Seal

Bulb

Torx Truss Screw M6 X 16

Oxygen Sensor

Speed Sensor

Hexagonal Head Screw

Shim

Shim

TONE WHEEL - Call your local BRP dealership

SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership

PROTECTOR - Call your local BRP dealership

Torx Truss Screw M6 X 30

GROUND HARNESS - Call your local BRP dealership

Lock Washer Serrated M6

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

BUSHING - Call your local BRP dealership

Hex. Flange Elastic Nut M6 x 1.0

Grommet

Passenger Detection Switch

Torx Screw M6 X 16
