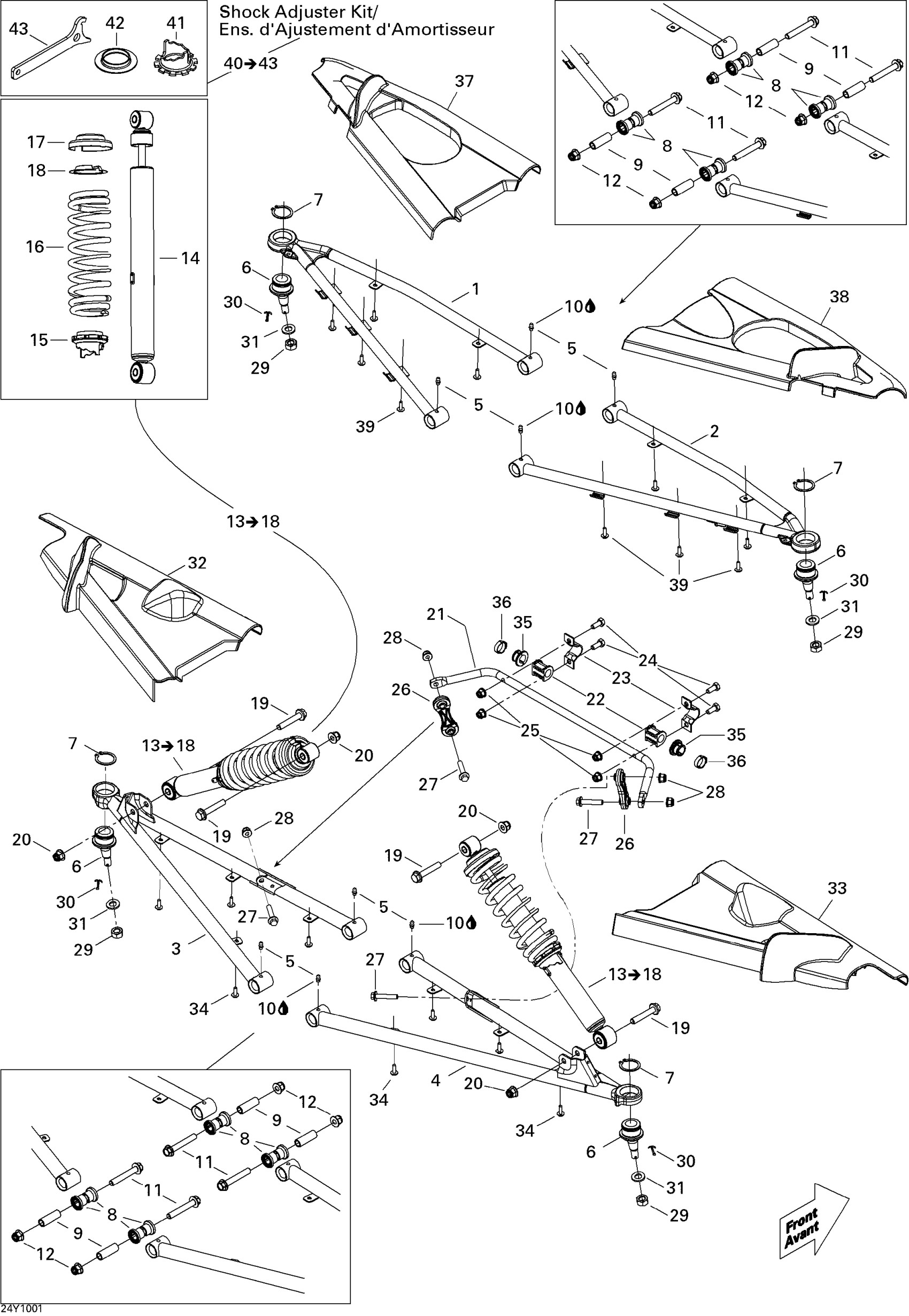

Can-Am Spyder RS Roadster SM5, Late Production 2010 07- Suspension, Front Diagram

#

Description
Price

1

LH ARM - Call your local BRP dealership

706201140

Unavailable

2

RH ARM - Call your local BRP dealership

706201141

Unavailable

3

LH LOWER ARM - Call your local BRP dealership

505071697

Unavailable

4

RH LOWER ARM - Call your local BRP dealership

505071703

Unavailable

5

Grease Fitting

408200700

$3.49

6

Ball Joint

505072362

$69.99

7

Circlip

293370035

$2.64

8

Bushing

706200181

$3.14

9

Bushing

706200618

$17.99

10

Synthetic Grease, 400 G

293550010

Unavailable

11

Hex. Flange Screw M10 X 65

207606536

$4.44

12

Hex. Flange Elastic Nut M10

233201434

$2.09

13

Not Available As Spare Part - Friction Washer

Unavailable

14

FRONT SHOCK - Call your local BRP dealership

706201150

Unavailable

15

Shock Adjuster Kit

219800217

$56.99

16

FULL MOON SPRING - Call your local BRP dealership

505071707

Unavailable

17

Spring Stopper

706200881

$12.99

18

Cap

706200785

$4.69

19

Hex. Flange Screw

207605534

$2.11

20

Hex. Flange Elastic Nut M10

233201434

$2.09

21

SWAY BAR - Call your local BRP dealership

706200772

Unavailable

22

TORSION BUSHING - Call your local BRP dealership

505072287

Unavailable

23

CLAMP - Call your local BRP dealership

506095800

Unavailable

24

HEX. CAP SCREW M8 X 20 - Call your local BRP dealership

207182034

Unavailable

25

Hex. Flange Elastic Nut M8

233281434

$2.11

26

Tie Rod

706200671

$20.99

27

Hex. Flange Screw M8 X 40

207684034

$2.11

28

Hex. Flange Elastic Nut M8

233281434

$2.11

29

Nut M12

250100099

$2.09

30

Cotter Pin

250400035

$2.11

31

Hardened Washer

706200281

$2.85

32

LH LOWER DEFLECTOR - Call your local BRP dealership

706200884

Unavailable

33

RH LOWER DEFLECTOR - Call your local BRP dealership

706200885

Unavailable

34

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

35

SWAY BAR STOPPER - Call your local BRP dealership

706201033

Unavailable

36

Oetiker Clamp

293650012

$7.49

37

LH UPPER DEFLECTOR - Call your local BRP dealership

706200886

Unavailable

38

RH UPPER DEFLECTOR - Call your local BRP dealership

706200887

Unavailable

39

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

40

Shock Adjuster Kit

219800217

$56.99

41

ADJUSTER RING - Call your local BRP dealership

706001061

Unavailable

42

RING PROTECTOR - Call your local BRP dealership

706001062

Unavailable

43

Adjustment Wrench

529000059

$17.99
