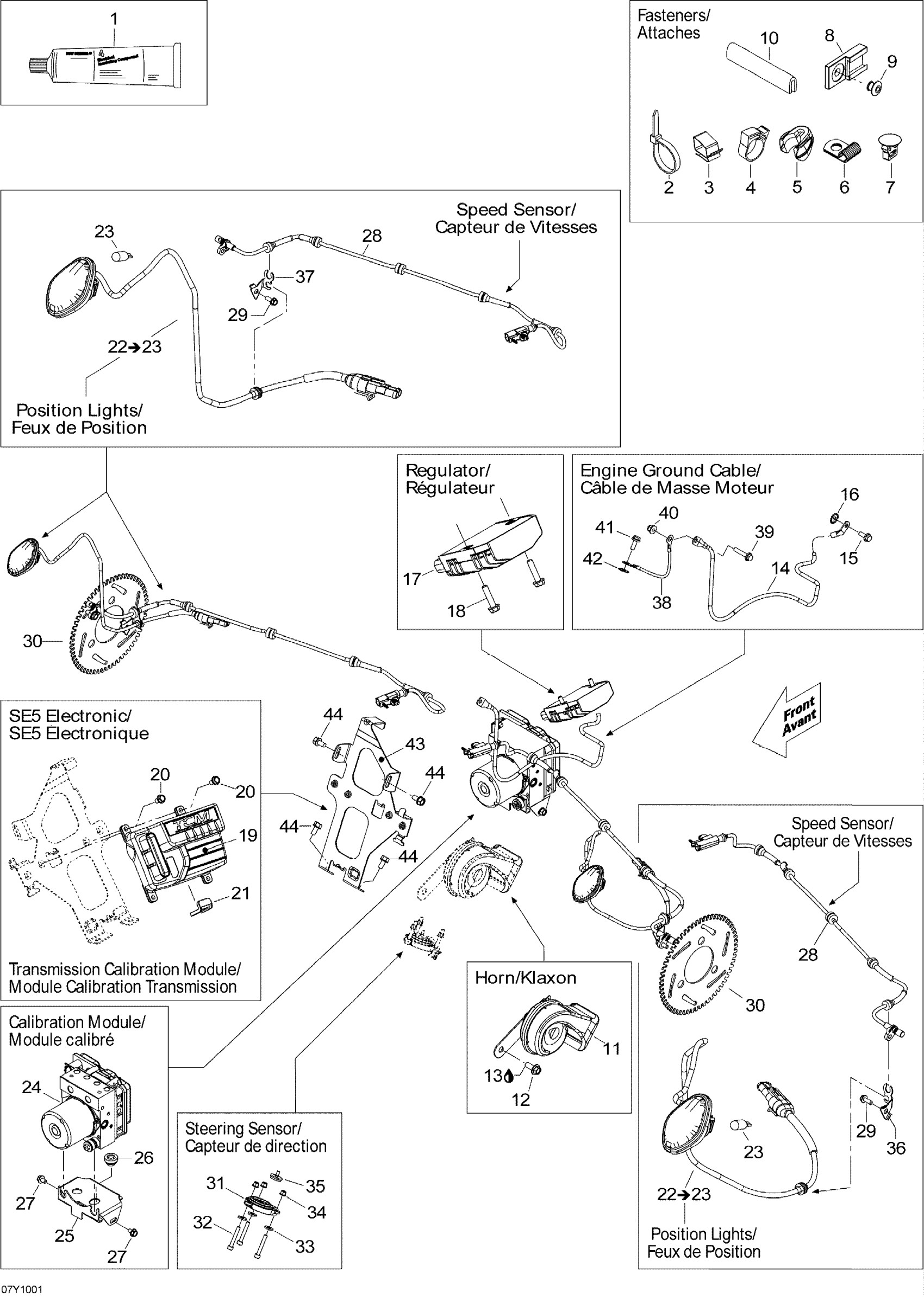

Can-Am Spyder RS Roadster SE5, Late Production 2010 10- Electrical Accessories, Front SE5 Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

2

Tie-Rap 180 mm

414115200

$0.11

2

Tie-Rap 173 mm

293750009

$1.04

2

Tie Wrap 368 mm

293750008

$1.04

3

Clip

414227300

$1.67

4

Clamp

293650082

$3.99

5

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

6

Bracket

415052400

$4.39

7

Tie Rap Mount

293750044

$2.49

8

Clip

270000141

$11.49

9

Pop Rivet 3/16"

390402400

$0.35

10

Trim 1000Mm Long

219704354

$15.99

11

HORN - Call your local BRP dealership

710004229

$28.99

12

Hex. Flange Screw M8 X 20

207682044

$1.15

13

Loctite 243, 10 ml

293800060

$21.49

14

ENGINE GROUND CABLE - Call your local BRP dealership

710000177

Unavailable

15

Hex. Flange Screw M6 X 16

207661644

$0.74

16

Lock Washer Serrated M6

250200041

$1.15

17

REGULATOR KIT - Call your local BRP dealership

219800252

Unavailable

18

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

19

TCM MODULE - Call your local BRP dealership | Semi-Automatic

710001946

Unavailable

20

Hex. Flange Screw M6 X 12

210261250

$1.90

21

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

22

Position Light | Includes 22 to 23

710001478

$59.49

23

BULB 5W. - Call your local BRP dealership

410922994

Unavailable

24

Calibration Module

219800098

$1,529.99

25

MODULE BRACKET - Call your local BRP dealership

705600602

Unavailable

26

STOPPER - Call your local BRP dealership

710000938

Unavailable

27

Hex. Flange Screw M6 X 12

210261250

$1.90

28

SPEED SENSOR - Call your local BRP dealership | Includes 25a to 25b

706200495

Unavailable

29

Hex. Flange Screw M6 X 16

210261650

$1.67

30

TONE WHEEL - Call your local BRP dealership

705600436

Unavailable

31

Steering Position Sensor

709400363

$609.99

32

Socket Head Screw M5 X 35

205053588

$1.90

33

Flat Washer M5

234051410

$0.53

34

Hex. Flange Elastic Nut M5

233251414

$1.04

35

ENCODER MAGNET - Call your local BRP dealership

709400362

Unavailable

36

LH WIRE SUPPORT - Call your local BRP dealership

710002019

Unavailable

37

RH WIRE SUPPORT - Call your local BRP dealership

710002018

Unavailable

38

GROUND HARNESS - Call your local BRP dealership

710001165

Unavailable

39

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

41

Hex. Flange Screw M6 X 16

207661644

$0.74

42

Lock Washer Serrated M6

250200041

$1.15

43

MODULE SUPPORT - Call your local BRP dealership

705202002

Unavailable

44

Hex. Flange Screw M6 X 12

210261250

$1.90
