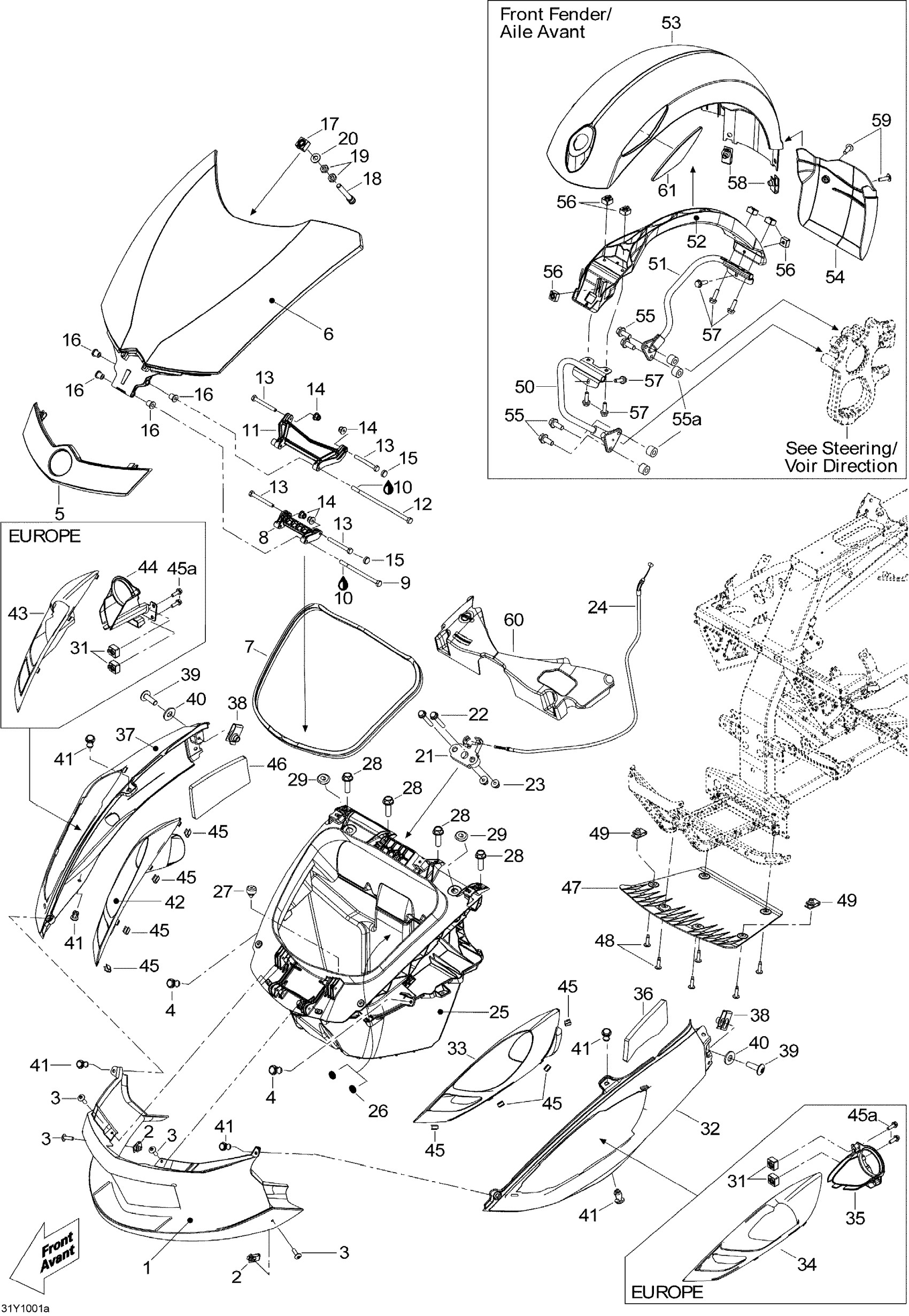

Can-Am Spyder RS Roadster SE5, Late Production 2010 09- Body And Accessories Front Diagram

#

Description
Price

1

Steel Black Bumper Cover | Model-RS STD

705006270

$294.99

2

Panel Nut M6 X 1.0

250100198

$2.11

3

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

4

Tuflok Plastic Rivet

293150230

$1.47

5

FRONT FASCIA, FULL MOON - Call your local BRP dealership | Full Moon

705002549

Unavailable

5

FRONT FASCIA, RED - Call your local BRP dealership | Red

705003188

Unavailable

5

FRONT FASCIA, QUANTUM BLUE - Call your local BRP dealership | Quantum Blue

705003874

Unavailable

5

Pearl White Front Fascia | Model-Vegas White Pearl

705003875

$104.99

5

Front Fascia, Metallic Magnesium | RS, Magnesium Model

705004571

$119.99

6

Hood | Full Moon

705009068

$539.99

6

HOOD - Call your local BRP dealership | Red

705009069

Unavailable

6

HOOD - Call your local BRP dealership | Quantum Blue

705009070

Unavailable

6

Vegas White Pearl, Hood | Model-Vegas White Pearl

705007988

$579.99

6

HOOD - Call your local BRP dealership | RS, Magnesium Model

705009062

Unavailable

7

Neoprene Seal 3000Mm Long

219704371

$51.99

8

FRONT ARM - Call your local BRP dealership

269501482

$19.99

9

Hex. Screw M6 X 100

230060060

$7.41

10

Loctite 243, 10 ml

293800060

$21.49

11

REAR ARM - Call your local BRP dealership

269501481

Unavailable

12

Hex. Screw M6 X 150

230065060

$10.16

13

Hex. Screw M6 X 55

207065544

$2.11

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

16

Sleeve

269500706

$4.65

17

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

18

Lug

705002223

$25.99

19

Hex. Jam Nut M8

232180600

$0.67

20

Flat Washer 8 mm

234081410

$0.83

21

Latch

705007379

$28.99

22

Hex. Flange Screw M6 X 35

207663544

$0.90

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

24

Hood Cable

517303484

$45.99

25

Front Storage Compartment

705005908

$429.99

26

Dual Lock Velcro Washer 3/4"

293740028

$4.19

27

Rubber Bumper

293830005

$8.09

28

Hexagonal Head Screw

210262050

$2.11

29

Oval Washer

705005156

$4.97

31

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

32

LH Front Panel, Black

705002561

Unavailable

32

LH Front Pannel, Magnesium | RS, Magnesium Model

705005557

$319.99

32

PANEL_BODY FL B-313 - Call your local BRP dealership | Pearl White

705006882

$319.99

34

LH HEADLAMP BEZEL - Call your local BRP dealership | Model-Australie, Brezil, Europe

705001469

Unavailable

33

LH Air Duct | Model-North America

705001541

$89.99

35

BLACK LH HEADLAMP SUPPORT - Call your local BRP dealership | Model-Australie, Brezil, Europe

705004796

Unavailable

36

LH FRONT PANEL FOAM - Call your local BRP dealership

518325515

Unavailable

37

RH FRONT PANEL, BLACK - Call your local BRP dealership

705002562

Unavailable

37

RH Front Bare Panel | Model-Cognac Brezil

705005591

$88.99

38

Panel Nut M6 X 1.0

250100198

$2.11

39

Torx Truss Screw M6 X 20

250000350

$5.29

40

Plastic Washer

705003207

$0.80

41

Tuflok Plastic Rivet

293150230

$1.47

43

RH Headlamp Bezel | Model-Australie, Brezil, Europe

705001470

$33.99

42

RH Air Duct | Model-North America

705001543

$89.99

45

Clip

414479100

$1.90

44

BLACK RH HEADLAMP SUPPORT - Call your local BRP dealership | Model-Australie, Brezil, Europe

705004797

Unavailable

45a

Hex. Flange Screw M8 X 25

207682544

$1.35

46

RH FRONT PANEL FOAM - Call your local BRP dealership

518325516

Unavailable

47

Skid Plate

705002837

$68.99

48

Torx Screw M6 X 25 | XT Models

250000728

$4.44

49

Panel Nut M6 X 1.0

250100198

$2.11

50

LH Painted Fender Front Support | Model-RS STD

705010102

$86.99

51

LH Rear Fender Support | Model-RS STD

705010740

$83.99

52

Central Front Fender Support | Model-RS STD

705002389

$62.99

53

LH Front Fender, Full Moon | Full Moon

705002555

Unavailable

53

LH FRONT FENDER, RED - Call your local BRP dealership | Red

705003419

Unavailable

53

LH FRONT FENDER, QUANTUM BLUE - Call your local BRP dealership | Quantum Blue

705003901

Unavailable

53

Pearl White LH Front Fender | Model-RS STD Vegas White Pearl

705003904

$204.99

53

LH Front Fender, Metallic Magnesium | RS, Magnesium Model

705004613

$204.99

54

LH Mudguard | Model-RS STD

705001767

$51.99

50

RH Painted Fender Front Support | Model-RS STD

705010103

$86.99

51

Right Fender Rear Support | Model-RS STD

705010741

$83.99

55

HEX. FLANGED SCREW S.GRIP M8 X 35 - Call your local BRP dealership

207583534

Unavailable

55a

BUSHING - Call your local BRP dealership

705600837

Unavailable

56

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

57

Hex. Flange Screw M6 X 20

207662084

$1.69

53

RH Front Fender, Full Moon | Full Moon

705002558

Unavailable

53

RH FRONT FENDER, RED - Call your local BRP dealership | Red

705003420

Unavailable

53

FENDER FR B-308 - Call your local BRP dealership | Quantum Blue

705003902

Unavailable

53

Pearl White RH Front Fender | Model-RS STD Vegas White Pearl

705003903

$309.99

53

RH Front Fender, Metallic Magnesium | RS, Magnesium Model

705004614

$309.99

58

Panel Nut M6 X 1.0

250100198

$2.11

54

RH Mudguard | Model-RS STD

705001768

$51.99

59

Torx Truss Screw M6 X 20

250000350

$5.29

60

SERVICE CENTER - Call your local BRP dealership

705003025

Unavailable

61

Amber, Lateral Reflector

705002423

$15.49
