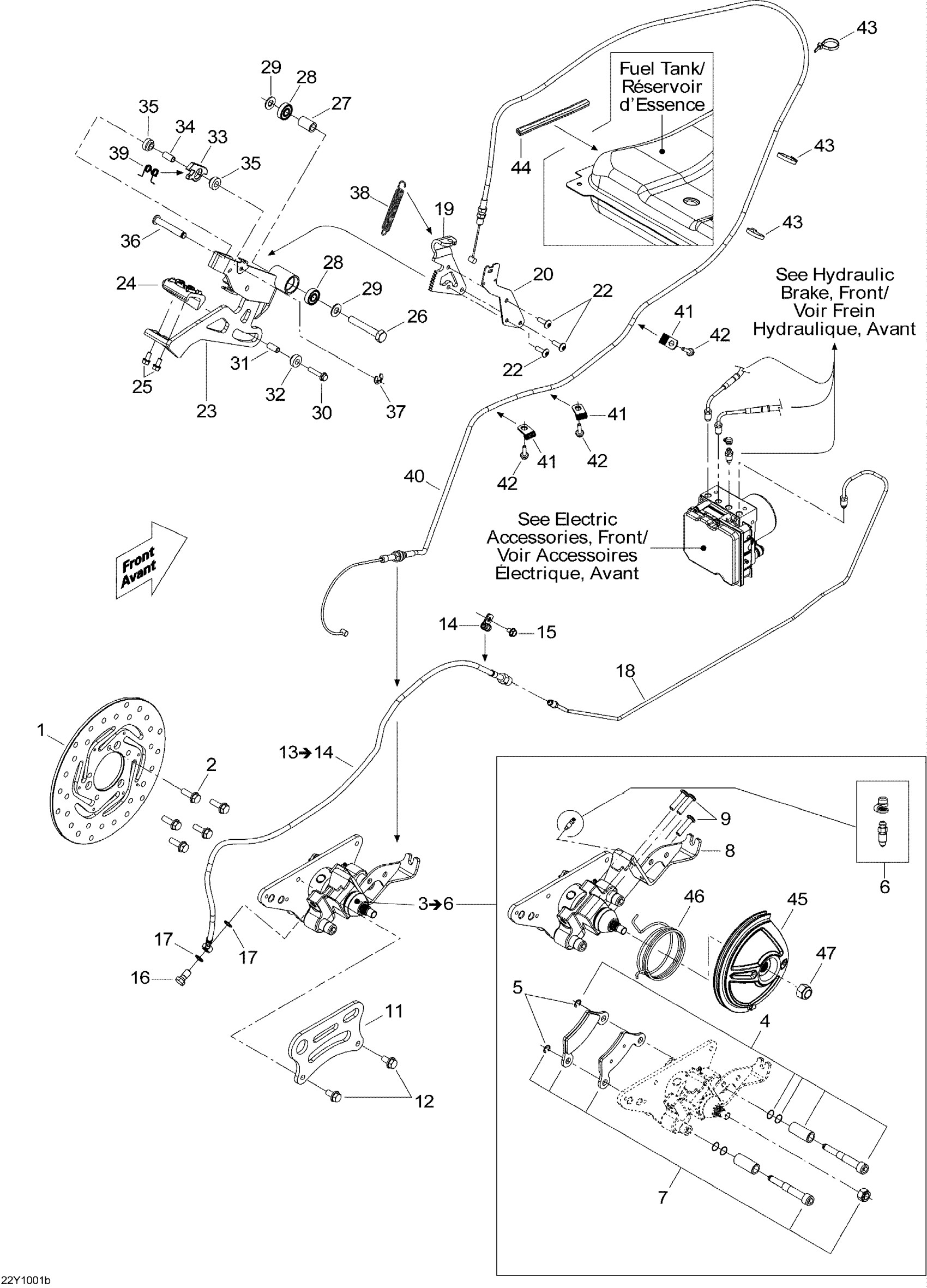

Can-Am Spyder RS Roadster SE5, Late Production 2010 06- Hydraulic Brake Rear Diagram

#

Description
Price

1

REAR BRAKE DISC - Call your local BRP dealership

705600591

$229.99

2

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

3

Rear Caliper | Includes 3 to 6

705600921

$719.99

4

BUSHING KIT - Call your local BRP dealership

219800032

Unavailable

5

RETAINING RING - Call your local BRP dealership

219800050

Unavailable

6

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

7

Rear Pad Kit

219800165

$77.99

8

CABLE SUPPORT - Call your local BRP dealership

705600974

Unavailable

9

THREAD FORMING SCREW 1/4-20 X 1 - Call your local BRP dealership

250000413

Unavailable

11

REAR CALIPER SUPPORT - Call your local BRP dealership

705600430

Unavailable

12

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

13

REAR BRAKE LINE - Call your local BRP dealership | Includes 8 to 9

705600813

Unavailable

14

Clamp

293650256

$5.49

15

Hex. Flange Screw M6 X 12

210261250

$1.90

16

Banjo Bolt

414920500

$8.68

17

Washer

414920600

$1.90

18

REAR RIGID TUBE - Call your local BRP dealership

705600834

Unavailable

19

PEDAL PLATE - Call your local BRP dealership

705600776

Unavailable

20

SWITCH PLATE - Call your local BRP dealership

705600584

Unavailable

22

Torx Truss Screw M6 X 20

250000350

$5.29

23

BRAKE PEDAL - Call your local BRP dealership

705600838

Unavailable

24

Rubber Pad

705004933

$20.99

25

Hex. Flange Screw M6 X 12

210261250

$1.90

26

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

27

Bushing

705600541

$15.36

28

Bearing

705600458

$19.99

29

Washer

503183800

$3.28

30

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

31

Bushing | Model-RS

705600588

$14.81

32

Bushing | Model-RS

705600587

$9.95

33

Key | Model-RS

705600524

$16.99

34

Bushing | Model-RS

705600588

$14.81

35

Bushing | Model-RS

705600587

$9.95

36

Pin | Model-RS

293370064

$17.99

37

Circlip | Model-RS

414439000

$4.23

38

SPRING - Call your local BRP dealership | Model-RS

707000543

Unavailable

39

Spring | Model-RS

705600525

$15.36

40

BRAKE CABLE - Call your local BRP dealership

707000812

Unavailable

41

Bracket

415052400

$4.39

42

Hex. Flange Screw M6 X 12

210261250

$1.90

43

Tie-Rap 180 mm

414115200

$0.11

44

Trim 1000Mm Long

219704354

$15.99

45

REAR PULLEY CABLE - Call your local BRP dealership

705600772

Unavailable

46

Spring

705601065

$8.75

47

NUT 7/16'' - Call your local BRP dealership

250100128

Unavailable
