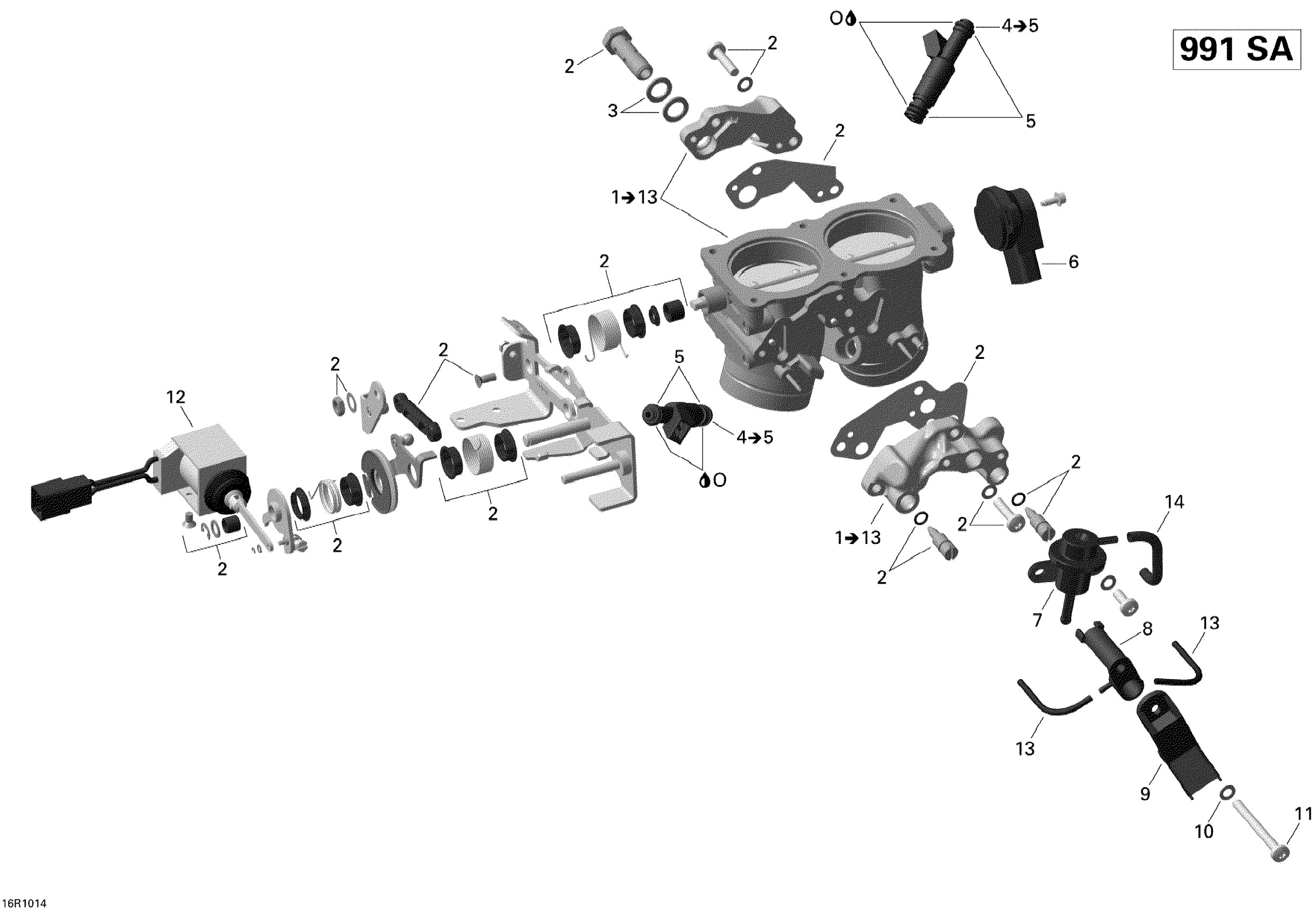

Can-Am Spyder RS Roadster SE5, Late Production 2010 02- Throttle Body Diagram

#

Description
Price

1

THROTTLE BODY ASS'Y - Call your local BRP dealership | Includes 1 to 10

420685221

Unavailable

2

Venturi Repair Device Kit

420281242

$328.49

3

Aluminum Sealing Ring

420250016

$5.39

4

FUEL INJECTOR ASS'Y - Call your local BRP dealership | Includes 3 to 4

420874487

$114.99

5

O-Ring

420631220

$14.28

6

Potentiometer

420274030

$110.99

7

PRESSURE REGULATOR - Call your local BRP dealership

420274020

Unavailable

8

Adapter

420460290

$20.49

9

Pressure Sensor

270600040

$199.99

10

SPRING WASHER - Call your local BRP dealership

420845020

Unavailable

11

ALLEN SCREW M6 X 60 - Call your local BRP dealership

420240373

Unavailable

12

Solenoid, Blipper

420281830

$549.99

13

Hose, Sensor

420960118

$16.87

14

Hose, Sensor

420860662

$15.81

O

Not Available As Spare Part - Friction Washer

Unavailable
