Description

Price

1

Fuel Tank

709000314

Unavailable

2

Pump Module

709000088

$625.49

3

Rollover Valve

709000413

$55.99

4

Fuel Cap

709000660

$15.49

5

Seal Kit

219800248

$38.99

6

Grommet

709000582

$4.69

7

Carpet

709000130

$14.49

8

BANJO FITTING - Call your local BRP dealership

709000137

$19.99

9

Fuel Line 7.9 mm, Meter

709000264

$15.99

10

Oetiker Clamp

293650125

$3.29

11

Fuel Filter Ass'y | Includes 40f to 40f2

219800056

$19.99

12

Oetiker Clamp

293650125

$3.29

13

Fuel Line 7.9 mm, Meter

709000265

$12.99

14

Female Quick Fitting Ass'y

709000125

$15.49

15

Locking Clip

513033135

$5.89

16

Tubing 16 Mm 1000Mm Long

219704408

$7.49

17

HOSE 6,35MM ID - 620MM - Call your local BRP dealership

709000266

Unavailable

18

Oetiker Clamp

293650046

$2.89

19

Quick Connect Pipe Fitting

293710192

$12.49

20

Tubing

513033412

$4.44

21

Bleed Valve

709000443

$73.99

22

HOSE - Call your local BRP dealership

709000254

Unavailable

23

Crimp Clamp, 15.3-706R

293650047

$3.29

24

Vapor Canister

709000090

$90.99

25

Formed Hose

709000277

$28.99

26

Hose

513033565

$30.99

27

Crimp Clamp, 15.3-706R

293650047

$3.29

28

Oetiker Gear Clamp

293650025

$3.09

29

Hose 3000Mm Long

219704612

$84.99

30

Tubing

513033412

$4.44

31

Oetiker Gear Clamp

293650025

$3.09

32

Hex. Flange Screw M6 X 25

207662544

$0.64

33

Flat Washer

224060201

$1.26

34

Flat Washer

224060201

$1.26

35

Bushing

709000162

$13.76

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

38

Tie Wrap 368 mm

293750008

$1.04

39

Support

709000150

Unavailable

40

Hex. Flange Screw M10 X 25

207602544

$1.69

41

Open Clamp

513033047

$5.19

42

Hex. Flange Screw M6 X 16

207661644

$0.74

43

Reflective Sheet

709000157

$20.99

44

REFLECTIVE SHEET - Call your local BRP dealership

709000158

Unavailable

45

REFLECTIVE SHEET - Call your local BRP dealership

709000159

Unavailable

46

Grommet

293720087

$7.39

47

Tie-Rap 180 mm

414115200

$0.11

48

Tubing 16 Mm 1000Mm Long

219704408

$7.49

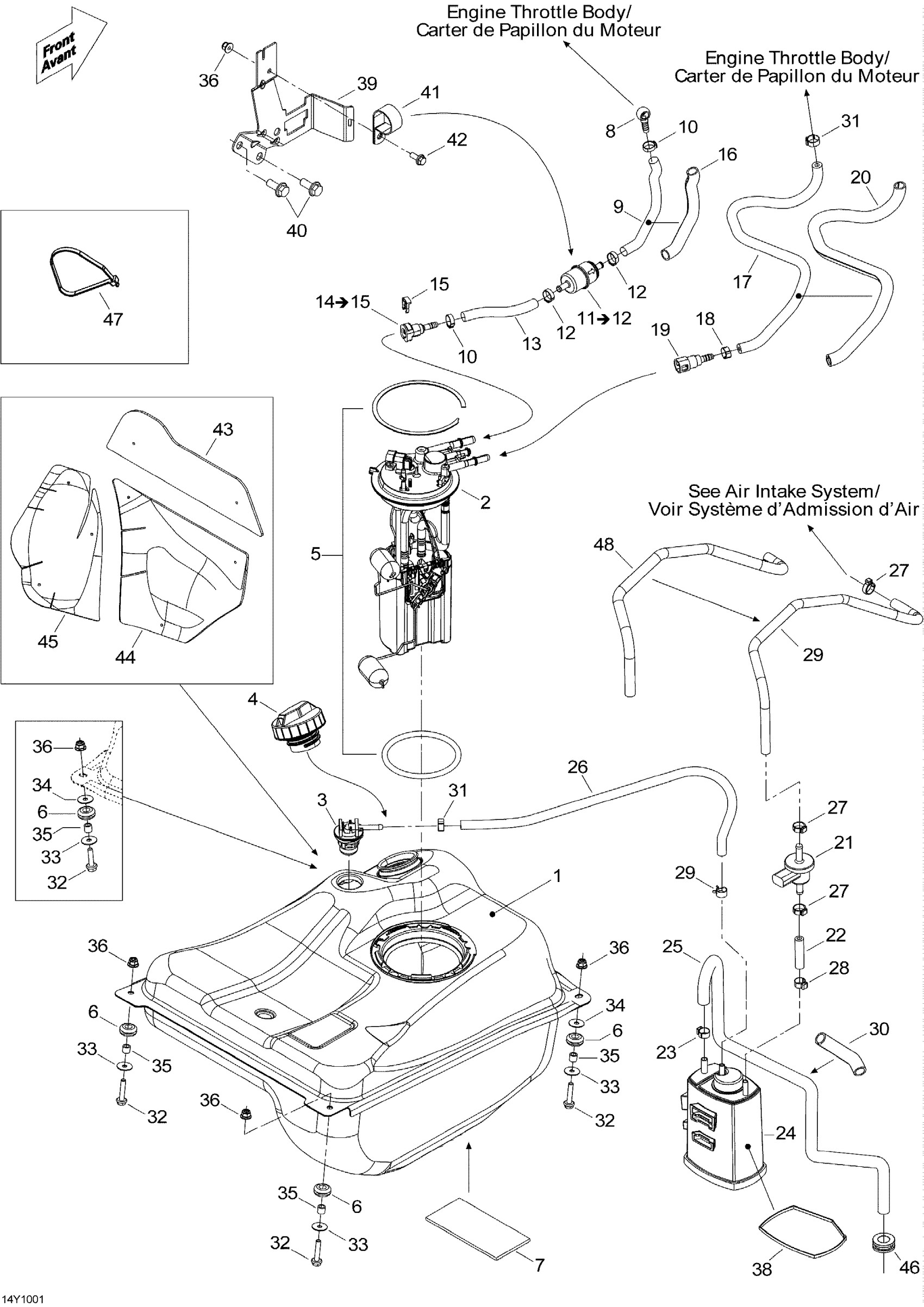

Can-Am Spyder RS Roadster SE5, Late Production 2010 02- Fuel System Diagram

Fuel Tank

Pump Module

Rollover Valve

Fuel Cap

Seal Kit

Grommet

Carpet

BANJO FITTING - Call your local BRP dealership

Fuel Line 7.9 mm, Meter

Oetiker Clamp

Fuel Filter Ass'y | Includes 40f to 40f2

Oetiker Clamp

Fuel Line 7.9 mm, Meter

Female Quick Fitting Ass'y

Locking Clip

Tubing 16 Mm 1000Mm Long

HOSE 6,35MM ID - 620MM - Call your local BRP dealership

Oetiker Clamp

Quick Connect Pipe Fitting

Tubing

Bleed Valve

HOSE - Call your local BRP dealership

Crimp Clamp, 15.3-706R

Vapor Canister

Formed Hose

Hose

Crimp Clamp, 15.3-706R

Oetiker Gear Clamp

Hose 3000Mm Long

Tubing

Oetiker Gear Clamp

Hex. Flange Screw M6 X 25

Flat Washer

Flat Washer

Bushing

Hex. Flange Elastic Nut M6 x 1.0

Tie Wrap 368 mm

Support

Hex. Flange Screw M10 X 25

Open Clamp

Hex. Flange Screw M6 X 16

Reflective Sheet

REFLECTIVE SHEET - Call your local BRP dealership

REFLECTIVE SHEET - Call your local BRP dealership

Grommet

Tie-Rap 180 mm

Tubing 16 Mm 1000Mm Long
