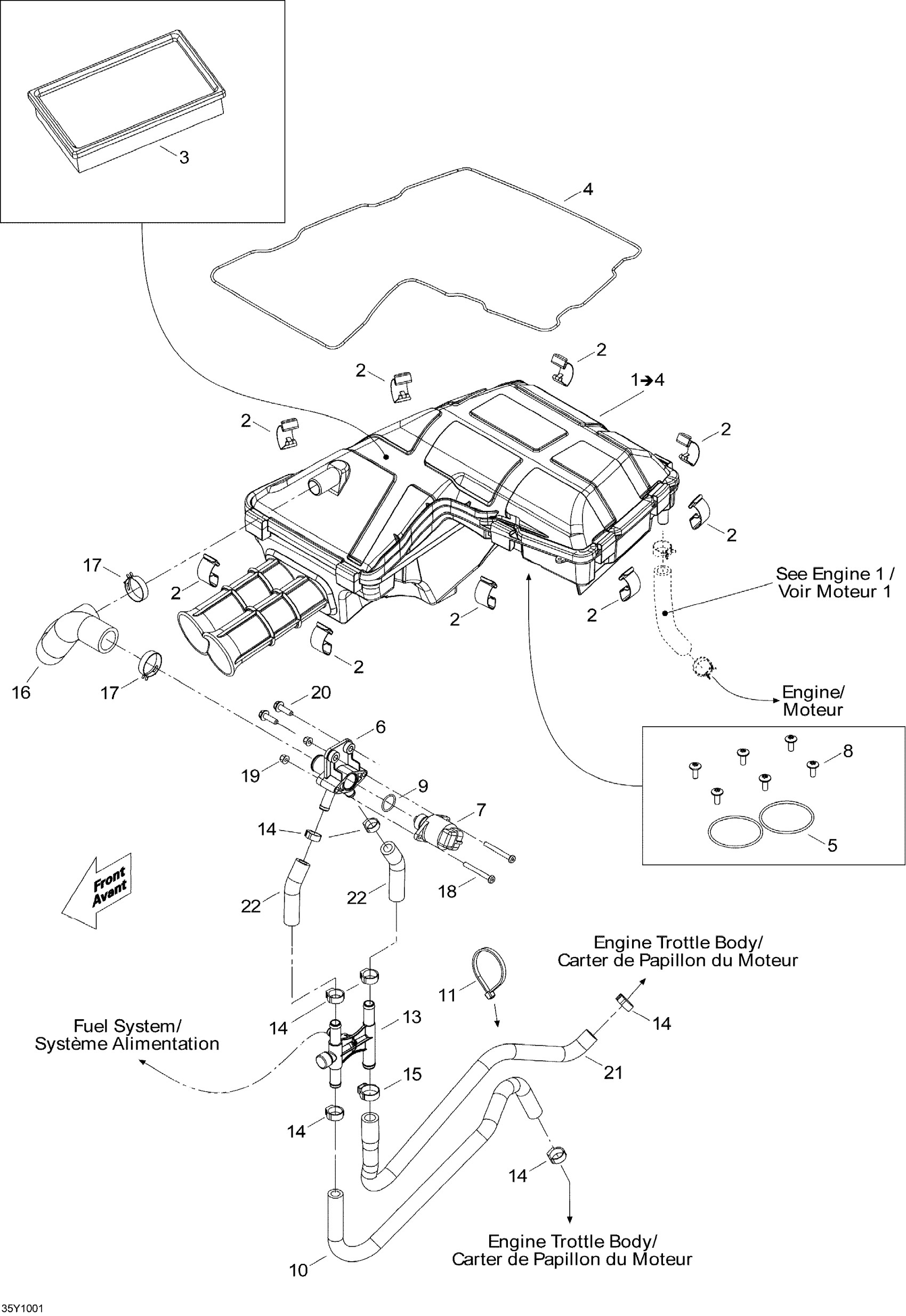

Can-Am Spyder RS Roadster SE5, Late Production 2010 02- Air Intake Diagram

#

Description
Price

1

AIR INTAKE ASS'Y - Call your local BRP dealership | Includes 1 to 4

707800182

Unavailable

2

COVER BRACKET - Call your local BRP dealership

707800259

Unavailable

3

Air Filter

707800188

$45.99

4

GASKET - Call your local BRP dealership

707800491

Unavailable

5

O-Ring

293300086

$3.59

6

FITTING - Call your local BRP dealership

707800207

Unavailable

7

IDLE VALVE - Call your local BRP dealership

707800203

Unavailable

8

Torx Screw M6 X 16

250000223

$2.11

9

O-Ring

293300079

$6.66

10

HOSE 9.53MM AVON #70-570000 - Call your local BRP dealership

709000668

Unavailable

11

Tie Wrap 142 mm

293750002

$1.25

13

Manifold

707800397

Unavailable

14

Oetiker Clamp | Europe

293650030

$5.19

15

Oetiker Clamp

293650012

$7.49

16

FORMED HOSE - Call your local BRP dealership

707800253

Unavailable

17

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

707800255

Unavailable

18

SOCKET HEAD SCREW M5 X 45 - Call your local BRP dealership

205454536

Unavailable

19

Hex. Flange Elastic Nut M5

233251414

$1.04

20

Hexagonal Head Screw

210262050

$2.11

21

FORMED HOSE - Call your local BRP dealership

709000341

Unavailable

22

HOSE 9.53MM AVON #70-570000 - Call your local BRP dealership

709000668

Unavailable
