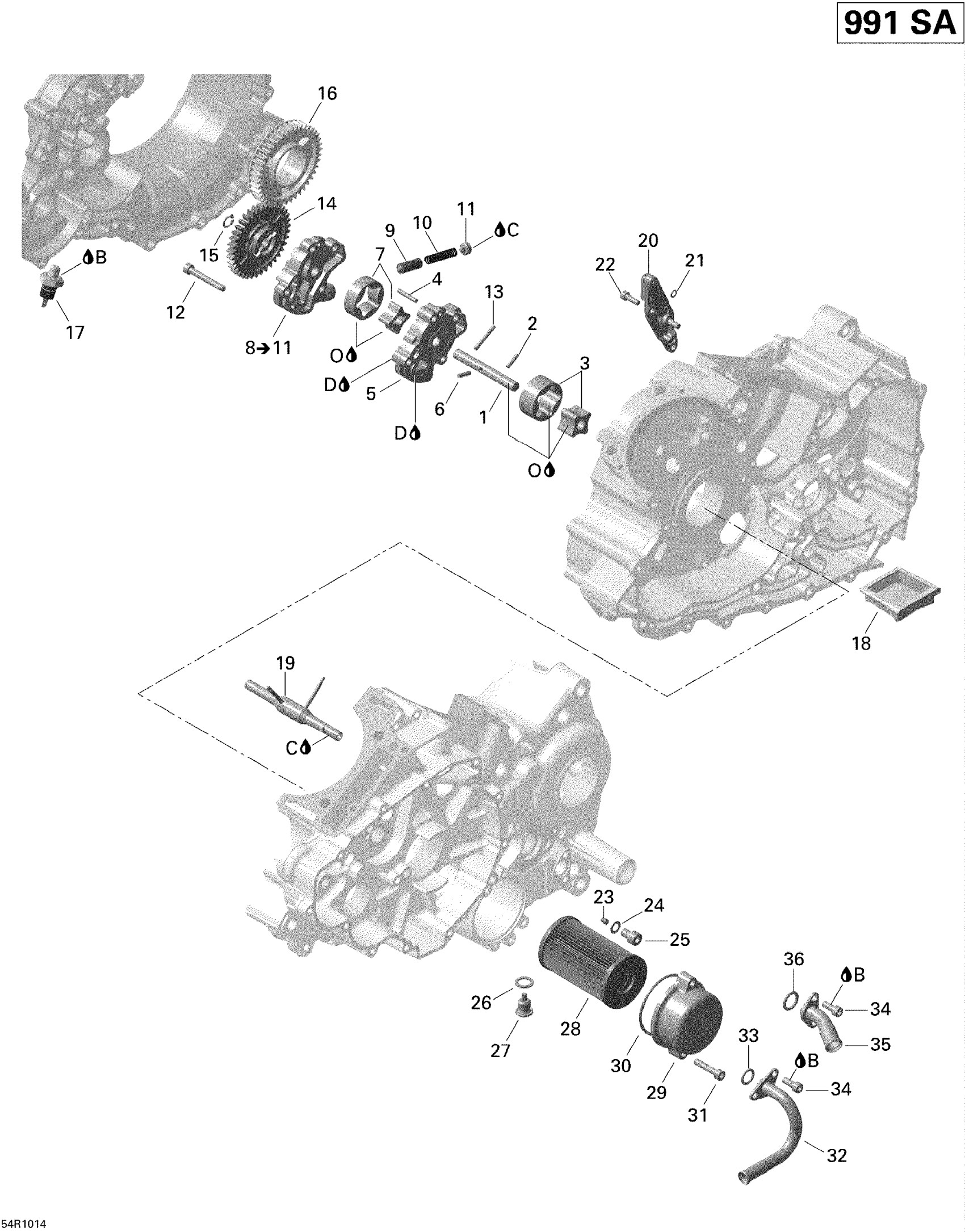

Can-Am Spyder RS Roadster SE5, Late Production 2010 01- Engine Lubrication Diagram

#

Description
Price

1

Oil Pump Shaft

420220425

$17.99

2

Needle Pin

420232731

$4.01

3

Oil Pump Rotor, Suction

420256681

$35.99

4

NEEDLE PIN - Call your local BRP dealership

420232971

$4.29

5

Oil Pump Housing

420211625

$41.49

6

Needle Pin

420232731

$4.01

7

Oil Pump Rotor, Pressure

420256671

$33.99

8

Oil Pump Cover Ass'y | Includes 8 to 11

420211635

$91.99

9

Pressure Regulating Piston

420256510

$28.49

10

Spring

420239449

$10.59

11

Screw

420241650

Unavailable

12

SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership

205064544

Unavailable

13

Needle Pin

420232431

$4.39

14

OIL PUMP GEAR, 37 TEETH - Call your local BRP dealership

420634488

Unavailable

15

Snap Ring

420245330

$1.79

16

Oil Gear Pump, 42 Teeth

420634478

$29.49

17

Oil Pressure Switch

420256912

$18.99

18

Crible D'Huile *Sieve-Oil

420256498

$16.87

19

Oil Tube

420656232

$62.49

20

OIL DUCT COVER - Call your local BRP dealership

420656595

Unavailable

21

O-Ring

420950420

$12.16

22

Allen Screw M5 x 16

420840514

$1.90

23

GICLEUR 56 - Call your local BRP dealership

420268755

Unavailable

24

Sealing Ring

420950141

$2.00

25

SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership

420841522

Unavailable

26

Copper Washer

420250640

$0.98

27

Magnetic Drain Plug M12 X 1.5

420241780

$17.59

28

Oil Filter

420956747

$20.99

29

Oil Cover Filter

420610233

$25.49

30

O-Ring

420230923

$3.17

31

Socket Head Screw M6 X 30

205063044

$1.69

32

BENT OUTLET - Call your local BRP dealership

420656540

$27.99

33

O-Ring

420950815

$5.82

34

Socket Head Screw M6 x 16

420241237

$2.22

35

OIL INLET ELBOW - Call your local BRP dealership

420656556

Unavailable

36

O-Ring

293300024

$8.57

B

Loctite 243, 10 ml

293800060

$21.49

C

Sealant Loctite 648

219703000

$45.99

D

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

O

Not Available As Spare Part - Friction Washer

Unavailable
