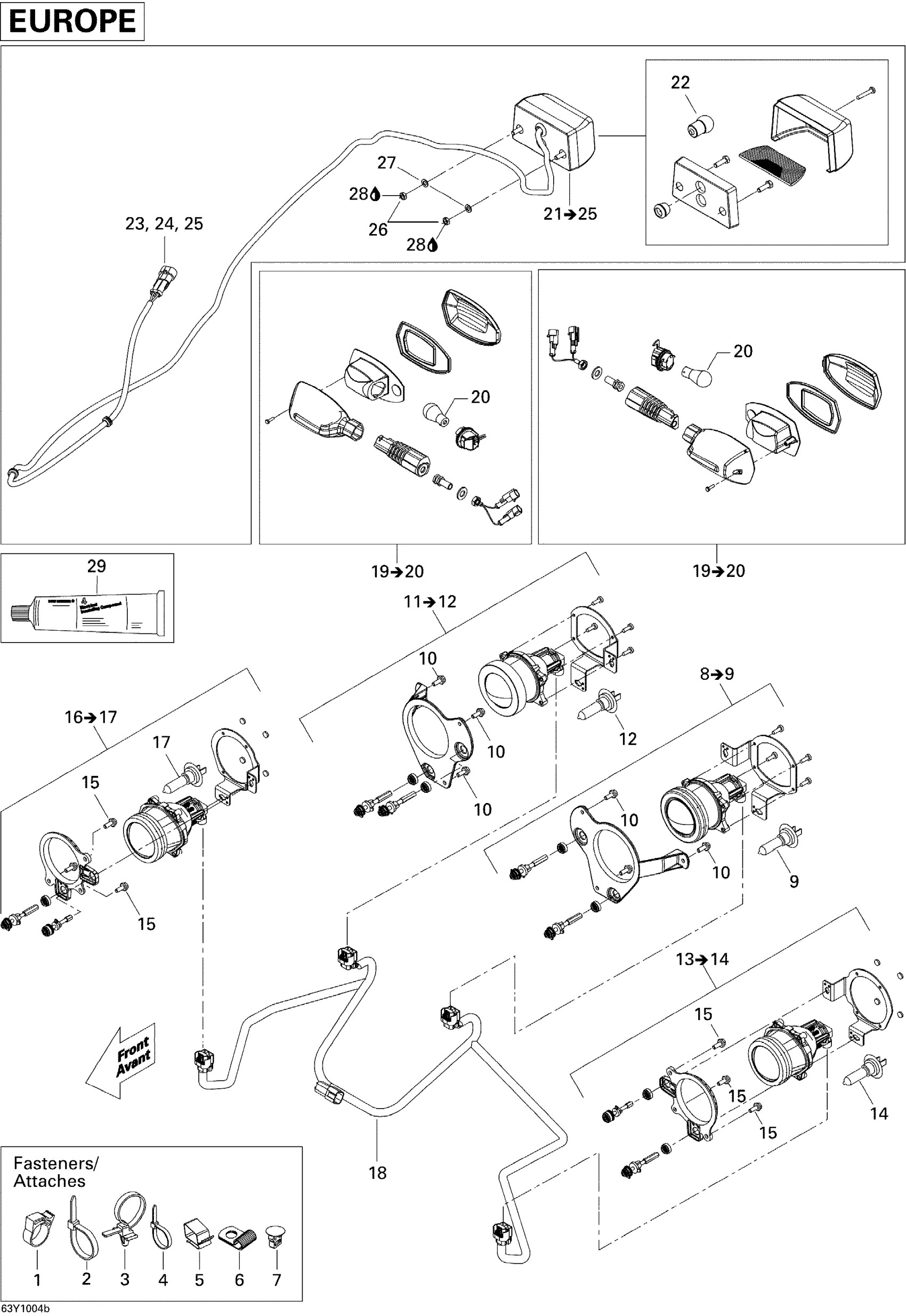

Can-Am Spyder RS Roadster SE5, 2010 10- Lighting System Europe Diagram

#

Description
Price

1

Clamp

293650082

$3.99

2

Tie Wrap 368 mm

293750008

$1.04

3

Tie-Rap 173 mm

293750009

$1.04

4

Tie-Rap 180 mm

414115200

$0.11

5

Clip

414227300

$1.67

6

Bracket

415052400

$4.39

7

Tie Rap Mount

293750044

$2.49

8

HIGH BEAM ASS'Y - Call your local BRP dealership

710001601

Unavailable

9

Halogen Bulb

415129249

$41.49

10

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

11

HIGH BEAM ASS'Y - Call your local BRP dealership

710001602

Unavailable

12

Halogen Bulb

415129249

$41.49

13

LOW BEAM ASS'Y - Call your local BRP dealership

710001603

Unavailable

14

Halogen Bulb

415129249

$41.49

15

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

16

LOW BEAM ASS'Y - Call your local BRP dealership

710001604

Unavailable

17

Halogen Bulb

415129249

$41.49

18

BEAM HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 882

710000793

Unavailable

19

Amber, Rear Turn Signal | Includes 0u to 0u1

710007006

$83.49

20

Bulb 12V 21W | Not Shown

715900043

$16.65

21

LICENCE LIGHT - Call your local BRP dealership | Includes 21 to 25

710000709

Unavailable

22

Bulb 12V 10W | Not Shown

415129261

$2.46

23

Wire Seal

278001013

$3.28

24

Male Terminal Housing, 2 Circuits

409209400

$16.86

25

Male Terminal | Europe Models

409012900

$3.28

26

Hex. Nut M5

232051600

$1.15

27

Flat Washer M5, Stainless

234051600

$0.77

28

Loctite 243, 10 ml

293800060

$21.49

29

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
