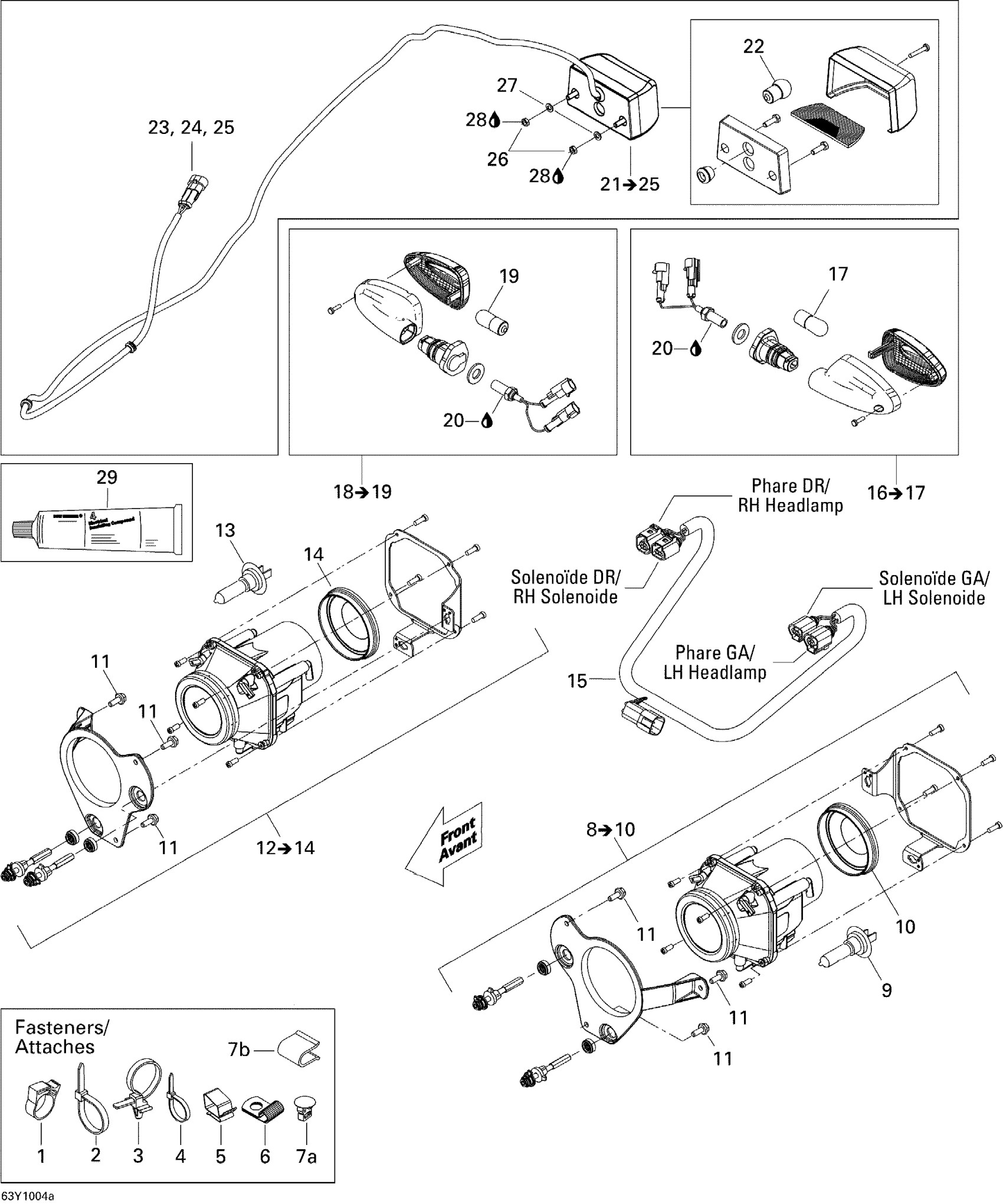

Can-Am Spyder RS Roadster SE5, 2010 10- Lighting System Diagram

#

Description
Price

1

Clamp

293650082

$3.99

2

Tie Wrap 368 mm

293750008

$1.04

3

Tie-Rap 173 mm

293750009

$1.04

4

Tie-Rap 180 mm

414115200

$0.11

5

Clip

414227300

$1.67

6

Bracket

415052400

$4.39

7a

Tie Rap Mount

293750044

$2.49

7b

Clip

414479100

$1.90

8

BI-HALOGEN BEAM ASS'Y - Call your local BRP dealership

710001039

Unavailable

9

Halogen Bulb

219400069

$19.99

10

Cap

219400070

$18.49

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

12

BI-HALOGEN BEAM - Call your local BRP dealership

710001112

Unavailable

13

Halogen Bulb

219400069

$19.99

14

Cap

219400070

$18.49

15

BEAM HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 908

710000792

Unavailable

16

LH Rear Turn Signal Ass'y

710001290

$68.99

17

Bulb 12V/10W, Amber

219800039

$5.29

18

RH Rear Turn Signal Ass'y

710001337

$68.99

19

Bulb 12V/10W, Amber

219800039

$5.29

20

Loctite 243, 10 ml

293800060

$21.49

21

License Light Ass'y

710001291

$76.49

22

Bulb 12V 10W | Not Shown

415129261

$2.46

23

Wire Seal

278001013

$3.28

24

Male Terminal Housing, 2 Circuits

409209400

$16.86

25

Male Terminal | Europe Models

409012900

$3.28

26

Hex. Nut M5

232051600

$1.15

27

Flat Washer M5, Stainless

234051600

$0.77

28

Loctite 243, 10 ml

293800060

$21.49

29

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
