Description

Price

1

Fuel Tank

709000314

Unavailable

2

Pump Module

709000088

$625.49

3

Rollover Valve

709000413

$55.99

4

Fuel Cap

709000660

$15.49

5

Seal Kit

219800248

$38.99

6

Grommet

709000582

$4.69

7

Carpet

709000130

$14.49

8

BANJO FITTING - Call your local BRP dealership

709000137

$19.99

9

Fuel Line 7.9 mm, Meter

709000264

$15.99

10

Oetiker Clamp

293650125

$3.29

11

Fuel Filter Ass'y | Includes 40f to 40f2

219800056

$19.99

12

Oetiker Clamp

293650125

$3.29

13

Fuel Line 7.9 mm, Meter

709000265

$12.99

14

Female Quick Fitting Ass'y

709000125

$15.49

15

Locking Clip

513033135

$5.89

16

Tubing 16 Mm 1000Mm Long

219704408

$7.49

17

Hose

513033565

$30.99

18

Oetiker Clamp

293650046

$2.89

19

Quick Connect Pipe Fitting

293710192

$12.49

20

Tubing 16 Mm 1000Mm Long

219704408

$7.49

21

Bleed Valve

709000443

$73.99

22

HOSE - Call your local BRP dealership

709000254

Unavailable

23

Crimp Clamp, 15.3-706R

293650047

$3.29

24

Vapor Canister

709000090

$90.99

25

HOSE - Call your local BRP dealership

709000253

Unavailable

26

FORMED HOSE - Call your local BRP dealership

709000152

Unavailable

27

Hose

513033565

$30.99

28

Crimp Clamp, 15.3-706R

293650047

$3.29

29

Oetiker Gear Clamp

293650025

$3.09

30

Oetiker Gear Clamp

293650025

$3.09

31

Hex. Flange Screw M6 X 25

207662544

$0.64

32

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

33

Flat Washer

224060201

$1.26

34

Flat Washer

224060201

$1.26

35

Bushing

709000162

$13.76

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Spring Clamp

414415200

$0.88

38

Tie Wrap 368 mm

293750008

$1.04

39

Support

709000150

Unavailable

40

Hex. Flange Screw M10 X 25

207602544

$1.69

41

Open Clamp

513033047

$5.19

42

Hex. Flange Screw M6 X 16

207661644

$0.74

43

Reflective Sheet

709000157

$20.99

44

REFLECTIVE SHEET - Call your local BRP dealership

709000158

Unavailable

45

REFLECTIVE SHEET - Call your local BRP dealership

709000159

Unavailable

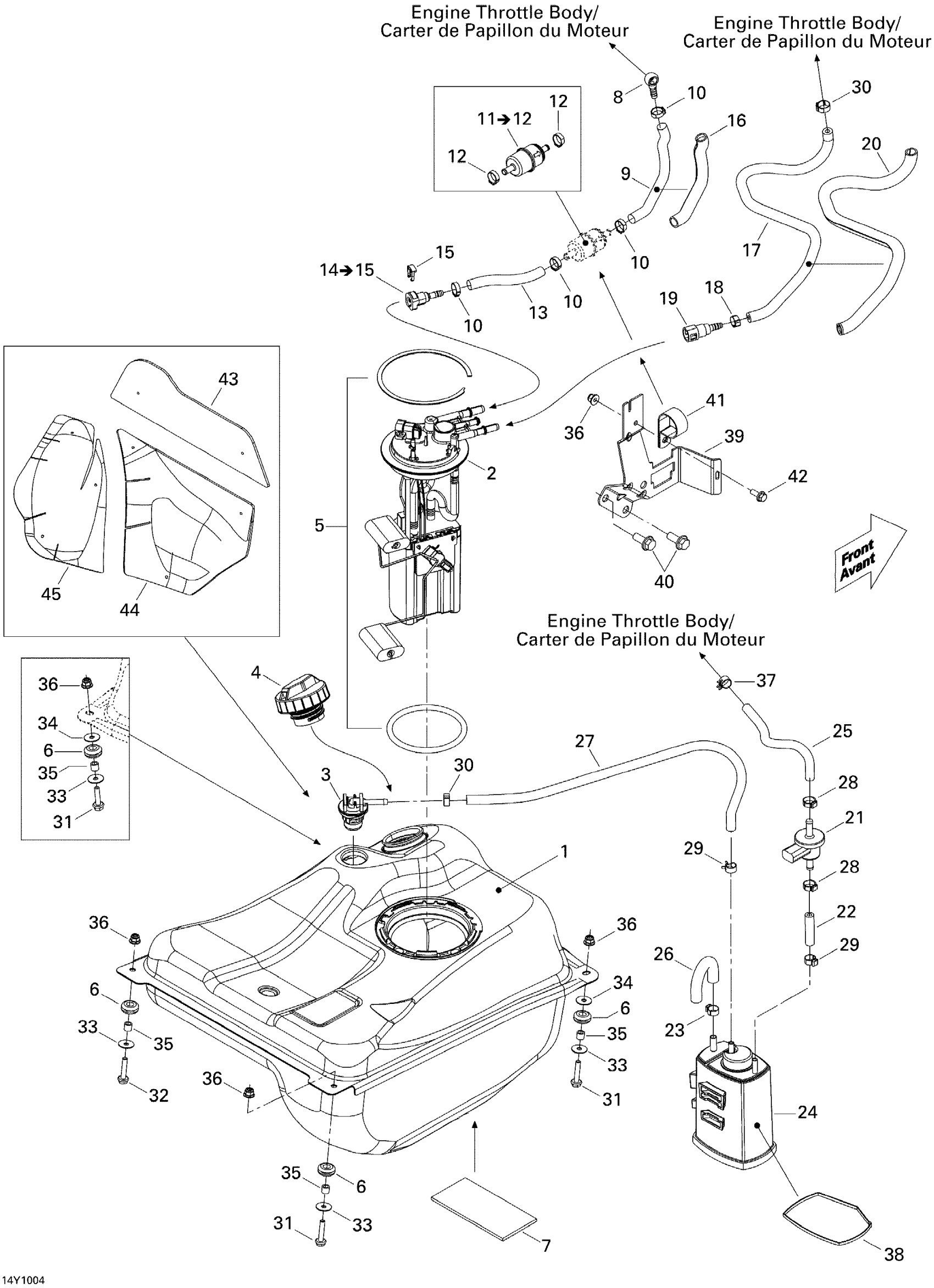

Can-Am Spyder RS Roadster SE5, 2010 02- Fuel System Diagram

Fuel Tank

Pump Module

Rollover Valve

Fuel Cap

Seal Kit

Grommet

Carpet

BANJO FITTING - Call your local BRP dealership

Fuel Line 7.9 mm, Meter

Oetiker Clamp

Fuel Filter Ass'y | Includes 40f to 40f2

Oetiker Clamp

Fuel Line 7.9 mm, Meter

Female Quick Fitting Ass'y

Locking Clip

Tubing 16 Mm 1000Mm Long

Hose

Oetiker Clamp

Quick Connect Pipe Fitting

Tubing 16 Mm 1000Mm Long

Bleed Valve

HOSE - Call your local BRP dealership

Crimp Clamp, 15.3-706R

Vapor Canister

HOSE - Call your local BRP dealership

FORMED HOSE - Call your local BRP dealership

Hose

Crimp Clamp, 15.3-706R

Oetiker Gear Clamp

Oetiker Gear Clamp

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Flat Washer

Flat Washer

Bushing

Hex. Flange Elastic Nut M6 x 1.0

Spring Clamp

Tie Wrap 368 mm

Support

Hex. Flange Screw M10 X 25

Open Clamp

Hex. Flange Screw M6 X 16

Reflective Sheet

REFLECTIVE SHEET - Call your local BRP dealership

REFLECTIVE SHEET - Call your local BRP dealership
