Description

Price

1

Clamp

293650082

$3.99

2

Tie Wrap 368 mm

293750008

$1.04

3

Tie-Rap 173 mm

293750009

$1.04

4

Tie-Rap 180 mm

414115200

$0.11

5

Clip

414227300

$1.67

6

Bracket

415052400

$4.39

7

Tie Rap Mount

293750044

$2.49

8

Brake Light Switch Ass'y

710001357

$46.49

9

Pop Rivet

293150150

$2.40

10

Brake Pressure Switch Ass'y

710001379

$43.49

11

Pop Rivet

293150150

$2.40

12

Starter Relay

710007777

$48.49

13a

HEX. COUPLING NUT M6 X 1.0 X 18 - Call your local BRP dealership

250100117

Unavailable

13b

BOOT - Call your local BRP dealership

710001610

Unavailable

13c

Hex. Flange Screw M6 X 12

210261250

$1.90

14

Hex. Nut M6

232061600

$1.15

15

Lock Washer Helical M6

234161601

$1.15

16a

POSITIVE CABLE (BAT/SOL/FUS) - Call your local BRP dealership | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

710002079

Unavailable

16a

Positive Cable | 5 Speed, Includes 16a to 16e

515176203

Unavailable

16a

Not Available As Spare Parts

XXX

Unavailable

16b

Fuse, 25 AMP

710001046

$3.91

16c

Fuse 30 amp.

710001200

$7.20

16d

Fuse, 40 AMP

710001047

$11.80

16e

Fuse, 50 AMP

710001048

$5.08

16f

Not Available As Spare Parts

XXX

Unavailable

17

POSITIVE CABLE - Call your local BRP dealership

710000794

Unavailable

18

Elastic Stop Nut M6

232561414

$0.55

19

YAW ANGLE SENSOR - Call your local BRP dealership

710002051

Unavailable

20

RUBBER BUMPER - Call your local BRP dealership

293830127

Unavailable

21

Hex. Flange Screw M6 X 25

207662544

$0.64

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23a

Cable Ass'y

707000399

$71.99

23b

Tubing 10 MM 1000MM Long

219704407

$2.79

24a

Cable Ass'y

707000518

$65.99

24b

Tubing 10 MM 1000MM Long

219704407

$2.79

25

Ignition Coil

278001546

$158.99

26

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

27

SPACER - Call your local BRP dealership

512059812

Unavailable

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

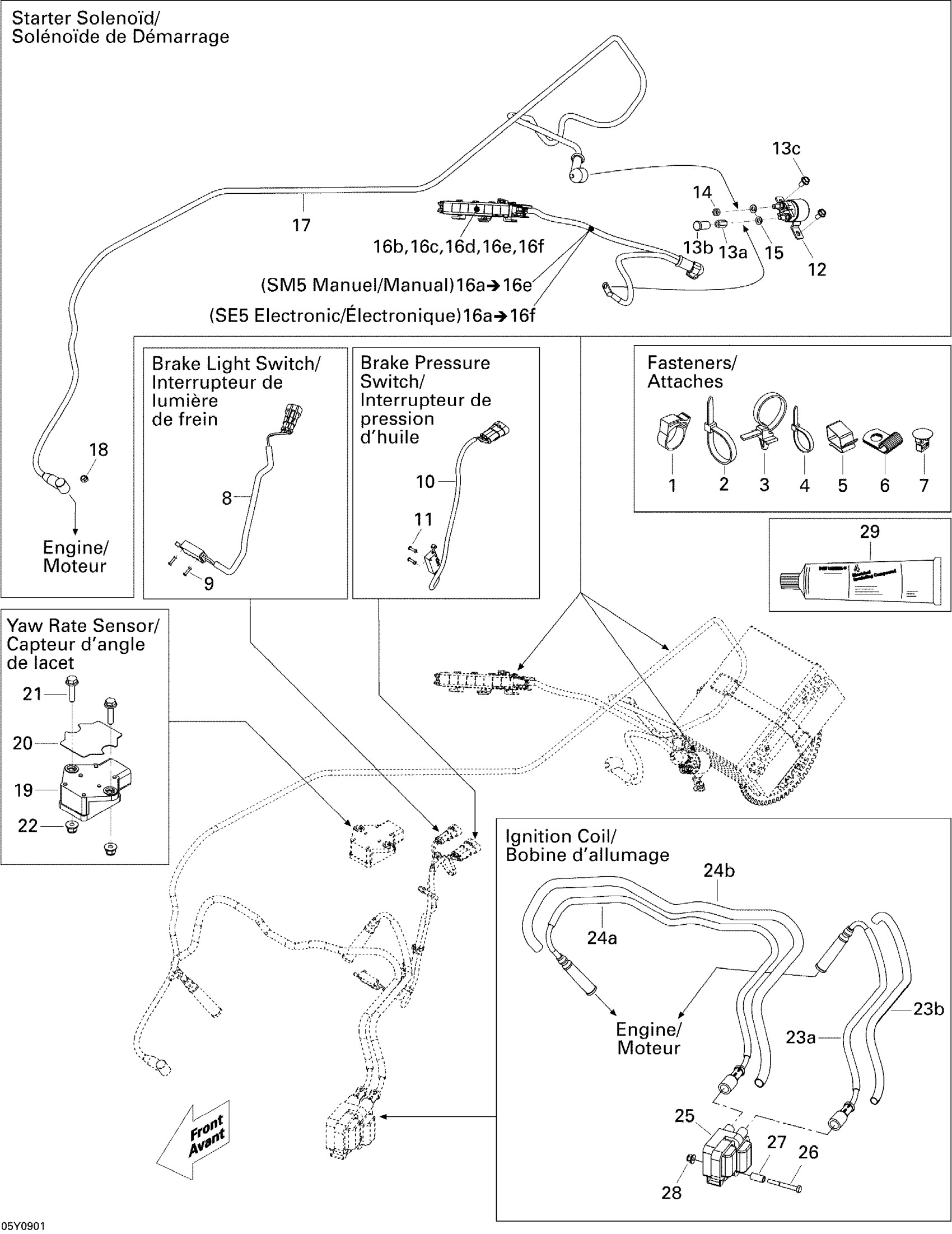

Can-Am Spyder GS Roadster with SM5 transmission, 2009 10- Electrical Accessories SM5 Manual Diagram

Clamp

Tie Wrap 368 mm

Tie-Rap 173 mm

Tie-Rap 180 mm

Clip

Bracket

Tie Rap Mount

Brake Light Switch Ass'y

Pop Rivet

Brake Pressure Switch Ass'y

Pop Rivet

Starter Relay

HEX. COUPLING NUT M6 X 1.0 X 18 - Call your local BRP dealership

BOOT - Call your local BRP dealership

Hex. Flange Screw M6 X 12

Hex. Nut M6

Lock Washer Helical M6

POSITIVE CABLE (BAT/SOL/FUS) - Call your local BRP dealership | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

Positive Cable | 5 Speed, Includes 16a to 16e

Not Available As Spare Parts

Fuse, 25 AMP

Fuse 30 amp.

Fuse, 40 AMP

Fuse, 50 AMP

Not Available As Spare Parts

POSITIVE CABLE - Call your local BRP dealership

Elastic Stop Nut M6

YAW ANGLE SENSOR - Call your local BRP dealership

RUBBER BUMPER - Call your local BRP dealership

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Cable Ass'y

Tubing 10 MM 1000MM Long

Cable Ass'y

Tubing 10 MM 1000MM Long

Ignition Coil

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

SPACER - Call your local BRP dealership

Hex. Flange Elastic Nut M6 x 1.0

Was 293550004 Dielectric Grease, 150 g
