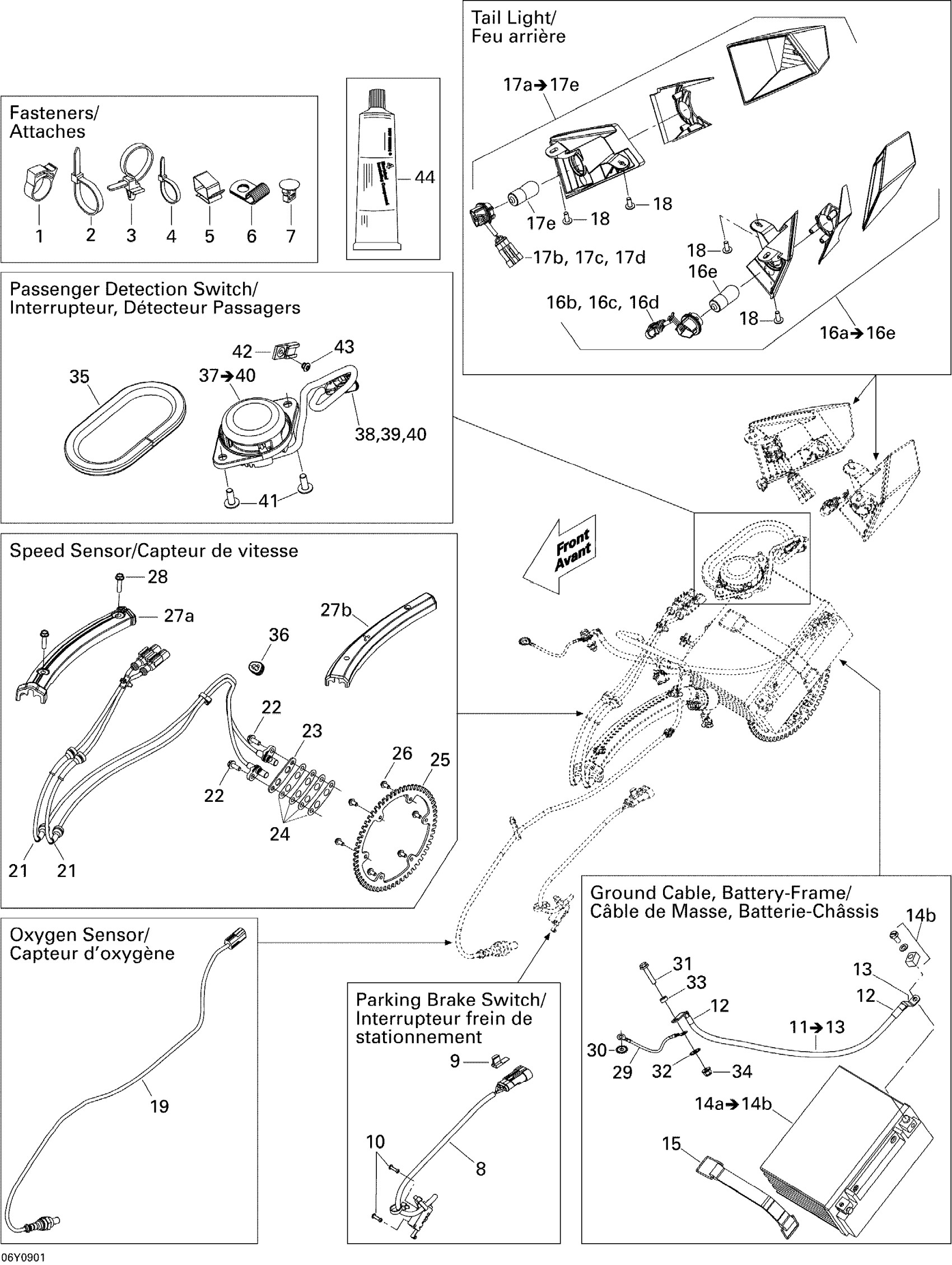

Can-Am Spyder GS Roadster with SM5 transmission, 2009 10- Electrical Accessories, Rear Diagram

#

Description
Price

1

Clamp

293650082

$3.99

2

Tie Wrap 368 mm

293750008

$1.04

3

Tie-Rap 173 mm

293750009

$1.04

4

Tie-Rap 180 mm

414115200

$0.11

5

Clip

414227300

$1.67

6

Bracket

415052400

$4.39

7

Tie Rap Mount

293750044

$2.49

8

Brake Pressure Switch Ass'y

710001379

$43.49

9

Clip

710001343

$9.09

10

Pop Rivet

293150150

$2.40

11

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

710000830

$23.49

12

Was 710000483 Heat Shrink Tubing

219704447

$78.99

13

Open Barrel | STD Models

710000518

$11.12

14a

Battery, 12 Volts, 21 Amperes

410922962

$194.99

14b

Battery Bolt Kit

250000282

$7.29

15

Battery Strap

515176044

$18.49

16a

LH Tail Light Ass'y

515176850

$59.49

16b

Housing

710000568

$11.12

16c

Male Terminal | Europe Models

409012900

$3.28

16d

Wire Seal

278001013

$3.28

16e

Bulb

520000758

$9.10

17a

RH Tail Light Ass'y

515176849

$59.49

17b

Housing

710000568

$11.12

17c

Male Terminal | Europe Models

409012900

$3.28

17d

Wire Seal

278001013

$3.28

17e

Bulb

520000758

$9.10

18

Torx Truss Screw M6 X 16

250000721

$1.69

19

Oxygen Sensor

707600557

$164.99

21

Speed Sensor

706202361

$164.99

22

Hexagonal Head Screw

210262050

$2.11

23

SHIM - Call your local BRP dealership

710001212

Unavailable

24

Shim

710001213

Unavailable

25

TONE WHEEL - Call your local BRP dealership

705600573

Unavailable

26

SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership

207551034

Unavailable

27a

PROTECTOR - Call your local BRP dealership

710001035

Unavailable

27b

Swing Arm Cap | GS Black A19N Model

520000863

Unavailable

28

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

29

GROUND HARNESS - Call your local BRP dealership

710001165

Unavailable

30

Lock Washer Serrated M6

250200041

$1.15

31

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

32

Lock Washer Serrated M6

250200041

$1.15

33

BUSHING - Call your local BRP dealership

293900054

Unavailable

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

35

Trim 1000Mm Long

219704354

$15.99

36

GROMMET - Call your local BRP dealership

293720080

Unavailable

37

Passenger Detection Switch

710008103

$76.99

38

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

39

Female Terminal

278000632

$2.09

40

Female Lock

409207200

$4.39

41

Torx Screw M6 X 16

250000755

$0.87

42

Clip

270000141

$11.49

43

Pop Rivet 3/16"

390402400

$0.35

44

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
