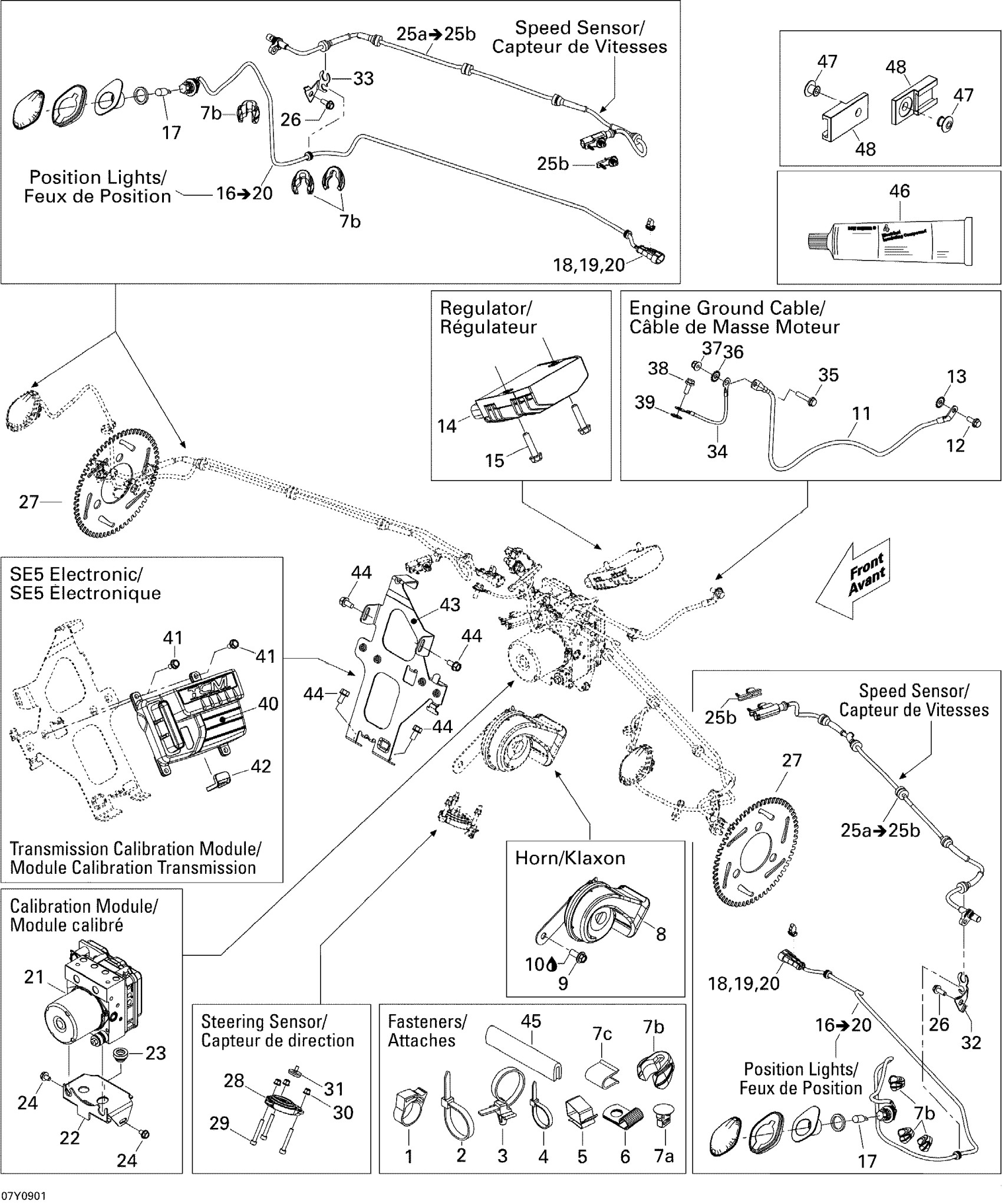

Can-Am Spyder GS Roadster with SM5 transmission, 2009 10- Electrical Accessories, Front SM5 Manual Diagram

#

Description
Price

1

Clamp

293650082

$3.99

2

Tie Wrap 368 mm

293750008

$1.04

3

Tie-Rap 173 mm

293750009

$1.04

4

Tie-Rap 180 mm

414115200

$0.11

5

Clip

414227300

$1.67

6

Bracket

415052400

$4.39

7a

Tie Rap Mount

293750044

$2.49

7b

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

7c

Clip

414479100

$1.90

8

HORN - Call your local BRP dealership

710004229

$28.99

9

Hex. Flange Screw M8 X 20

207682044

$1.15

10

Loctite 243, 10 ml

293800060

$21.49

11

ENGINE GROUND CABLE - Call your local BRP dealership

710000177

Unavailable

12

Hex. Flange Screw M6 X 16

207661644

$0.74

13

Lock Washer Serrated M6

250200041

$1.15

14

REGULATOR KIT - Call your local BRP dealership

219800252

Unavailable

15

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

16

POSITION LIGHTS - Call your local BRP dealership | Includes 16 to 20

710001058

Unavailable

17

BULB 5W. - Call your local BRP dealership

410922994

Unavailable

18

Male Terminal Housing, 2 Circuits

409209400

$16.86

19

Male Terminal | Europe Models

409012900

$3.28

20

Wire Seal

278001013

$3.28

21

CALIBRATION MODULE 0265236033 - Call your local BRP dealership

705600626

$2,049.99

22

MODULE BRACKET - Call your local BRP dealership

705600602

Unavailable

23

STOPPER - Call your local BRP dealership

710000938

Unavailable

24

Hex. Flange Screw M6 X 12

210261250

$1.90

25a

SPEED SENSOR - Call your local BRP dealership | Includes 25a to 25b

706200495

Unavailable

25b

Speed Sensor Clip

219800059

$9.69

26

Hex. Flange Screw M6 X 16

210261650

$1.67

27

TONE WHEEL - Call your local BRP dealership

705600436

Unavailable

28

Steering Position Sensor

709400363

$609.99

29

Socket Head Screw M5 X 35

205053588

$1.90

30

Hex. Flange Elastic Nut M5

233251414

$1.04

31

ENCODER MAGNET - Call your local BRP dealership

709400362

Unavailable

32

LH WIRE SUPPORT - Call your local BRP dealership

710002019

Unavailable

33

RH WIRE SUPPORT - Call your local BRP dealership

710002018

Unavailable

34

GROUND HARNESS - Call your local BRP dealership

710001165

Unavailable

35

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

36

Lock Washer Serrated M6

250200041

$1.15

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

38

Hex. Flange Screw M6 X 16

207661644

$0.74

39

Lock Washer Serrated M6

250200041

$1.15

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

MODULE SUPPORT - Call your local BRP dealership

705202002

Unavailable

44

Hex. Flange Screw M6 X 12

210261250

$1.90

45

Trim 1000Mm Long

219704354

$15.99

46

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

47

Not Available As Spare Parts

XXX

Unavailable

48

Not Available As Spare Parts

XXX

Unavailable
