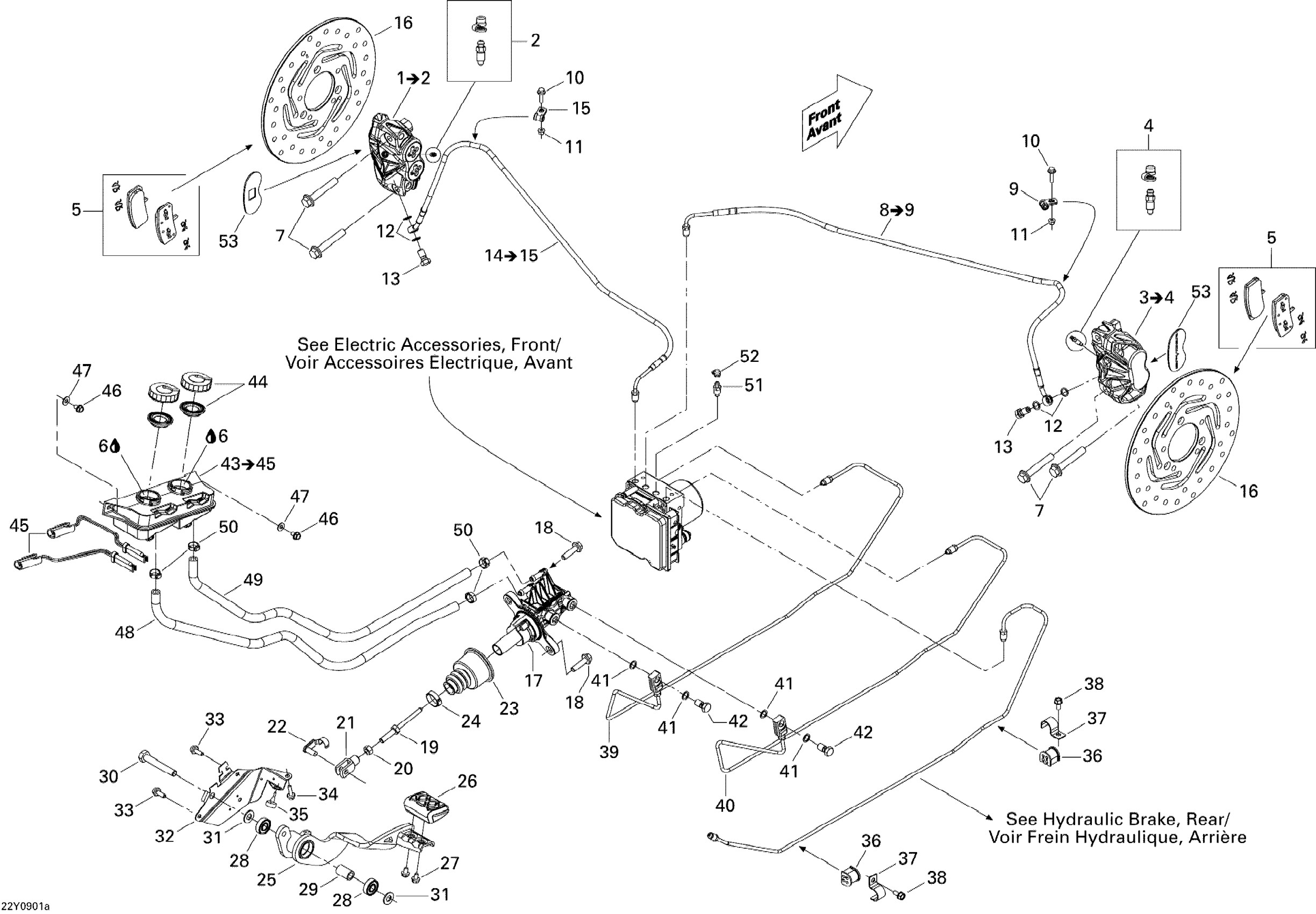

Can-Am Spyder GS Roadster with SM5 transmission, 2009 06- Hydraulic Brake, Front SM5 Manual Diagram

#

Description
Price

1

LH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 1 to 2

219800125

Unavailable

2

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

3

RH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 3 to 4

219800126

Unavailable

4

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

5

Pad Kit (4 Pads)

219800164

$154.99

6

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99

7

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership

207506034

Unavailable

8

RH FRONT FLEXIBLE BRAKE LINE - Call your local BRP dealership | Includes 7 to 8

705600852

Unavailable

9

Clamp

293650256

$5.49

10

HEX. FLANGED SCREW M5 X 20 - Call your local BRP dealership

207652034

$1.99

11

Flange Elastic Nut M5

233251434

$2.00

12

Washer

414920600

$1.90

13

Banjo Bolt

414920500

$8.68

14

LH FRONT FLEXIBLE BRAKE LINE - Call your local BRP dealership | Includes 11 to 12

705600853

Unavailable

15

Clamp

293650256

$5.49

16

FRONT BRAKE DISC - Call your local BRP dealership

705600435

Unavailable

17

Tandem Cylinder Master

705600722

$369.99

18

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

19

Piston Rod

705600468

$23.49

20

Hex. Nut M8

232081414

$0.72

21

Yoke

705600100

Unavailable

22

Pin Kit

219702305

$34.99

23

Bellow

705600716

$12.10

24

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

25

BRAKE PEDAL - Call your local BRP dealership | Model-RS

705600633

Unavailable

26

Rubber Pad

705004933

$20.99

26

Rubber Pad

705002706

Unavailable

27

Hex. Flange Screw M6 X 12

210261250

$1.90

27

Hex. Forming Screw M6 X 10

210261050

$1.69

28

Bearing

705600458

$19.99

29

Bushing

705600541

$15.36

30

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

31

Flat Washer 10 mm

234001410

$1.26

32

TAB LOCK - Call your local BRP dealership

705600823

Unavailable

33

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

34

Hex. Forming Screw M6 X 10

210261050

$1.69

35

Rubber Stopper

708000759

$4.19

36

TUBE SUPPORT - Call your local BRP dealership

705600843

Unavailable

37

Clip

705600507

Unavailable

38

Hex. Flange Screw M6 X 12

210261250

$1.90

39

FRONT TANDEM RIGID TUBE - Call your local BRP dealership

705600721

Unavailable

40

REAR TANDEM RIGID TUBE - Call your local BRP dealership

705600742

Unavailable

41

Washer

414920600

$1.90

42

Banjo Bolt

414920500

$8.68

43

OIL RESERVOIR - Call your local BRP dealership | Includes 40 to 41

219800324

Unavailable

44

Cap And Diaphragm Kit

219800058

$19.49

45

Oil Level Sensor

515176508

$31.99

46

Hex. Flange Screw M6 X 12

210261250

$1.90

47

Flat Washer

224061121

$0.53

48

BOYAU 8MM. *HOSE-8MM. - Call your local BRP dealership

276000084

Unavailable

49

BOYAU 8MM. *HOSE-8MM. - Call your local BRP dealership

276000084

Unavailable

50

Crimp Clamp, 15.3-706R

293650047

$3.29

51

Bleeder Screw

705600502

$11.11

52

BLEEDER CAP - Call your local BRP dealership

705600554

Unavailable

53

CALIPER DECAL KIT - Call your local BRP dealership | GS Black A19N Model

219400074

Unavailable
