Description

Price

1

Thrust Washer

420627260

$10.16

2

Oil Gear Pump, 42 Teeth

420634478

$29.49

3

Clutch Drum

420259535

$75.99

4

Primary Drive Gear Ass'Y | Includes 11 to 12

420295789

$599.99

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Disc Spring

420239390

Unavailable

7

THRUST WASHER - Call your local BRP dealership

420627910

Unavailable

8

Primary Drive Ass'y | Includes 3a to 17

420685850

$639.99

9

Compression Spring

420238135

$16.99

10

Internal Compression Spring

420238140

$16.25

11

Compression Spring

420238130

$18.49

12

Spring Retainer

420247015

$15.87

13

Spring Retainer

420247017

$15.87

14

Flat Head Screw, M8 X 25

420941835

$3.91

15

Spacer Sleeve

420247614

$10.16

16

Outer Support Plate

420259581

$64.49

17

Hex. Nut M8

232081414

$0.72

18

Thrust Washer

420627225

$12.70

19

Hub Clutch

420259521

$104.99

20

Spring Washer

420245830

$10.16

21

Hex. Nut M24

420242012

$16.33

22

PLATE, 1.5 MM - Call your local BRP dealership | See Item 36, Disc Kit

420259266

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Pin

420659791

$35.99

26

Pressure Plate Ass'y | Includes 26 to 27

420259519

$76.49

27

Ball Bearing

420632135

$28.49

28

Clutch Spring | See Item 36, Disc Kit

420238721

$11.11

29

Step Washer

420627530

$10.16

30

Screw M6 X 45

420640315

$2.21

31

Thrust Washer

420227180

$12.71

32

Disc Support

420627230

$16.34

33

Diaphragm

420260892

$35.99

34

Disc Plate

420627281

$16.34

35

Hexagonal Nut M12 X 1

420642059

$9.48

36

Disc Kit, Type 991 SM5

420281930

$669.99

B

Loctite 243, 10 ml

293800060

$21.49

C

Sealant Loctite 648

219703000

$45.99

O

Not Available As Spare Part - Friction Washer

Unavailable

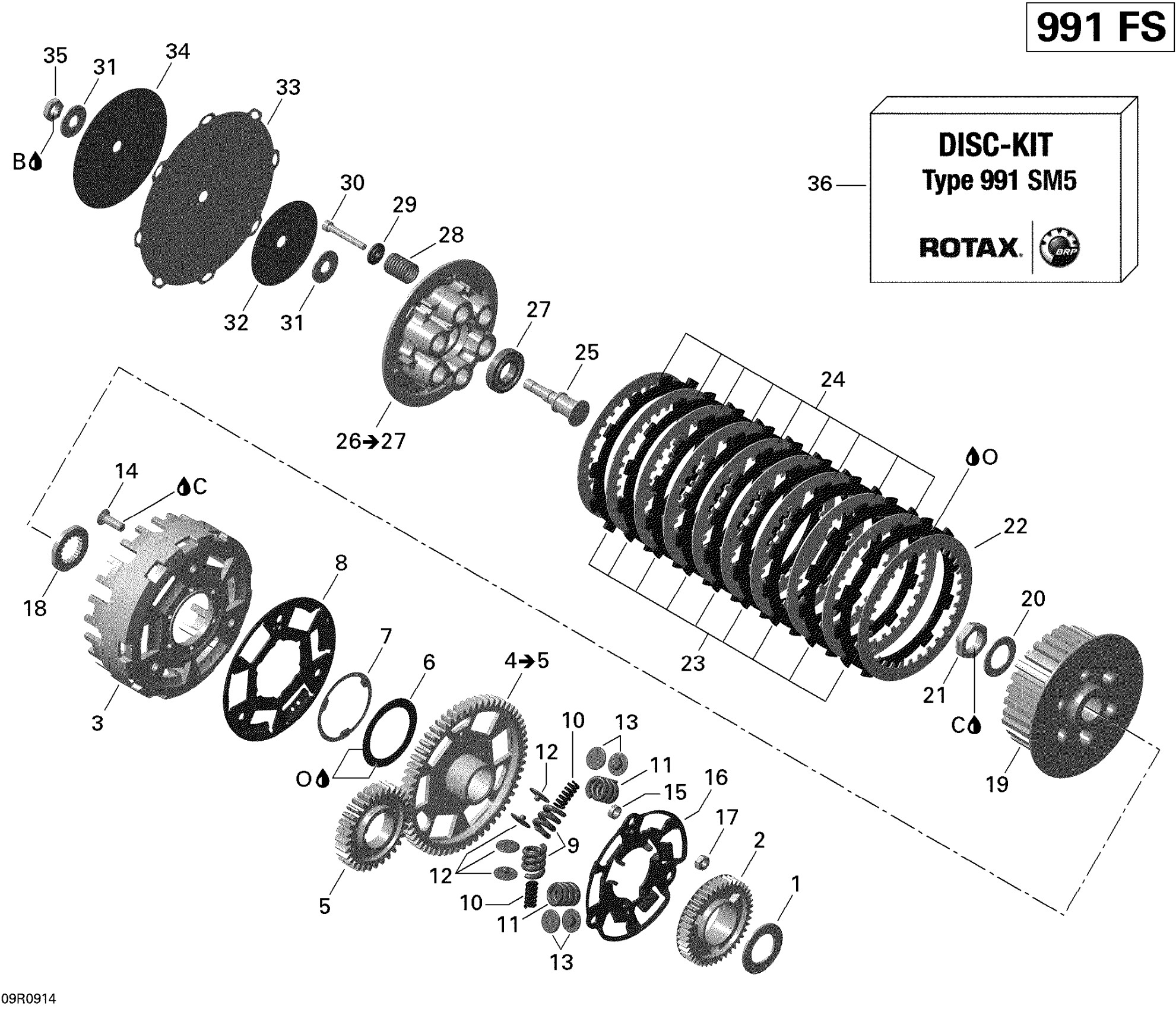

Can-Am Spyder GS Roadster with SM5 transmission, 2009 05- Clutch Diagram

Thrust Washer

Oil Gear Pump, 42 Teeth

Clutch Drum

Primary Drive Gear Ass'Y | Includes 11 to 12

Not Available As Spare Part - Friction Washer

Disc Spring

THRUST WASHER - Call your local BRP dealership

Primary Drive Ass'y | Includes 3a to 17

Compression Spring

Internal Compression Spring

Compression Spring

Spring Retainer

Spring Retainer

Flat Head Screw, M8 X 25

Spacer Sleeve

Outer Support Plate

Hex. Nut M8

Thrust Washer

Hub Clutch

Spring Washer

Hex. Nut M24

PLATE, 1.5 MM - Call your local BRP dealership | See Item 36, Disc Kit

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Pin

Pressure Plate Ass'y | Includes 26 to 27

Ball Bearing

Clutch Spring | See Item 36, Disc Kit

Step Washer

Screw M6 X 45

Thrust Washer

Disc Support

Diaphragm

Disc Plate

Hexagonal Nut M12 X 1

Disc Kit, Type 991 SM5

Loctite 243, 10 ml

Sealant Loctite 648

Not Available As Spare Part - Friction Washer
