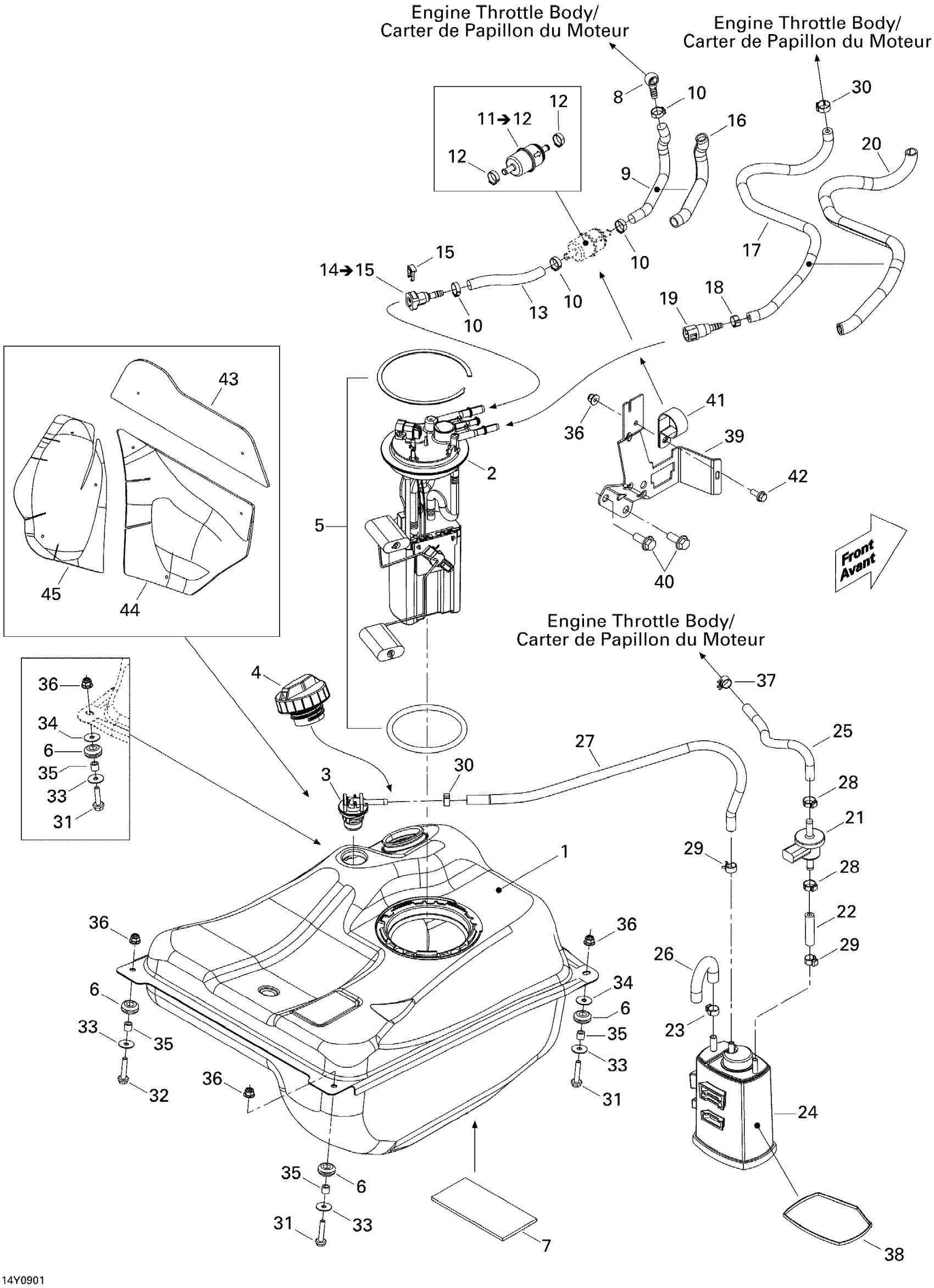

Can-Am Spyder GS Roadster with SM5 transmission, 2009 02- Fuel System Diagram

Fuel Tank

709000314

Unavailable

Pump Module

709000088

$625.49

Rollover Valve

709000413

$55.99

Fuel Cap

709000660

$15.49

Seal Kit

219800248

$38.99

Grommet

709000582

$4.69

Carpet

709000130

$14.49

BANJO FITTING - Call your local BRP dealership

709000137

$19.99

Fuel Line 7.9 mm

709000133

Unavailable

Oetiker Clamp

293650125

$3.29

Fuel Filter Ass'y | Includes 40f to 40f2

219800056

$19.99

Oetiker Clamp

293650125

$3.29

Fuel Line 7.9 mm

709000133

Unavailable

Female Quick Fitting Ass'y

709000125

$15.49

Locking Clip

513033135

$5.89

Tubing 16 Mm 1000Mm Long

219704408

$7.49

Hose

513033565

$30.99

Oetiker Clamp

293650046

$2.89

Quick Connect Pipe Fitting

293710192

$12.49

Tubing 16 Mm 1000Mm Long

219704408

$7.49

Bleed Valve

709000443

$73.99

HOSE - Call your local BRP dealership

709000254

Unavailable

Crimp Clamp, 15.3-706R

293650047

$3.29

Vapor Canister

709000090

$90.99

HOSE - Call your local BRP dealership

709000253

Unavailable

FORMED HOSE - Call your local BRP dealership

709000152

Unavailable

Hose

513033565

$30.99

Crimp Clamp, 15.3-706R

293650047

$3.29

Oetiker Gear Clamp

293650025

$3.09

Oetiker Gear Clamp

293650025

$3.09

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Flat Washer

224060201

$1.26

Flat Washer

224060201

$1.26

Bushing

709000162

$13.76

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Spring Clamp

414415200

$0.88

Tie Wrap 368 mm

293750008

$1.04

Support

709000150

Unavailable

Hex. Flange Screw M10 X 25

207602544

$1.69

Open Clamp

513033047

$5.19

Hex. Flange Screw M6 X 16

207661644

$0.74

Reflective Sheet

709000157

$20.99

REFLECTIVE SHEET - Call your local BRP dealership

709000158

Unavailable

REFLECTIVE SHEET - Call your local BRP dealership

709000159

Unavailable
