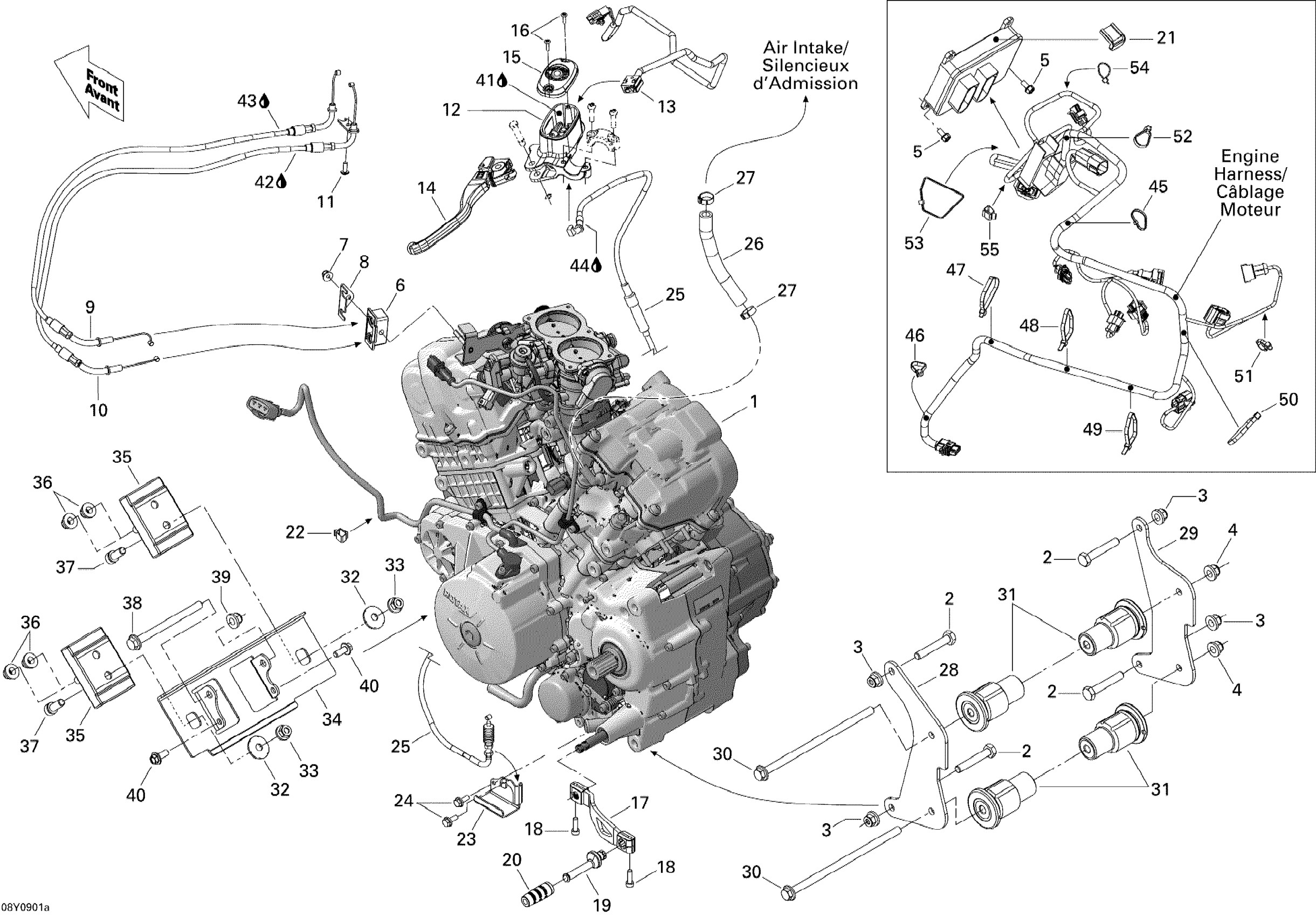

Can-Am Spyder GS Roadster with SM5 transmission, 2009 01- Engine 1_SM5 Manual Diagram

#

Description
Price

1

ENGINE 991 - Call your local BRP dealership | Long Block 421000708

707000963

Unavailable

2

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

3

Hex. Flange Elastic Nut M10

233201436

$2.11

4

Hex. Flange Elastic Nut M10

233201436

$2.11

5

Hex. Flange Screw M6 X 12

210261250

$1.90

6

INDEXING BLOCK - Call your local BRP dealership

707000609

Unavailable

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

FIXATION PLATE - Call your local BRP dealership

707000610

Unavailable

9

THROTTLE CABLE - Call your local BRP dealership

707001208

Unavailable

10

THROTTLE CABLE - Call your local BRP dealership

707001209

Unavailable

11

Torx Screw M5 X 14

250000742

$1.47

12

CLUTCH LEVER ASS'Y - Call your local BRP dealership | Includes 12 to 16

707000849

Unavailable

13

SWITCH - Call your local BRP dealership

710002086

$93.99

14

CLUTCH LEVER - Call your local BRP dealership

707000623

Unavailable

15

COVER RESERVOIR - Call your local BRP dealership

707000616

Unavailable

16

Screw 8-32

250000342

$3.19

17

LEVER - Call your local BRP dealership

707000386

Unavailable

18

Socket Head Screw M6 X 22, Scotch Grip

514054626

$4.44

19

Adjustment Rod

707000455

$29.99

20

End Clutch Pedal

707000456

$8.89

21

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

22

Clip

414227300

$1.67

23

REVERSE CABLE SUPPORT - Call your local BRP dealership

420251565

Unavailable

24

Hex. Flange Screw M6 X 16

207661644

$0.74

25

CABLE REVERSE - Call your local BRP dealership

707000811

Unavailable

26

HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership

219704436

Unavailable

27

Oetiker Clamp

293650186

$3.99

28

LH SUPPORT - Call your local BRP dealership

707000510

Unavailable

29

RH SUPPORT - Call your local BRP dealership

707000512

Unavailable

30

HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership

250000286

Unavailable

31

RUBBER MOUNT - Call your local BRP dealership

707000516

Unavailable

32

Lock Washer

512056700

$3.17

33

Hex. Flange Elastic Nut M10

233201436

$2.11

34

Front Engine Support

707000452

Unavailable

35

RUBBER MOUNT - Call your local BRP dealership

707000441

Unavailable

36

Hex. Flange Elastic Nut M10

233201436

$2.11

37

Socket Head Screw M10 X 25

205002544

$1.48

38

Hex. Flange Screw M10 X 125

230602546

$7.41

39

Hex. Flange Elastic Nut M10

233201436

$2.11

40

Hex. Flange Screw M8 X 20

207682044

$1.15

41

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99

42

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

43

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

44

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

45

Tie Wrap 142 mm

293750002

$1.25

46

Tie-Rap 180 mm

414115200

$0.11

47

Tie-Rap 180 mm

414115200

$0.11

48

Tie-Rap 180 mm

414115200

$0.11

49

Tie-Rap 180 mm

414115200

$0.11

50

Tie-Rap 180 mm

414115200

$0.11

51

Tie-Rap 180 mm

414115200

$0.11

52

Tie-Rap 180 mm

414115200

$0.11

53

Tie Wrap 368 mm

293750008

$1.04

54

Tie-Rap 180 mm

414115200

$0.11

55

Clip

414227300

$1.67
