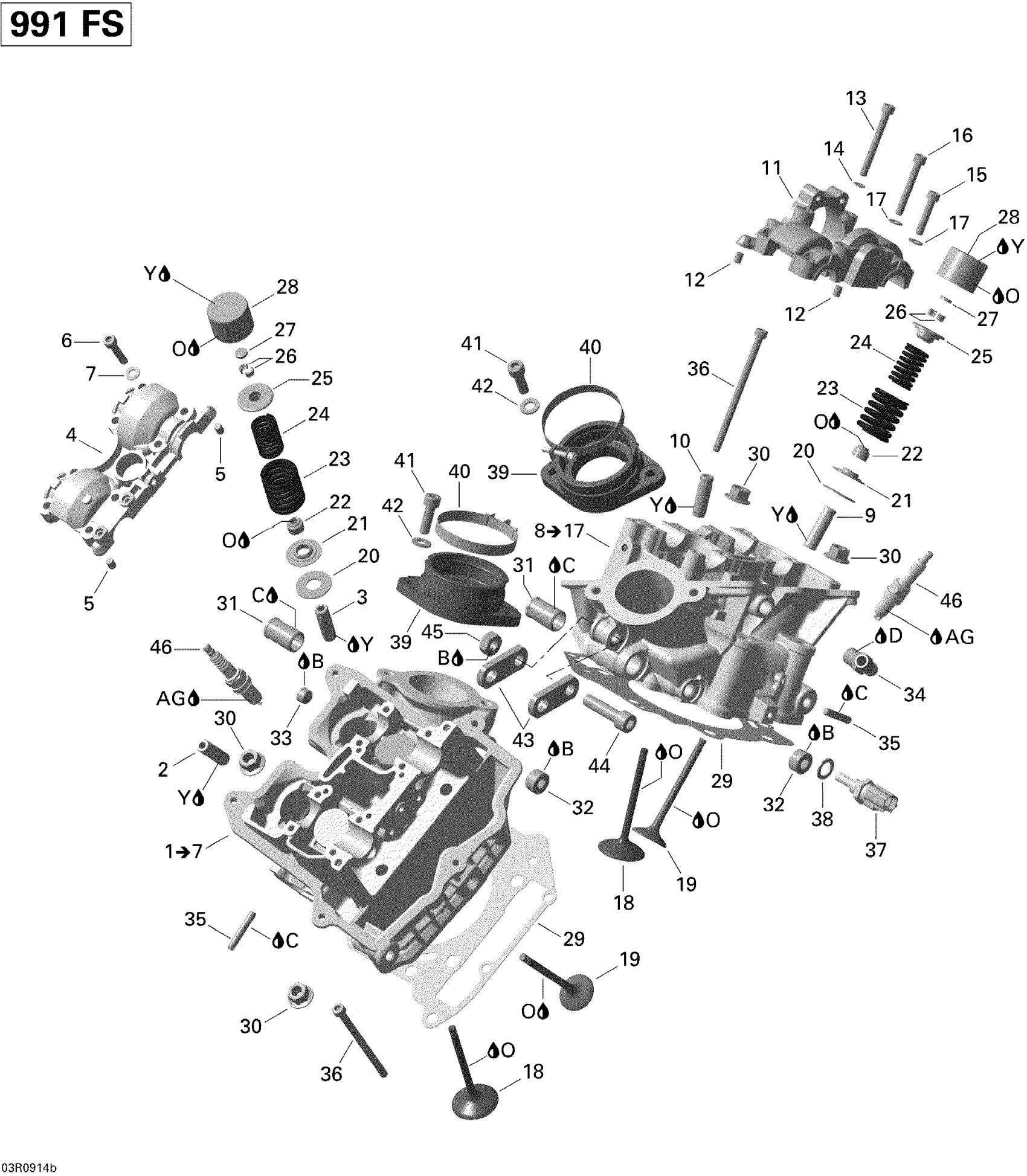

Can-Am Spyder GS Roadster with SM5 transmission, 2009 01- Cylinder Head Diagram

#

Description
Price

1

Front Cylinder Head Ass'y | Inludes 1 to 5

420413034

$872.99

2

VALVE GUIDE, EXHAUST - Call your local BRP dealership

420253926

Unavailable

3

VALVE GUIDE, INTAKE - Call your local BRP dealership

420253921

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Center Pin

420232210

$8.26

6

Socket Head Screw M6 X 30

205063044

$1.69

7

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

8

REAR CYLINDER HEAD ASS'Y - Call your local BRP dealership | Inludes 8 to 12

420413032

Unavailable

9

VALVE GUIDE, EXHAUST - Call your local BRP dealership

420253926

Unavailable

10

VALVE GUIDE, INTAKE - Call your local BRP dealership

420253921

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Center Pin

420232210

$8.26

13

Allen Screw M6 X 55

420240332

$5.35

14

SHIM - Call your local BRP dealership

420927863

$1.39

15

Socket Head Screw M6 X 30

205063044

$1.69

16

SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership

205064544

Unavailable

17

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

18

Exhaust Valve 31 mm

420254027

$88.99

19

Intake Valve, 38 mm

420254295

$37.99

20

THRUST WASHER - Call your local BRP dealership

420227980

Unavailable

21

Valve Spring Shim

420253967

$11.12

22

Seal

420230510

$15.81

23

VALVE SPRING, OUTER - Call your local BRP dealership

420238211

Unavailable

24

Valve Spring, Inner

420238201

$21.99

25

Valve Spring Retainer

420253957

$13.24

26

Valve Cotter

420253645

$7.41

27

SHIM 2.3 - Call your local BRP dealership

420253974

Unavailable

27

SHIM 2.325 - Call your local BRP dealership

420254030

Unavailable

27

Shim 2.35

420253975

$14.22

27

SHIM 2.375 - Call your local BRP dealership

420254031

Unavailable

27

SHIM 2.4 - Call your local BRP dealership

420253976

$13.49

27

SHIM 2.425 - Call your local BRP dealership

420254032

Unavailable

27

SHIM 2.45 - Call your local BRP dealership

420253977

$13.49

27

SHIM 2.475 - Call your local BRP dealership

420254033

Unavailable

27

SHIM 2.5 - Call your local BRP dealership

420253978

$13.49

27

SHIM 2.525 - Call your local BRP dealership

420254034

Unavailable

27

SHIM 2.55 - Call your local BRP dealership

420253979

Unavailable

27

SHIM 2.575 - Call your local BRP dealership

420254035

Unavailable

27

SHIM 2.6 - Call your local BRP dealership

420253980

$13.49

27

Shim 2.625

420254036

$7.51

27

SHIM 2.65 - Call your local BRP dealership

420253981

Unavailable

27

Shim 2.675

420254037

$7.51

27

SHIM 2.7 - Call your local BRP dealership

420253982

$13.49

27

SHIM 2.725 - Call your local BRP dealership

420254038

Unavailable

27

SHIM 2.75 - Call your local BRP dealership

420253983

Unavailable

27

SHIM 2.775 - Call your local BRP dealership

420254039

Unavailable

27

SHIM 2.8 - Call your local BRP dealership

420253984

Unavailable

27

SHIM 2.825 - Call your local BRP dealership

420254040

Unavailable

27

SHIM 2.85 - Call your local BRP dealership

420253985

Unavailable

27

SHIM 2.875 - Call your local BRP dealership

420254041

Unavailable

27

SHIM 2.9 - Call your local BRP dealership

420253986

Unavailable

27

SHIM 2.925 - Call your local BRP dealership

420254042

Unavailable

27

SHIM 2.95 - Call your local BRP dealership

420253987

Unavailable

27

SHIM 2.975 - Call your local BRP dealership

420254043

Unavailable

27

SHIM 3.0 - Call your local BRP dealership

420253988

Unavailable

27

SHIM 3.025 - Call your local BRP dealership

420254044

Unavailable

27

SHIM 3.05 - Call your local BRP dealership

420253989

Unavailable

28

Tappet Valve

420253990

$56.99

29

Cylinder Head Gasket

420650210

$24.99

30

Hex. Flange Nut M10

233101414

$4.97

31

Elbow Fitting

420224090

$19.99

32

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.41

33

Plug Screw M12 X 1.5

420840657

$8.57

34

Angular Tube

420922242

$14.83

35

Stud, M6 X 19/16

420440131

$2.85

36

Socket Head Screw M6 X 100

420241601

$3.17

37

Temperature Sensor

420274040

$57.99

38

Copper Washer

420250640

$0.98

39

Intake Flange

420267151

$46.49

40

Hose Clamp

420251830

$14.28

41

Socket Head Screw M8 X 25

205082544

$1.15

42

Flat Washer 8.4 mm

420250315

$1.15

43

SUPPORT BRACKET - Call your local BRP dealership

420251100

$10.99

44

SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership

420640581

Unavailable

45

Hex. Nut M10 X 1.5

232006414

$1.37

46

Spark Plug NGK DCPR9E

278002297

$6.35

B

Loctite 243, 10 ml

293800060

$21.49

C

Sealant Loctite 648

219703000

$45.99

D

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

O

Not Available As Spare Part - Friction Washer

Unavailable

Y

Petamo Grease, GHY133N, 400 g

420899271

$67.99

AG

Heat-Sink Paste P12, 90 ml

420897186

$38.99
