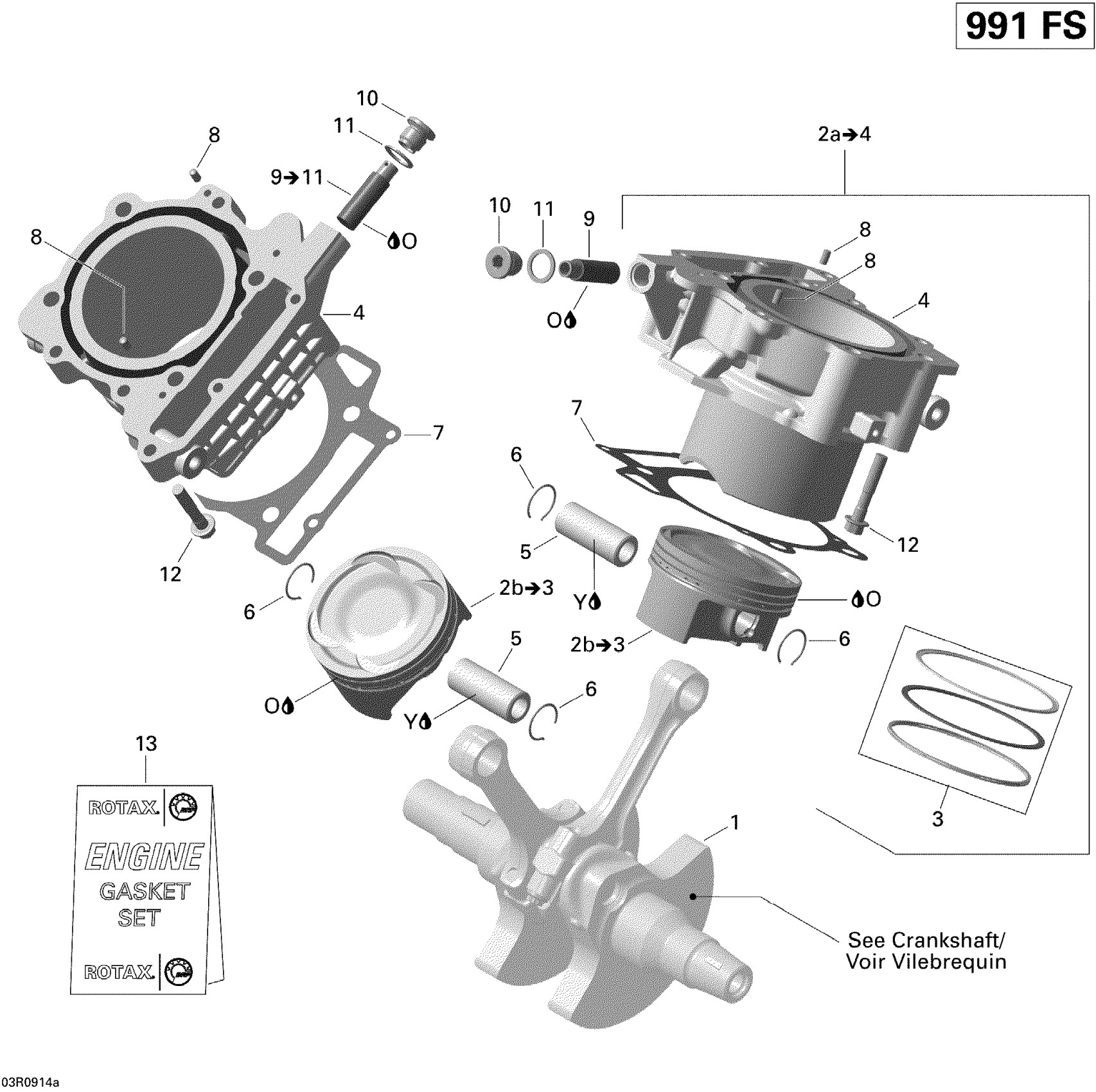

Can-Am Spyder GS Roadster with SM5 transmission, 2009 01- Cylinder And Piston Diagram

#

Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2a

Cylinder & Pistons | Includes 2a to 4

420623227

$628.49

2b

PISTON - Call your local BRP dealership | Includes 2b to 3

420684686

Unavailable

2b

PISTON ASS'Y, 96.956 MM - Call your local BRP dealership | Includes 2b to 3

420684687

Unavailable

3

Piston Ring Set

420295858

$90.49

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Piston Pin

420216222

$31.99

6

Piston Circlip

420245436

$4.89

7

Cylinder Gasket

420650390

$16.86

8

Drive Pin 5 X 10

420929650

$1.68

9

Chain Tensioner

415129408

$63.49

10

Plug Screw

420640457

$14.83

11

O-Ring

420430622

$4.44

12

HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership

420940637

Unavailable

13

Gasket Set, Engine

420685480

$280.99

O

Not Available As Spare Part - Friction Washer

Unavailable

Y

Petamo Grease, GHY133N, 400 g

420899271

$67.99
