Description

Price

10

WIRING HARNESS_CHASSIS - Call your local BRP dealership | Includes 10 to 969, A29B, A29C, A29D, A29E, A29F, A29G

710001653

Unavailable

10

Frame Harness Ass'y | Includes 10 to 969

515176382

Unavailable

21

FEMALE TERMINAL - Call your local BRP dealership

409004800

Unavailable

33

Wire Seal

278000999

$3.19

34

Female Terminal

409010100

$5.61

36

Female Terminal Housing, 1 Circuit

409010400

$7.62

44

Female Terminal

515175231

$4.39

61

Male Terminal | Europe Models

409012900

$3.28

62

Female Terminal

278001014

$3.28

65

HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models

710000576

Unavailable

68

Female Housing, 2 Circuits

409209500

$15.27

69

Female Housing, 3 Circuits

409209600

$35.99

70

Female Housing, 4 Circuits

409209700

$16.18

73

Wire Seal

278001013

$3.28

74

Plug

409013700

$4.55

107

Male Housing, 3 Circuits

278000997

$19.49

112

Female Terminal

278000632

$2.09

120

Female Connector, 2 Circuits

409207300

$9.85

124

Female Terminal Housing, 4 Circuits

278001473

$26.99

127

Male Lock, 3 Circuits

409207600

$3.19

132

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

136

SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership

278001744

Unavailable

186

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

188

Tubing 12 mm

409902000

Unavailable

196

Tie Wrap 142 mm

293750002

$1.25

203

Male Connector, 2 Circuits

278001113

$16.86

227

Male Terminal

409004300

$5.61

231

Female Housing, 2 Circuits

278000217

$9.59

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

258

Tubing 10 MM 1000MM Long

219704407

$2.79

260

Was 515175319 Tubing 22 mm

219704423

$14.99

301

Diode

409012700

$11.12

331

PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership

219704446

Unavailable

339

Male Housing, 1 Circuit

278001012

$16.86

355

Female Housing, 2 Circuits

515175658

$16.18

359

Male Housing

515175666

$15.49

365

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

366

Male Housing, 6 Circuits

515175673

$15.49

370

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

371

Male Wedge, 6 Circuits

515175678

$5.39

387

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

405

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

409

Plug

515175812

$2.19

410

Female Housing, 24 Circuits

515175801

$9.59

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$2.99

413

BLOCK - Call your local BRP dealership

515175804

Unavailable

415

Female Terminal

515175806

$0.99

420

Tie-Rap 180 mm

414115200

$0.11

426

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$9.12

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

Unavailable

460

Female Terminal

515175941

$2.69

475

Seal

710000643

$4.39

476

Seal

278001482

$3.19

484

Seal

415128501

$1.89

524

Heat Shrink Tubing 25 mm

512059668

Unavailable

538

FEMALE TERMINAL - Call your local BRP dealership

278001210

Unavailable

579

Wire Seal

710000504

$4.39

596

CAP - Call your local BRP dealership

710000670

Unavailable

641

Male Housing, 2 Circuits

710000667

$8.32

645

Male Terminal

515176164

$7.16

652

Female Housing

515176221

$15.99

653

Wire Seal

515176222

$16.86

654

Female Terminal Housing, 36 Circuits

515176223

$14.99

655

Terminal Support

515176224

$15.99

663

Relay, 30 AMP

515176774

$21.99

666

Little Fuse, 5 Amperes

710000742

$8.79

668

Little Fuse, 10 Amperes

710000744

$8.79

669

Little Fuse, 15 Ampere

710000745

$8.49

675

Fuse Box Base Ass´y

415129856

$50.99

684

Fuse Puller

710000781

$8.09

702

Female Terminal

710000836

$5.61

703

Female Terminal

710000837

$5.39

706

Cap

710000840

$5.89

732

Female Terminal

710000877

$9.12

734

Female Housing, 3 Circuits

710000879

$25.99

736

Seal

710000881

$17.99

737

Cap

710000882

$11.49

750

Terminal

710000913

$5.61

766

FEMALE TERMINAL - Call your local BRP dealership

278002164

Unavailable

770

Little Fuse, 3 AMP

710001008

$3.79

773

Fuse Cover

710001026

$21.99

784

MALE TERMINAL - Call your local BRP dealership

710001050

Unavailable

785

MALE TERMINAL - Call your local BRP dealership

710001051

Unavailable

787

FUSE HOLDER - Call your local BRP dealership

710001053

Unavailable

788

FUSE HOLDER - Call your local BRP dealership

710001054

Unavailable

789

FUSE HOLDER - Call your local BRP dealership

710001055

Unavailable

790

FUSE HOLDER - Call your local BRP dealership

710001057

Unavailable

805

Housing

710001132

$9.85

806

Lock

710001133

$4.39

807

Female Terminal

710001134

$7.69

808

Housing

710001138

Unavailable

809

Lock

710001139

Unavailable

810

Female Terminal

710001140

Unavailable

811

HOUSING - Call your local BRP dealership

710001124

Unavailable

812

LOCK - Call your local BRP dealership

710001125

Unavailable

813

Housing

710001126

Unavailable

814

Lock

710001127

Unavailable

815

Female Terminal

710001121

Unavailable

816

Housing

710003729

$22.49

817

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable

818

Wire Seal

710001118

$1.16

820

HOUSING - Call your local BRP dealership

710001128

Unavailable

822

HOUSING - Call your local BRP dealership

710001122

Unavailable

823

HOUSING - Call your local BRP dealership

710001123

Unavailable

824

Housing

710001136

$13.22

825

Wire Seal

710001135

$4.02

826

Female Terminal

710001137

$4.55

827

Female Terminal

710001119

$5.39

828

Housing

710003730

$14.83

830

FEMALE TERMINAL - Call your local BRP dealership

710001130

Unavailable

831

Female Terminal

710001131

$8.89

835

WIRE SEAL - Call your local BRP dealership

710001141

Unavailable

845

HOUSING - Call your local BRP dealership

710001155

Unavailable

846

LOCK - Call your local BRP dealership

710001156

Unavailable

847

Housing

710001157

$17.59

849

Wire Seal

710001159

$6.35

850

Female Terminal

710001160

$6.35

851

Housing

710001161

$11.12

852

Lock

710001162

$3.19

853

Wire Seal

710001163

$7.69

854

Female Terminal

710001164

$8.89

875

FUSE DECAL - Call your local BRP dealership

710000968

Unavailable

880

Cap

710001114

$18.49

894

Cap

710001225

$9.19

915

HOUSING - Call your local BRP dealership

710001315

Unavailable

921

Female Terminal

710001340

$5.89

928

Male Terminal

710001348

$12.99

933

CAP - Call your local BRP dealership

710001338

Unavailable

946

Foam

278002172

$5.89

959

MALE TERMINAL - Call your local BRP dealership

710001420

Unavailable

969

WIRE SEAL - Call your local BRP dealership

710001463

Unavailable

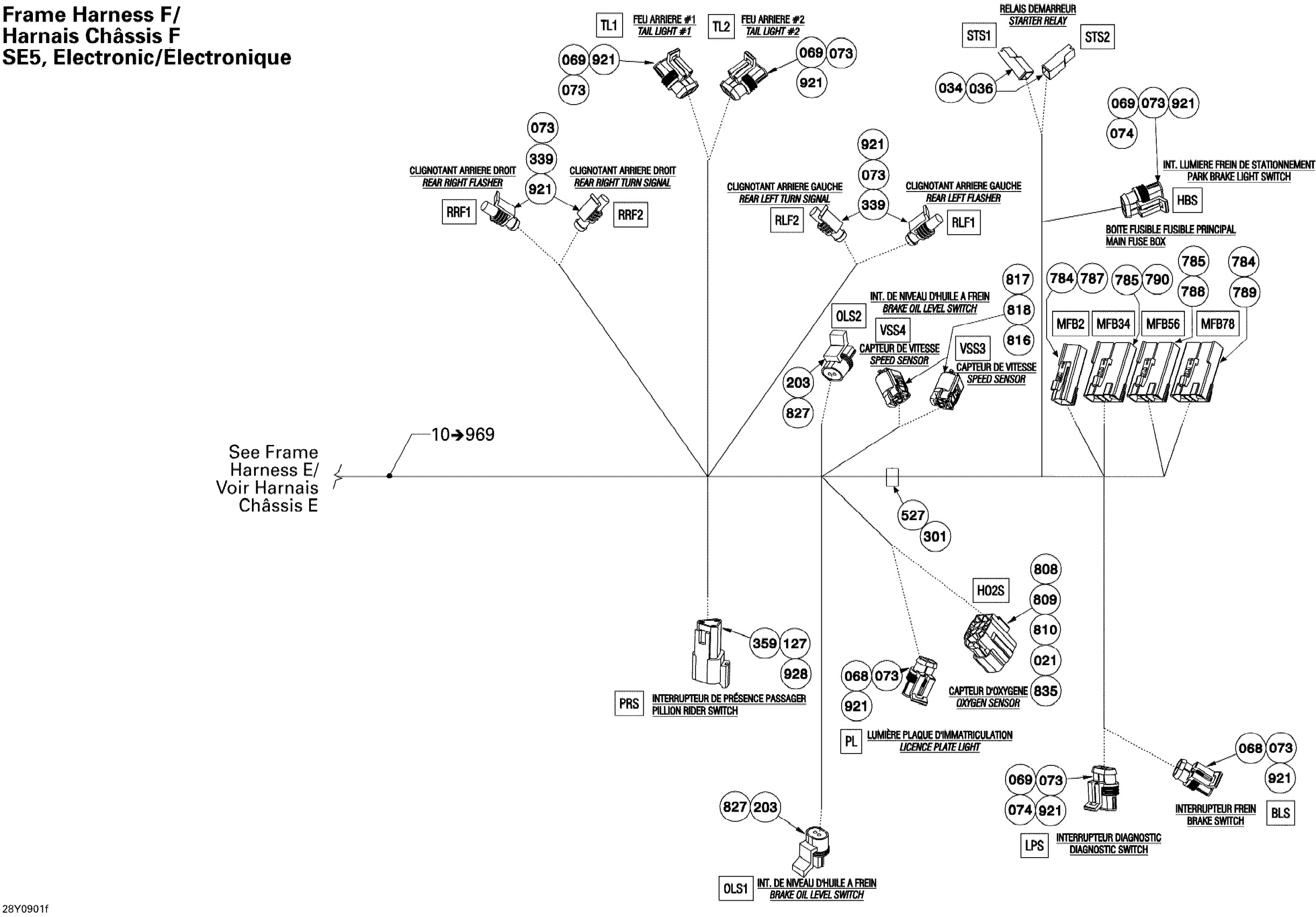

Can-Am Spyder GS Roadster with SE5 transmission, 2009 10- Frame Harness F_SE5 Electronic Diagram

WIRING HARNESS_CHASSIS - Call your local BRP dealership | Includes 10 to 969, A29B, A29C, A29D, A29E, A29F, A29G

Frame Harness Ass'y | Includes 10 to 969

FEMALE TERMINAL - Call your local BRP dealership

Wire Seal

Female Terminal

Female Terminal Housing, 1 Circuit

Female Terminal

Male Terminal | Europe Models

Female Terminal

HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models

Female Housing, 2 Circuits

Female Housing, 3 Circuits

Female Housing, 4 Circuits

Wire Seal

Plug

Male Housing, 3 Circuits

Female Terminal

Female Connector, 2 Circuits

Female Terminal Housing, 4 Circuits

Male Lock, 3 Circuits

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership

Vinyl Tubing, Low Temp 3000Mm Long

Tubing 12 mm

Tie Wrap 142 mm

Male Connector, 2 Circuits

Male Terminal

Female Housing, 2 Circuits

Tubing 6 Mm 3000Mm Long

Was 409901700 Tubing (9 mm)

Was 409901800 Tubing (13 mm)

Tubing 16 Mm 1000Mm Long

Was 409901600 Tubing 19mm

Tubing 10 MM 1000MM Long

Was 515175319 Tubing 22 mm

Diode

PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership

Male Housing, 1 Circuit

Female Housing, 2 Circuits

Male Housing

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

Male Housing, 6 Circuits

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

Male Wedge, 6 Circuits

Was 293550004 Dielectric Grease, 150 g

FEMALE TERMINAL - Call your local BRP dealership

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

FEMALE TERMINAL - Call your local BRP dealership

Plug

Female Housing, 24 Circuits

Retainer Block

Wire Seal

BLOCK - Call your local BRP dealership

Female Terminal

Tie-Rap 180 mm

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

SEAL - Call your local BRP dealership

Latch

LOCK - Call your local BRP dealership

COVER - Call your local BRP dealership

Female Terminal

Seal

Seal

Seal

Heat Shrink Tubing 25 mm

FEMALE TERMINAL - Call your local BRP dealership

Wire Seal

CAP - Call your local BRP dealership

Male Housing, 2 Circuits

Male Terminal

Female Housing

Wire Seal

Female Terminal Housing, 36 Circuits

Terminal Support

Relay, 30 AMP

Little Fuse, 5 Amperes

Little Fuse, 10 Amperes

Little Fuse, 15 Ampere

Fuse Box Base Ass´y
