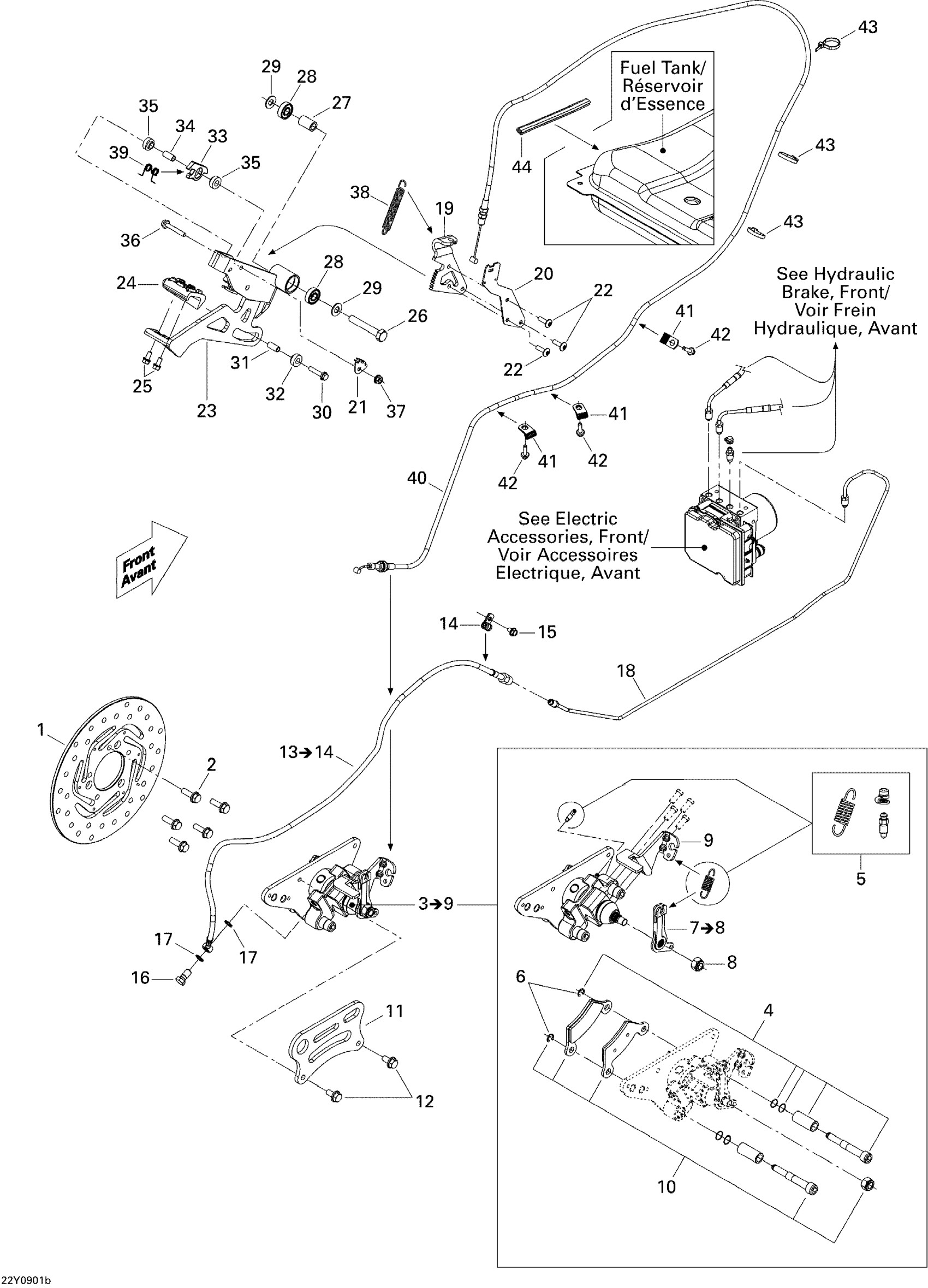

Can-Am Spyder GS Roadster with SE5 transmission, 2009 06- Hydraulic Brake, Rear SE5 Electronic Diagram

#

Description
Price

1

REAR BRAKE DISC - Call your local BRP dealership

705600591

$229.99

2

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

3

REAR BRAKE CALIPER ASS'Y - Call your local BRP dealership | Includes 3a to 5

219800127

Unavailable

4

BUSHING KIT - Call your local BRP dealership

219800032

Unavailable

5

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

6

RETAINING RING - Call your local BRP dealership

219800050

Unavailable

7

LEVER AND NUT KIT - Call your local BRP dealership | Includes 4a to 4b

219800051

Unavailable

8

NUT - Call your local BRP dealership

219800063

Unavailable

9

CABLE SUPPORT - Call your local BRP dealership

219800091

Unavailable

10

Rear Pad Kit

219800165

$77.99

11

REAR CALIPER SUPPORT - Call your local BRP dealership

705600430

Unavailable

12

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

13

REAR BRAKE LINE - Call your local BRP dealership | Includes 8 to 9

705600813

Unavailable

14

Clamp

293650256

$5.49

15

Hex. Flange Screw M6 X 12

210261250

$1.90

16

Banjo Bolt

414920500

$8.68

17

Washer

414920600

$1.90

18

REAR RIGID TUBE - Call your local BRP dealership

705600834

Unavailable

19

PEDAL PLATE - Call your local BRP dealership

705600776

Unavailable

20

SWITCH PLATE - Call your local BRP dealership

705600584

Unavailable

21

SWITCH STOPPER - Call your local BRP dealership

705600607

Unavailable

22

Torx Truss Screw M6 X 20

250000350

$5.29

23

BRAKE PEDAL - Call your local BRP dealership | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

705600677

Unavailable

23

Brake Pedal

705600634

Unavailable

24

Rubber Pad

705004933

$20.99

24

Rubber Pad

705002707

Unavailable

25

Hex. Flange Screw M6 X 12

210261250

$1.90

25

Hex. Forming Screw M6 X 10

210261050

$1.69

26

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

27

Bushing

705600541

$15.36

28

Bearing

705600458

$19.99

29

Flat Washer 10 mm

234001410

$1.26

30

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

31

Bushing | Model-RS

705600588

$14.81

32

Bushing | Model-RS

705600587

$9.95

33

Key | Model-RS

705600524

$16.99

34

Bushing | Model-RS

705600588

$14.81

35

Bushing | Model-RS

705600587

$9.95

36

Hex. Flange Screw M6 X 40

207664044

$2.22

37

Hex. Flange Nut M6

233061414

$1.68

38

SPRING - Call your local BRP dealership | Model-RS

707000543

Unavailable

39

Spring | Model-RS

705600525

$15.36

40

PARK BRAKE CABLE - Call your local BRP dealership

707000699

Unavailable

41

Bracket

415052400

$4.39

42

Hex. Flange Screw M6 X 12

210261250

$1.90

43

Tie-Rap 180 mm

414115200

$0.11

44

Trim 1000Mm Long

219704354

$15.99
