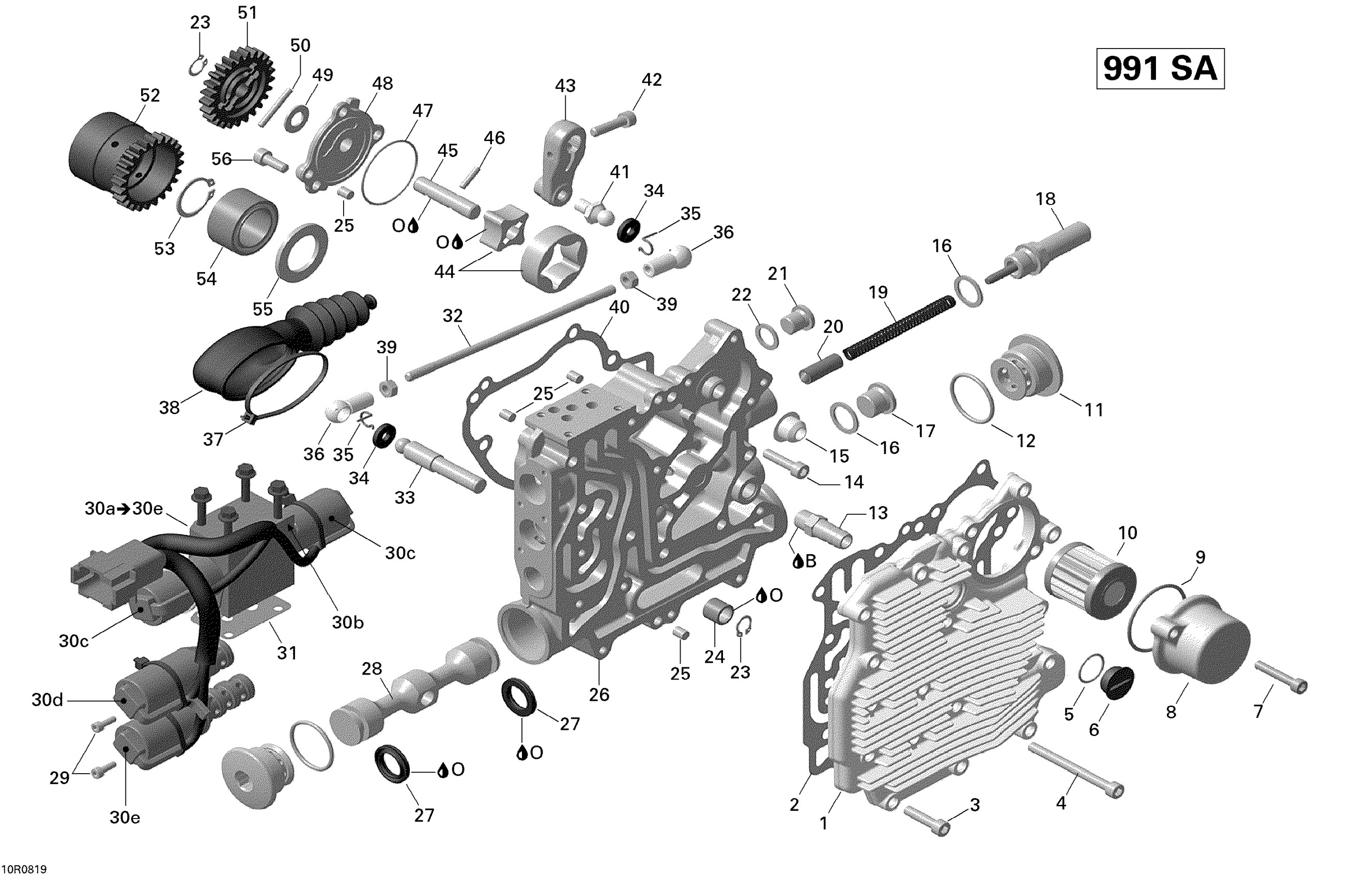

Can-Am Spyder GS 990 Semi-Automatic, 2008 05- Hydraulic Shifting Diagram

#

Description
Price

1

HYDRAULIC COVER - Call your local BRP dealership

420611500

Unavailable

2

Gasket

420430661

$20.99

3

Socket Head Screw M6 X 25

205062544

$1.15

4

Allen Screw, M6 X 65

420241261

$4.97

5

O-Ring

420250890

$3.06

6

Drain Plug

420241801

$7.41

7

Socket Head Screw M6 X 35

420241811

$1.79

8

Filter Cover Kit

219800313

$20.99

9

O-Ring

420430920

$2.75

10

Oil Filter

420256454

$13.77

11

Plug Screw

420441300

$27.49

12

O-ring

420430590

$7.65

13

NIPPLE 12/8 - Call your local BRP dealership

420840445

Unavailable

14

Socket Head Screw M6 X 25

205062544

$1.15

15

SLEEVE - Call your local BRP dealership

420647100

Unavailable

16

Gasket Ring

420430624

$1.89

17

PLUG SCREW M16 X 1.5 - Call your local BRP dealership

420240232

Unavailable

18

PLUG SCREW - Call your local BRP dealership

420441335

Unavailable

19

Spring

420238845

$15.87

20

Pressure Regulating Piston

420256510

$28.49

21

Plug Screw M12

420841923

$15.89

22

Aluminum Sealing Ring

420250016

$5.39

23

Snap Ring

420245330

$1.79

24

Needle Bushing

420232031

$15.74

25

Center Pin

420232210

$8.26

26

Hydraulic Housing | Includes 1 to 7

420611496

$328.49

27

Piston Lining

420431340

$15.49

28

Hydraulic Piston

420656260

$76.49

29

SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership

420440291

Unavailable

30a

Solenoid Valve Ass'y | Includes 14 to 18

420656635

$999.99

30b

Gasket

420650636

$12.11

30c

Solenoid Valve

420256548

$254.99

30d

Solenoid Valve

420256562

$439.99

30e

Solenoid Valve

420256553

$439.99

31

SOLENOID VALVE GASKET - Call your local BRP dealership

420650630

$11.49

32

Gear Shift Rod

420257890

$16.87

33

Guide Pin

420229050

$18.45

34

Gasket Ring

420260940

$5.82

35

Circlip

420245270

$7.09

36

Ball Joint

420651490

$15.87

37

CLAMP - Call your local BRP dealership

420866717

Unavailable

38

Bellow

420460670

$14.82

39

Hex. Nut M6

232061414

$0.53

40

Gasket

420431270

$18.54

41

Ball End

420651505

$16.87

42

Socket Head Screw M6 X 25

205062544

$1.15

43

Gear Shift Lever

420257881

$35.99

44

Oil Pump Rotor, Pressure

420256671

$33.99

45

Oil Pump Shaft

420620710

$17.99

46

Needle Pin

420232731

$4.01

47

O-Ring

420831160

$2.32

48

Oil Pump Cover

420612140

$27.49

49

THRUST WASHER - Call your local BRP dealership

420627345

Unavailable

50

Needle Pin

420232431

$4.39

51

Oil Pump Gear, 25 Teeth

420434610

$16.87

52

Oil Pump Gear, 24 Teeth

420434601

$56.99

53

CIRCLIP - Call your local BRP dealership

420945870

Unavailable

54

NEEDLE BEARING - Call your local BRP dealership

420632640

Unavailable

55

THRUST WASHER - Call your local BRP dealership

420227391

Unavailable

56

Socket Head Screw M6 x 16

420241237

$2.22

B

Loctite 243, 10 ml

293800060

$21.49

O

Not Available As Spare Part - Friction Washer

Unavailable
