Description

Price

1

Clutch Release Cover

420611512

$69.99

2

Nozzle

420262050

$11.07

3

Pressure Retaining Valve

420656374

$17.67

4

Spring

420939481

$4.99

5

Gasket Ring

420430624

$1.89

6

Screw Plug

420242151

$13.23

7

Socket Head Screw M5 X 25

420240187

$5.40

8

Gasket

420651242

$15.88

9

Gasket Ring

420430624

$1.89

10

BANJO BOLT - Call your local BRP dealership

420640848

$15.99

11

Oil Line Ass'y

420656210

$84.99

12

Cylinder Sleeve

420656520

$45.99

13

O-Ring

420950981

$12.16

14

Compression Spring

420238770

$10.49

15

Hydraulic Piston

420656125

$58.49

16

Piston Lining

420431350

$19.99

17

Piston Lining

420431360

$20.49

18

Retaining Ring

420245230

$13.77

19

Nut M10 X 1

420242641

$18.49

20

O-Ring

420631890

$5.18

21

Cover, Hydraulic Piston

420626205

$20.49

22

Torx Flange Screw M6 X 20

420440207

$3.06

B

Loctite 243, 10 ml

293800060

$21.49

O

Not Available As Spare Part - Friction Washer

Unavailable

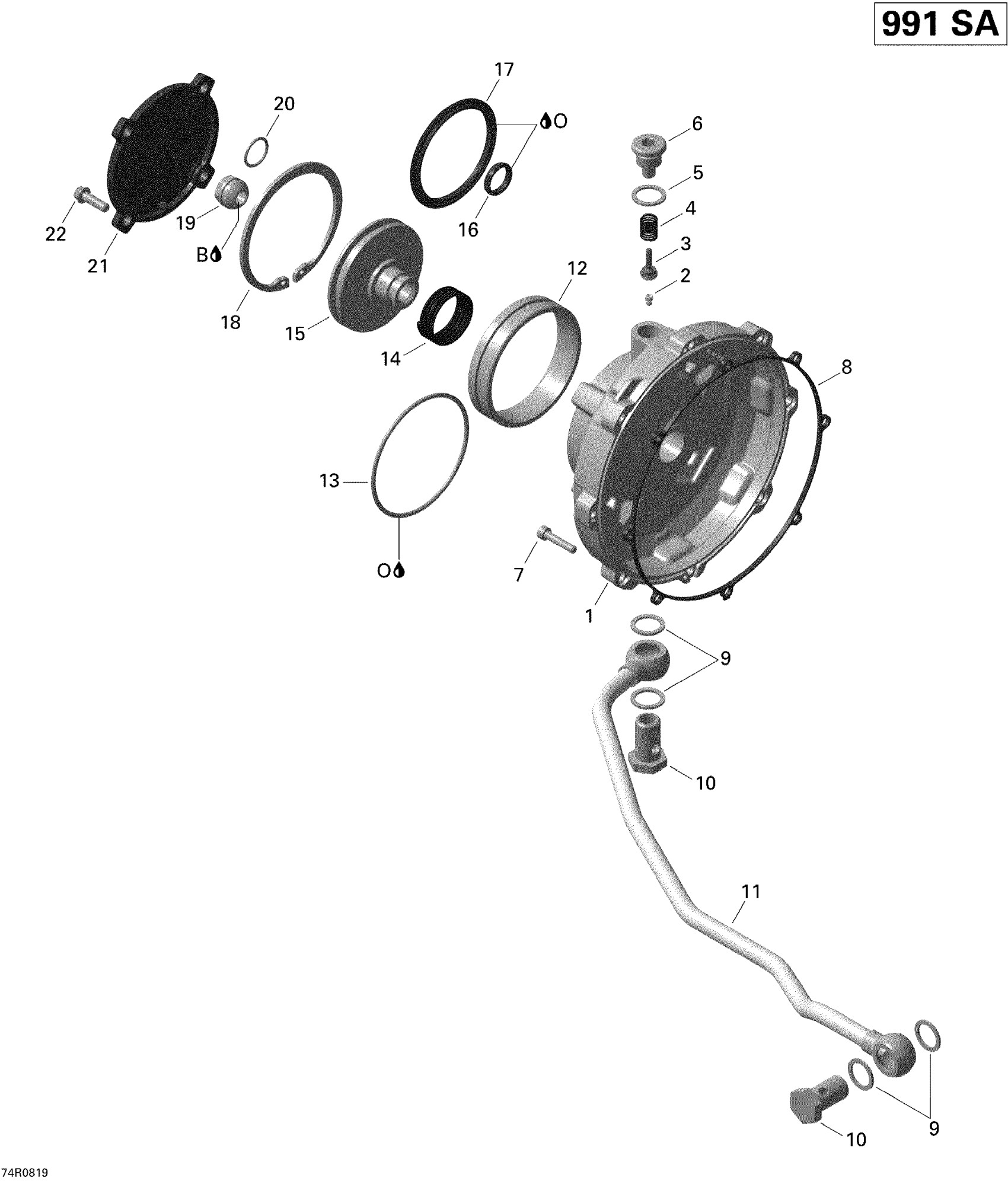

Can-Am Spyder GS 990 Semi-Automatic, 2008 05- Clutch Release Cover Diagram

Clutch Release Cover

Nozzle

Pressure Retaining Valve

Spring

Gasket Ring

Screw Plug

Socket Head Screw M5 X 25

Gasket

Gasket Ring

BANJO BOLT - Call your local BRP dealership

Oil Line Ass'y

Cylinder Sleeve

O-Ring

Compression Spring

Hydraulic Piston

Piston Lining

Piston Lining

Retaining Ring

Nut M10 X 1

O-Ring

Cover, Hydraulic Piston

Torx Flange Screw M6 X 20

Loctite 243, 10 ml

Not Available As Spare Part - Friction Washer
