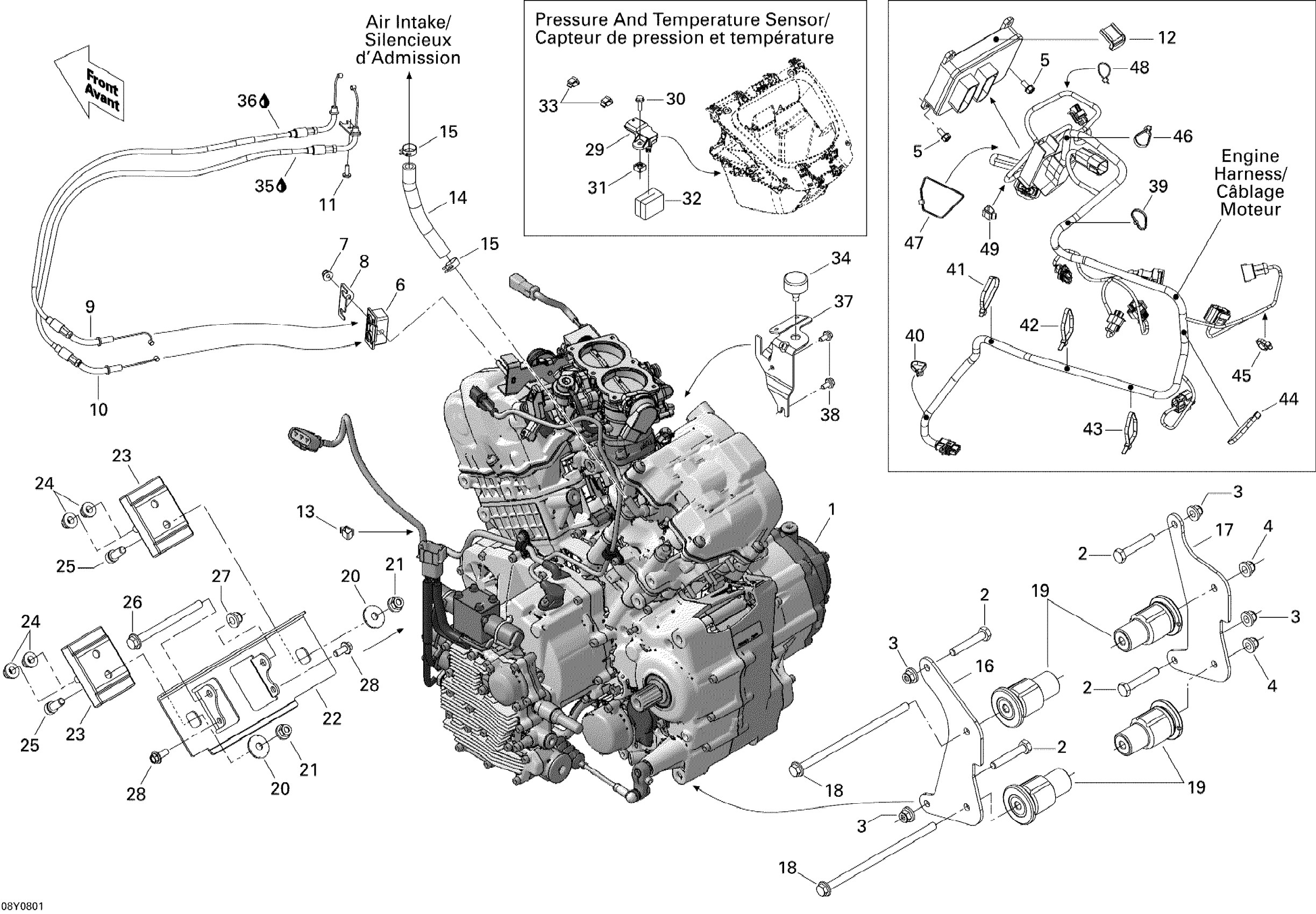

Can-Am Spyder GS 990 Semi-Automatic, 2008 01- Engine Diagram

#

Description
Price

1

ENGINE, ROTAX 991 SA - Call your local BRP dealership | Long Block 421000709

707000379

Unavailable

2

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

3

Hex. Flange Elastic Nut M10

233201436

$2.11

4

Hex. Flange Elastic Nut M10

233201436

$2.11

5

Hex. Flange Screw M6 X 12

210261250

$1.90

6

INDEXING BLOCK - Call your local BRP dealership

707000614

Unavailable

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

FIXATION PLATE - Call your local BRP dealership

707000610

Unavailable

9

THROTTLE CABLE - Call your local BRP dealership

707001208

Unavailable

10

THROTTLE CABLE - Call your local BRP dealership

707001209

Unavailable

11

Torx Screw M5 X 14

250000742

$1.47

12

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

13

Clip

414227300

$1.67

14

HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership

219704436

Unavailable

15

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

707000485

Unavailable

16

LH SUPPORT - Call your local BRP dealership

707000510

Unavailable

17

RH SUPPORT - Call your local BRP dealership

707000512

Unavailable

18

HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership

250000286

Unavailable

19

RUBBER MOUNT - Call your local BRP dealership

707000516

Unavailable

20

Lock Washer

512056700

$3.17

21

Hex. Flange Elastic Nut M10

233201436

$2.11

22

Front Engine Support

707000452

Unavailable

23

RUBBER MOUNT - Call your local BRP dealership

707000441

Unavailable

24

Hex. Flange Elastic Nut M10

233201436

$2.11

25

Socket Head Screw M10 X 25

205002544

$1.48

26

Hex. Flange Screw M10 X 125

230602546

$7.41

27

Hex. Flange Elastic Nut M10

233201436

$2.11

28

Hex. Flange Screw M8 X 20

207682044

$1.15

29

Pressure And Temperature Sensor

707000995

$88.99

30

Hex. Flange Screw M6 X 20

207662084

$1.69

31

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

32

Foam Filter

707000586

$5.50

33

Clip

414227300

$1.67

34

Rubber Stopper

708000758

$12.99

35

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

36

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

37

Intake Support

707000756

$11.07

38

Hex. Flange Screw M6 X 12

207661244

$2.11

39

Tie Wrap 142 mm

293750002

$1.25

40

Tie-Rap 180 mm

414115200

$0.11

41

Tie-Rap 180 mm

414115200

$0.11

42

Tie-Rap 180 mm

414115200

$0.11

43

Tie-Rap 180 mm

414115200

$0.11

44

Tie-Rap 180 mm

414115200

$0.11

45

Tie-Rap 180 mm

414115200

$0.11

46

Tie-Rap 180 mm

414115200

$0.11

47

Tie Wrap 368 mm

293750008

$1.04

48

Tie-Rap 180 mm

414115200

$0.11

49

Clip

414227300

$1.67
