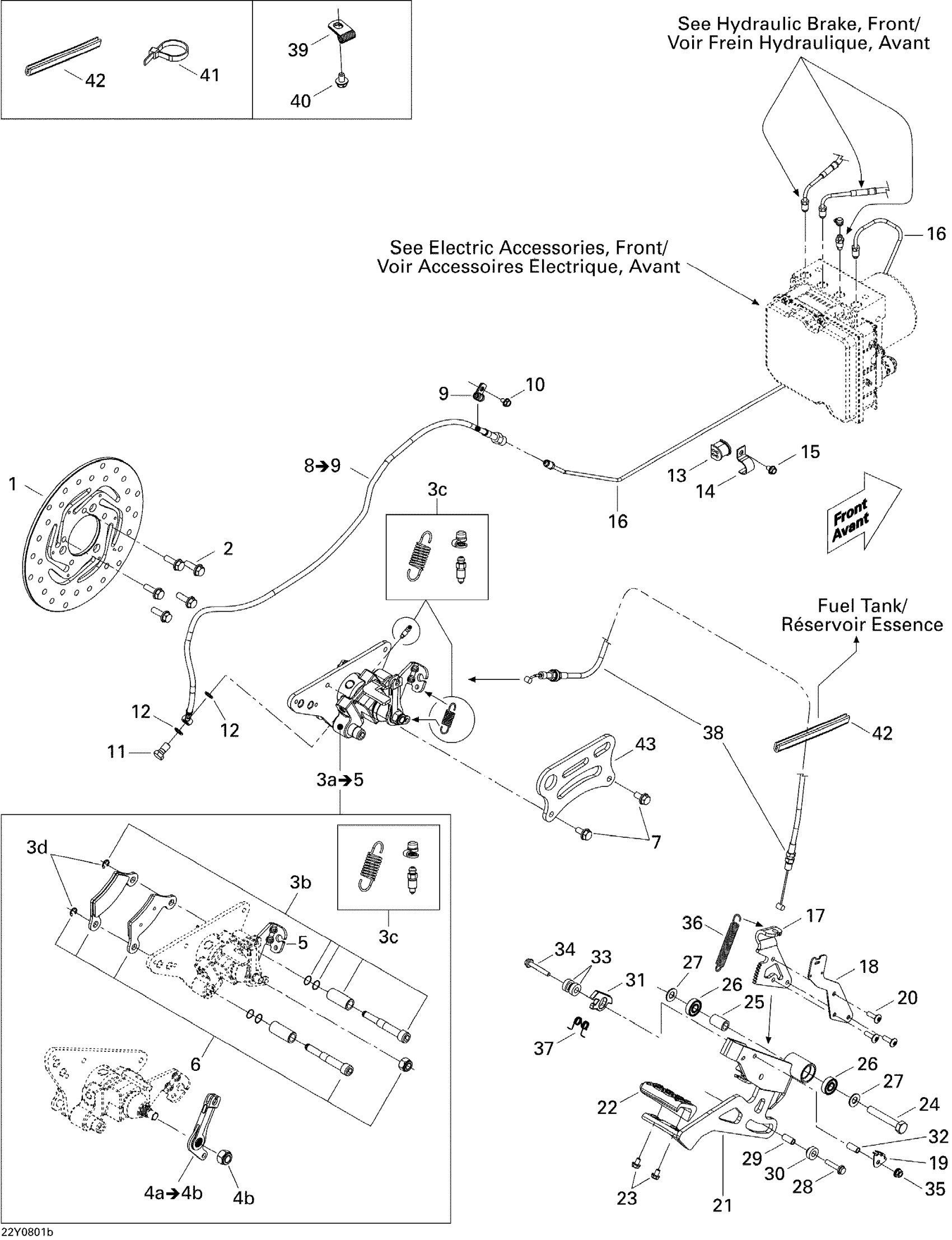

Can-Am Spyder GS 990 5-Speed, 2008 06- Hydraulic Brake, Rear Diagram

#

Description
Price

1

REAR BRAKE DISC - Call your local BRP dealership

705600591

$229.99

2

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

3a

REAR BRAKE CALIPER ASS'Y - Call your local BRP dealership | Includes 3a to 5

219800127

Unavailable

3b

BUSHING KIT - Call your local BRP dealership

219800032

Unavailable

3c

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

3d

RETAINING RING - Call your local BRP dealership

219800050

Unavailable

4a

LEVER AND NUT KIT - Call your local BRP dealership | Includes 4a to 4b

219800051

Unavailable

4b

NUT - Call your local BRP dealership

219800063

Unavailable

5

CABLE SUPPORT - Call your local BRP dealership

219800091

Unavailable

6

Rear Pad Kit

219800165

$77.99

7

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

8

REAR BRAKE LINE - Call your local BRP dealership | Includes 8 to 9

705600813

Unavailable

9

Clamp

293650256

$5.49

10

Hex. Forming Screw M6 X 10

210261050

$1.69

11

Banjo Bolt

414920500

$8.68

12

Copper Washer

705601628

$4.44

13

TUBE SUPPORT - Call your local BRP dealership

705600843

Unavailable

14

Clip

705600507

Unavailable

15

Hex. Forming Screw M6 X 10

210261050

$1.69

16

REAR RIGID TUBE - Call your local BRP dealership

705600834

Unavailable

17

PEDAL PLATE - Call your local BRP dealership

705600776

Unavailable

18

SWITCH PLATE - Call your local BRP dealership

705600584

Unavailable

19

SWITCH STOPPER - Call your local BRP dealership

705600607

Unavailable

20

Torx Truss Screw M6 X 20

250000350

$5.29

21

Brake Pedal

705600634

Unavailable

22

Rubber Pad

705002707

Unavailable

23

Hex. Forming Screw M6 X 10

210261050

$1.69

24

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

25

Bushing

705600541

$15.36

26

Bearing

705600458

$19.99

27

Flat Washer 10 mm

234001410

$1.26

28

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

29

Bushing | Model-RS

705600588

$14.81

30

Bushing | Model-RS

705600587

$9.95

31

Key | Model-RS

705600524

$16.99

32

Bushing | Model-RS

705600588

$14.81

33

Bushing | Model-RS

705600587

$9.95

34

Hex. Flange Screw M6 X 40

207664044

$2.22

35

Hex. Flange Nut M6

233061414

$1.68

36

SPRING - Call your local BRP dealership | Model-RS

707000543

Unavailable

37

Spring | Model-RS

705600525

$15.36

38

PARK BRAKE CABLE - Call your local BRP dealership

707000699

Unavailable

39

Bracket

415052400

$4.39

40

Hex. Flange Screw M6 X 12

210261250

$1.90

41

Tie-Rap 180 mm

414115200

$0.11

42

Trim 1000Mm Long

219704354

$15.99

43

REAR CALIPER SUPPORT - Call your local BRP dealership

705600430

Unavailable
