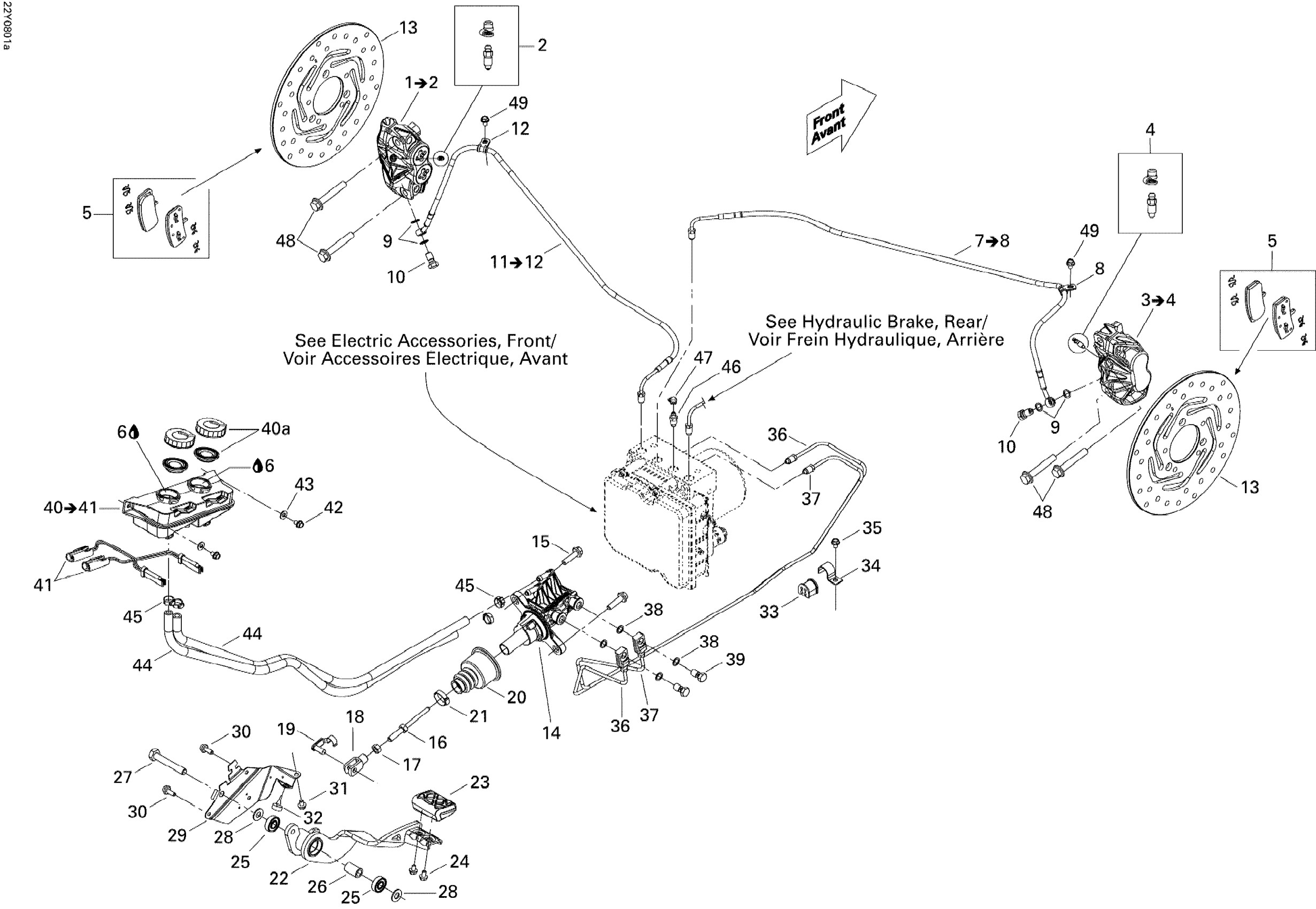

Can-Am Spyder GS 990 5-Speed, 2008 06- Hydraulic Brake, Front Diagram

#

Description
Price

1

LH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 1 to 2

219800125

Unavailable

2

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

3

RH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 3 to 4

219800126

Unavailable

4

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

5

Pad Kit (4 Pads)

219800164

$154.99

6

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99

7

RH FRONT FLEXIBLE BRAKE LINE - Call your local BRP dealership | Includes 7 to 8

705600852

Unavailable

8

Clamp

293650256

$5.49

9

Copper Washer

705601628

$4.44

10

Banjo Bolt

414920500

$8.68

11

LH FRONT FLEXIBLE BRAKE LINE - Call your local BRP dealership | Includes 11 to 12

705600853

Unavailable

12

Clamp

293650256

$5.49

13

FRONT BRAKE DISC - Call your local BRP dealership

705600435

Unavailable

14

Tandem Cylinder Master

705600722

$369.99

15

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

16

Piston Rod

705600468

$23.49

17

Hex. Nut M8

232081414

$0.72

18

Yoke

705600100

Unavailable

19

Pin Kit

219702305

$34.99

20

Bellow

705600716

$12.10

21

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

22

BRAKE PEDAL - Call your local BRP dealership | Model-RS

705600633

Unavailable

23

Rubber Pad

705002706

Unavailable

24

Hex. Forming Screw M6 X 10

210261050

$1.69

25

Bearing

705600458

$19.99

26

Bushing

705600541

$15.36

27

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

28

Flat Washer 10 mm

234001410

$1.26

29

TAB LOCK - Call your local BRP dealership

705600823

Unavailable

30

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

31

Hex. Forming Screw M6 X 10

210261050

$1.69

32

Rubber Stopper

708000759

$4.19

33

TUBE SUPPORT - Call your local BRP dealership

705600843

Unavailable

34

Clip

705600507

Unavailable

35

Hex. Forming Screw M6 X 10

210261050

$1.69

36

FRONT TANDEM RIGID TUBE - Call your local BRP dealership

705600721

Unavailable

37

REAR TANDEM RIGID TUBE - Call your local BRP dealership

705600742

Unavailable

38

Copper Washer

705601628

$4.44

39

Banjo Bolt

414920500

$8.68

40

OIL RESERVOIR - Call your local BRP dealership | Includes 40 to 41

219800324

Unavailable

40a

Cap And Diaphragm Kit

219800058

$19.49

41

Oil Level Sensor

515176508

$31.99

42

Hex. Forming Screw M6 X 10

210261050

$1.69

43

Flat Washer

224061121

$0.53

44

BOYAU 8MM. *HOSE-8MM. - Call your local BRP dealership

276000084

Unavailable

45

Crimp Clamp, 15.3-706R

293650047

$3.29

46

Bleeder Screw

705600502

$11.11

47

BLEEDER CAP - Call your local BRP dealership

705600554

Unavailable

48

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership

207506034

Unavailable

49

Hex. Forming Screw M6 X 10

210261050

$1.69
