Description

Price

100

LH Headlight | Includes 300a to 300a3

710008173

$154.99

100a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

100b

Rubber Cap Protector

219800457

$4.09

100c

Bulb Support

219800458

$2.49

110

Panel Nut M6 X 1.0

250100208

$1.46

120

Torx Screw M6 X 20

250000722

$1.68

200

RH Headlamp | Incl 200>200c

710005637

$154.99

200a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

200b

Rubber Cap Protector

219800457

$4.09

200c

Bulb Support

219800458

$2.49

210

Panel Nut M6 X 1.0

250100208

$1.46

220

Torx Screw M6 X 20

250000722

$1.68

2000a

LH Headlamp Support | Includes 300x1 to 300x1a

705012655

$72.99

2000b

Ball Joint

705016154

$6.29

2000c

Ball Joint

705016155

$14.49

2000d

LH Mobile Support

705016397

$6.49

2000e

Low Beam Ass'y

710006007

$349.99

2000e1

Halogen Bulb

415129249

$41.49

2000f

Torx-Truss Pt K40 X 16

250000759

$2.11

2000g

LH Cover

705013632

$20.99

2000h

Torx-Truss Pt K40 X 16

250000759

$2.11

2010

Screw PT K60 X 30

250000949

$2.11

2020

Torx Screw M6 X 20

250000722

$1.68

2030

Cap

515176370

$4.69

2100a

RH Headlamp Support | Includes 300ab1 to 300ab1a

705012656

$72.99

2100b

Ball Joint

705016154

$6.29

2100c

Ball Joint

705016155

$14.49

2100d

RH Mobile Support

705016398

$6.49

2100e

Low Beam Ass'y

710006007

$349.99

2100f

Torx-Truss Pt K40 X 16

250000759

$2.11

2100g

RH Cover

705013633

$20.99

2100h

Torx-Truss Pt K40 X 16

250000759

$2.11

2105

Canister Holder

709001060

$4.59

2110

Screw PT K60 X 30

250000949

$2.11

2120

Torx Screw M6 X 20

250000722

$1.68

2130

Cap

515176370

$4.69

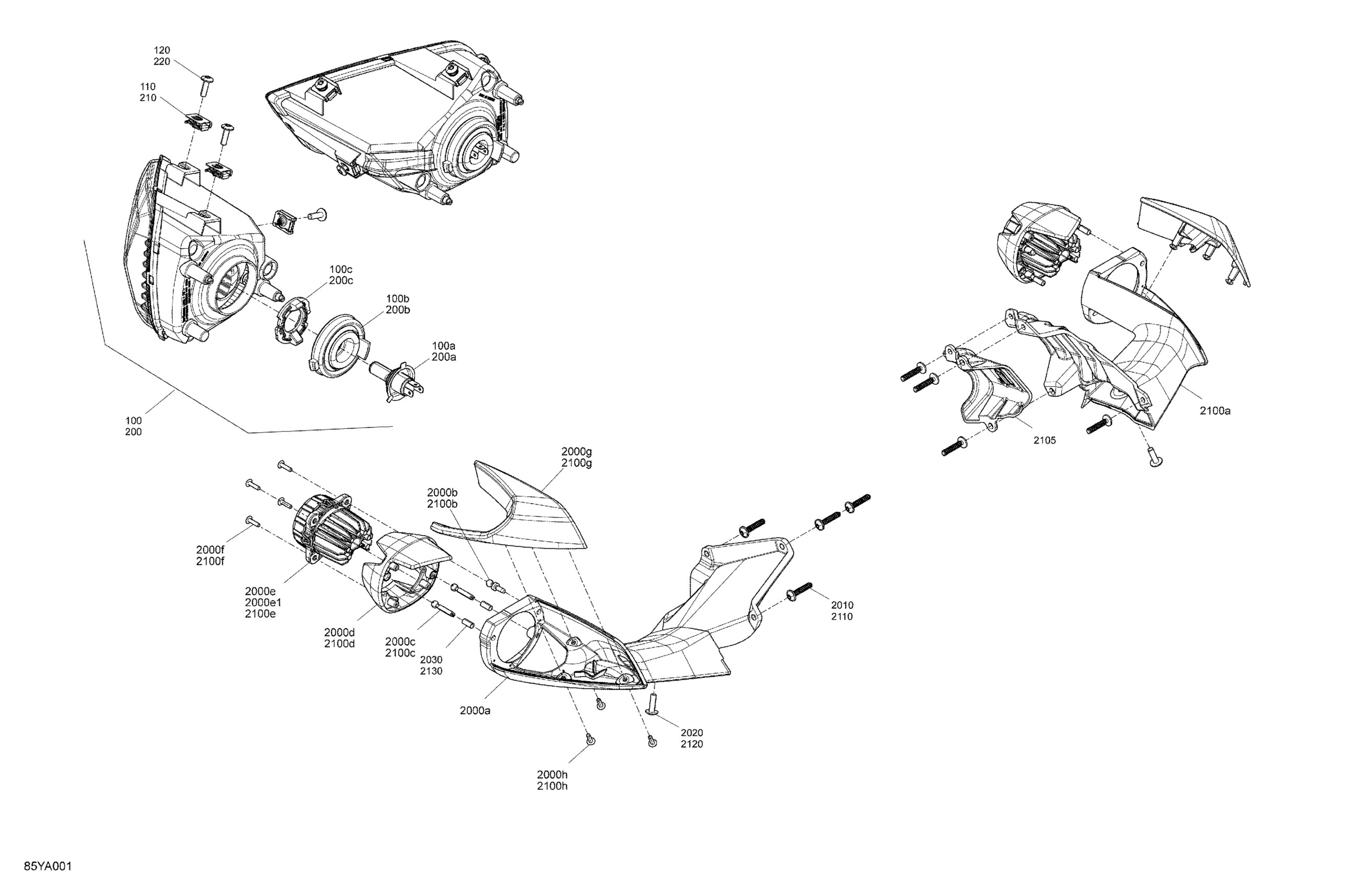

Can-Am 002 - RYKER STD 900 ACE 2021 08- Electric - Headlights Diagram

LH Headlight | Includes 300a to 300a3

Halogen Bulb, 60/55 W, 12 V ( H4 )

Rubber Cap Protector

Bulb Support

Panel Nut M6 X 1.0

Torx Screw M6 X 20

RH Headlamp | Incl 200>200c

Halogen Bulb, 60/55 W, 12 V ( H4 )

Rubber Cap Protector

Bulb Support

Panel Nut M6 X 1.0

Torx Screw M6 X 20

LH Headlamp Support | Includes 300x1 to 300x1a

Ball Joint

Ball Joint

LH Mobile Support

Low Beam Ass'y

Halogen Bulb

Torx-Truss Pt K40 X 16

LH Cover

Torx-Truss Pt K40 X 16

Screw PT K60 X 30

Torx Screw M6 X 20

Cap

RH Headlamp Support | Includes 300ab1 to 300ab1a

Ball Joint

Ball Joint

RH Mobile Support

Low Beam Ass'y

Torx-Truss Pt K40 X 16

RH Cover

Torx-Truss Pt K40 X 16

Canister Holder

Screw PT K60 X 30

Torx Screw M6 X 20

Cap
