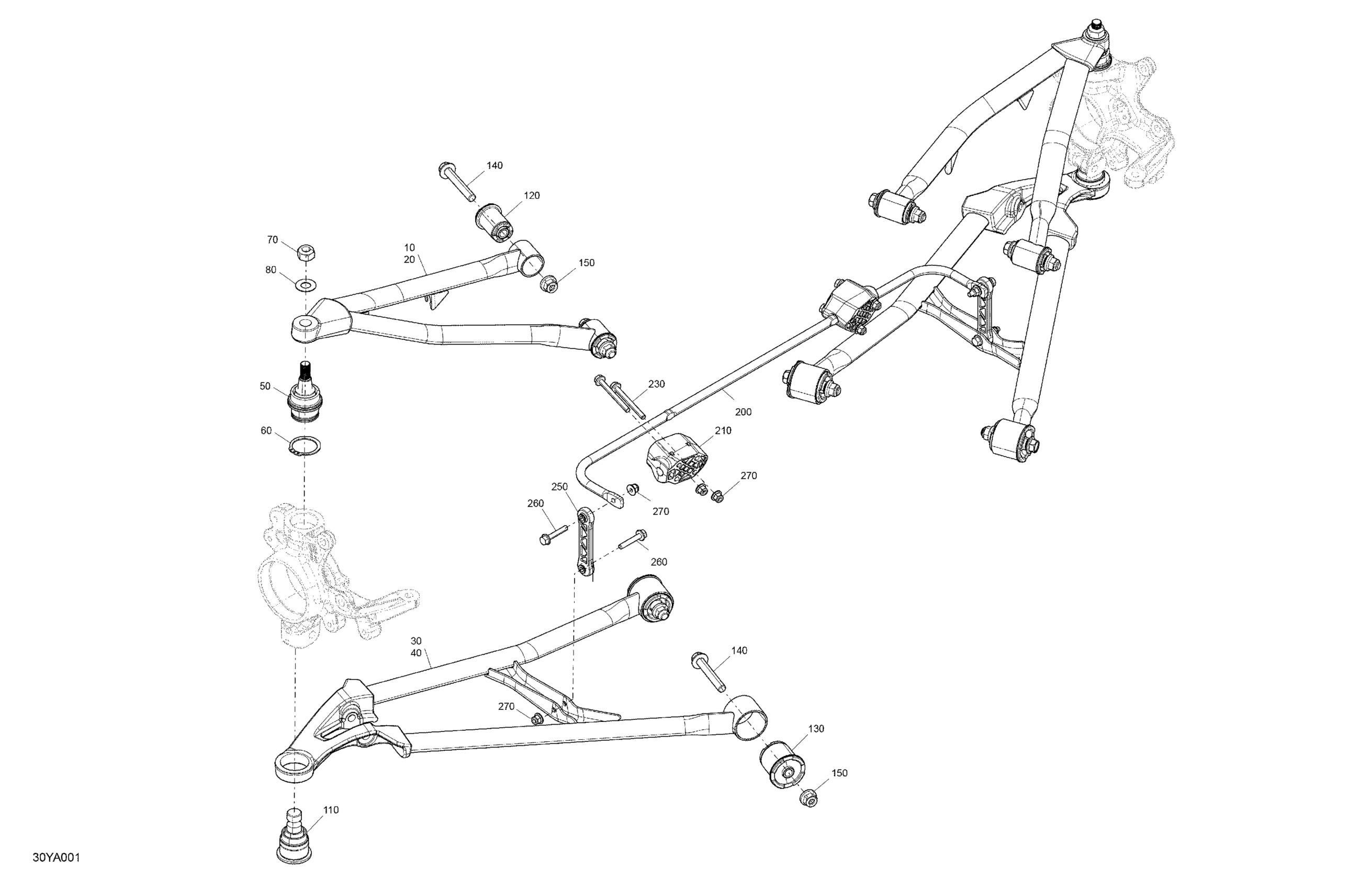

Can-Am 002 - RYKER STD 900 ACE 2021 05- Suspension - Front Diagram

#

Description
Price

10

LH Upper Arm

706202644

$158.99

20

RH Upper Arm

706202645

$158.99

30

LH Lower Suspension Arm

706204700

$158.99

40

RH Lower Suspension Arm

706204701

$158.99

50

Ball Joint

706203147

$53.99

60

Circlip

293370035

$2.64

70

Hex Elastic Nut M12 X 1.25

232521464

$2.11

80

Hardened Washer

706200281

$2.85

110

Ball Joint

706202508

$42.49

120

Upper Suspension Arm Bushing

706202549

$13.76

130

Lower Suspension Arm Bushing

706203143

$13.76

140

Hex. Flange Screw M10 X 65

207606556

$3.91

150

Flange Elastic Nut M10

233201466

$3.17

200

Sway Bar

706202710

$28.49

210

Bushing

706204465

$9.21

230

Hex. Flange Screw M6 X 60

207666044

$1.47

250

Sway Bar Double Joint Link

505072204

$21.99

260

Hex. Flange Screw M6 X 35

207663554

$2.11

270

Hex. Flange Elastic Nut M6

233261494

$1.58
