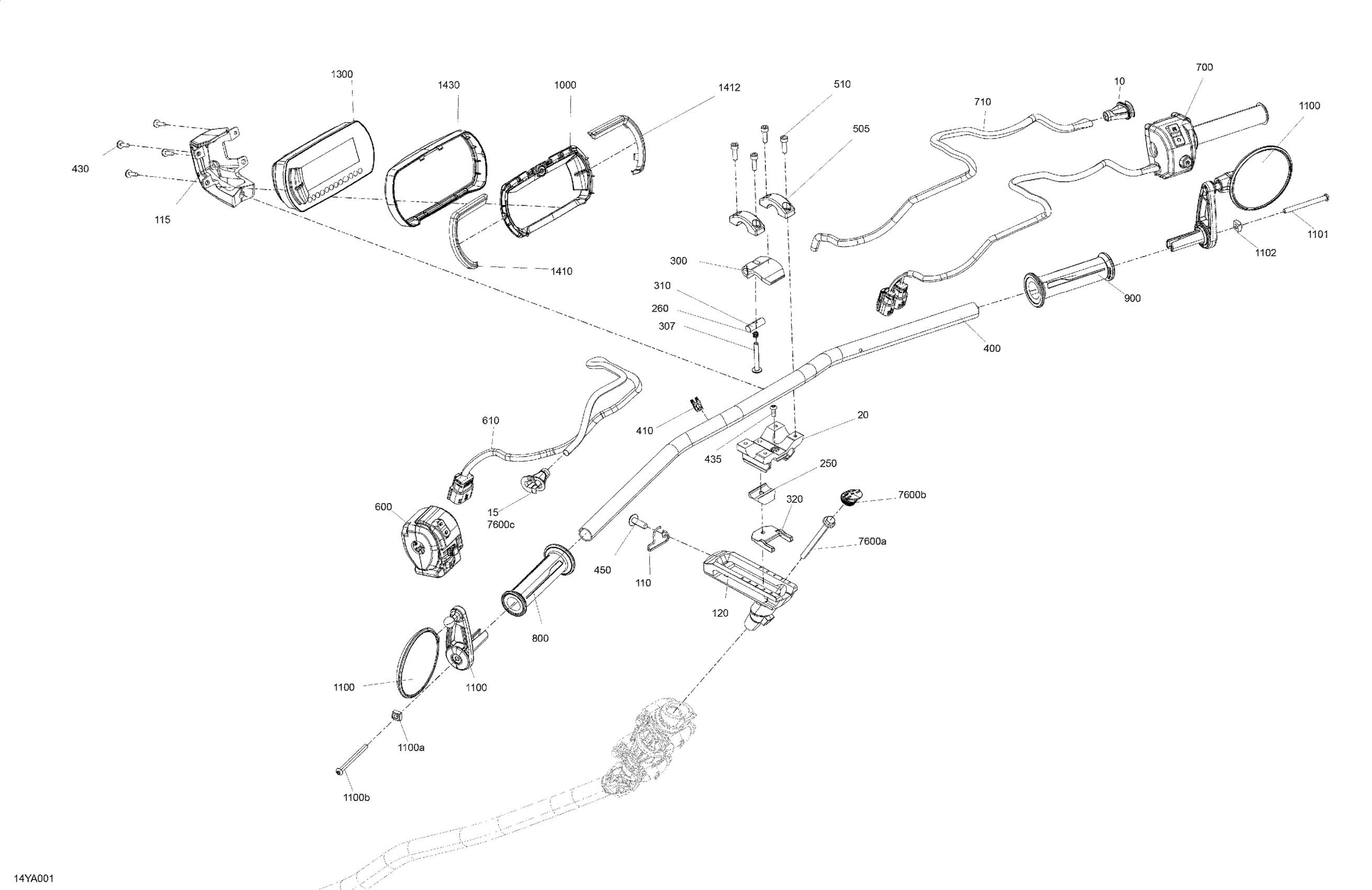

Can-Am 001 - RYKER STD 600 ACE 2021 03- Mechanic - Handlebar Diagram

#

Description
Price

10

Fairlead

709402502

$3.09

15

Fairlead

709402513

$3.09

20

Slide

709402452

$33.99

110

Steel Cable Support

709402267

$14.99

115

Deep Black, Cluster Support

709402243

$33.99

120

Deep Black, Stem

709402683

$129.99

250

Adjuster Block

506153164

$1.49

260

Compression Spring

709402427

$4.99

300

Deep Black, Release Lever

709402279

$24.49

307

Torx-Truss Screw M6 X 45

709402444

$4.65

310

Pin Lever

709402454

$8.50

320

Rocker Arm

709402273

$14.22

400

Carbon Black, Handle Bar

709402265

$41.49

410

Wire Guide

709402101

$3.09

430

Torx Screw K50 X 16

250000720

$1.69

435

Screw-Torx Button Head M5 X 14

235551454

$7.51

450

Torx Truss M8 X 25

250000874

$2.11

505

Deep Black, Handle Bar Clamp

709402255

$4.59

510

Socket Head Screw M6 X 20 S.Grip

205562054

$1.90

600

LH Multifunction Switch

710007370

$148.49

610

Braided Sleeve

415130141

$55.99

700

RH Multifunction Switch & Twist Throttle

710007369

$264.99

710

Braided Sleeve

415130141

$55.99

800

LH Handle Grip

709401984

$20.49

900

RH Handle Grip

709401985

$20.49

1000

Cluster Cap | Package DPS

709402093

$13.99

1100

Rear-View Mirror Ass'y

705018904

$19.49

1100a

Square Nut M6

232862412

$1.49

1100b

Torx Screw Button Head M6 X 70

235567084

$7.51

1101

Torx Screw Button Head M6 X 70

235567084

$7.51

1102

Square Nut M6

232862412

$1.49

1300

Multifunction Gauge

710005165

$224.99

1410

Deep Black, LH Trim Gauge

709402210

$28.99

1412

Deep Black, RH Trim Gauge

709402211

$28.99

1430

Rear Cluster Cap

709402092

$13.99

7600a

Hex. Flange Screw M8 X 100

230680054

$8.05

7600b

Cap

709402276

$0.99

7600c

Fairlead

709402513

$3.09
