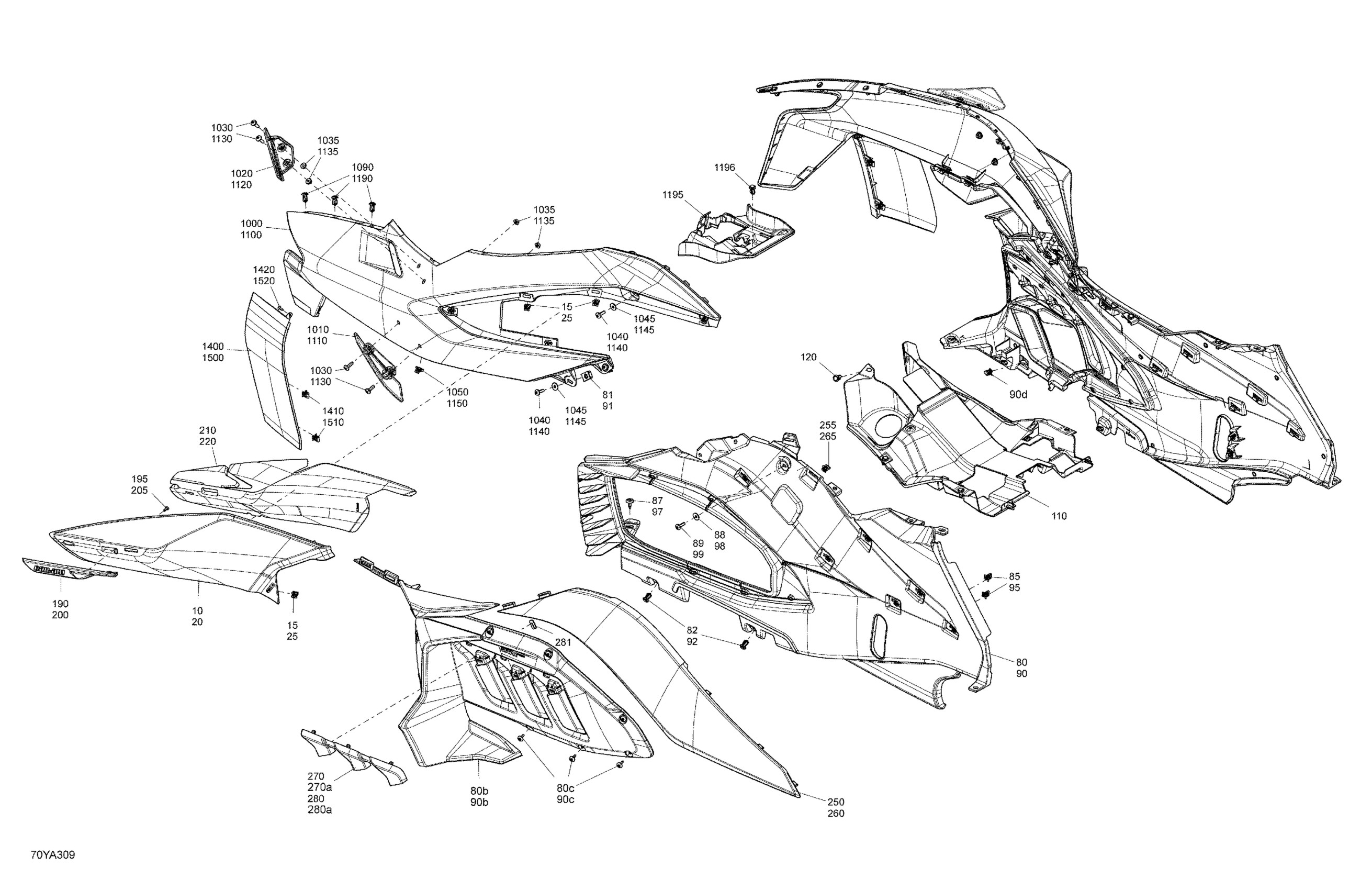

Can-Am 011 - RT LIMITED - Special Series - Highland Green, 2021 07- Body - System Diagram

#

Description
Price

10

Black, LH Access Cover

705013938

$73.99

15

Edge Clip

517302785

$0.88

20

Black, RH Access Cover

705013939

$73.99

25

Edge Clip

517302785

$0.88

80

LH Central Fairing Ass'y | Includes 80 to 80c

705017527

$209.99

80b

Deep Black, LH Deflector

705014614

$149.99

80c

Screw Type K-40 M4 X 16

250001105

$2.24

81

Panel Nut M6 X 1.0

250100208

$1.46

82

Tuflok Plastic Rivet

293150230

$1.47

85

Edge Clip

517302785

$0.88

87

Tuflock Phillips Plastic Screw

414745900

$1.69

88

Stainless Steel Flat Washer

234062670

$2.11

89

Torx Truss Screw M6 X 20

250000705

$2.11

90

RH Central Fairing Ass'y | Incl 90>90c

705016724

$209.99

90b

Deep Black, RH Deflector

705014615

$149.99

90c

Screw Type K-40 M4 X 16

250001105

$2.24

90d

Edge Clip

517302785

$0.88

91

Panel Nut M6 X 1.0

250100208

$1.46

92

Tuflok Plastic Rivet

293150230

$1.47

95

Edge Clip

517302785

$0.88

97

Tuflock Phillips Plastic Screw

414745900

$1.69

98

Stainless Steel Flat Washer

234062670

$2.11

99

Torx Truss Screw M6 X 20

250000705

$2.11

110

Tank Guard

705016790

$27.99

120

Tuflok Plastic Rivet

293150230

$1.47

190

Liquid Titan, LH Fairing Trim

708303704

$154.99

195

Torx Truss PT K40 x 12

250001131

$2.11

200

Liquid Titan, RH Fairing Trim

708303705

$154.99

205

Torx Truss PT K40 x 12

250001131

$2.11

210

LH Front Trim Acoustic Insulation

518331044

$19.99

220

RH Front Trim Acoustic Insulation

518331045

$19.99

250

Fairing Up L B-462

705016503

$244.99

255

Edge Clip

517302785

$0.88

260

Fairing Up R B-462

705016504

$249.99

265

Edge Clip

517302785

$0.88

270

Liquid Titan, RH Engine Trim | Includes 270 to 270a

708303696

$154.99

270a

Deep Black, RH Engine Trim

708303186

$22.49

280

Liquid Titan, LH Engine Trim | Includes 280 to 280a

708303695

$154.99

280a

Deep Black, LH Engine Trim

708303182

$23.99

281

Anchorage

705015930

$3.09

1000

Bare, LH Front Fairing

708200870

$214.99

1010

LH Lower Air Deflector

705015953

$50.99

1020

LH Upper Air Deflector

705014710

$45.99

1030

Torx Truss Screw M6 X 20

250000705

$2.11

1035

Hex. Flange Nut M6

233161414

$2.11

1040

Torx Truss Screw M6 X 20

250000705

$2.11

1045

Stainless Steel Flat Washer

234062670

$2.11

1050

Edge Clip

517302785

$0.88

1090

Tuflok Plastic Rivet

293150230

$1.47

1100

Highland Green, RH Front Fairing

708201052

$459.99

1110

RH Lower Air Deflector

705015954

$45.99

1120

RH Upper Air Deflector

705014711

$45.99

1130

Torx Truss Screw M6 X 20

250000705

$2.11

1135

Hex. Flange Nut M6

233161414

$2.11

1140

Torx Truss Screw M6 X 20

250000705

$2.11

1145

Stainless Steel Flat Washer

234062670

$2.11

1150

Edge Clip

517302785

$0.88

1190

Tuflok Plastic Rivet

293150230

$1.47

1195

Heat Shield

705014871

$18.49

1196

Tuflok Plastic Rivet

293150230

$1.47

1400

LH Air Scoop In

708200934

$85.99

1410

Edge Clip

517302785

$0.88

1420

Torx Truss PT K40 x 12

250001131

$2.11

1500

RH Scoop In

708201168

$44.99

1510

Edge Clip

517302785

$0.88

1520

Torx Truss PT K40 x 12

250001131

$2.11
