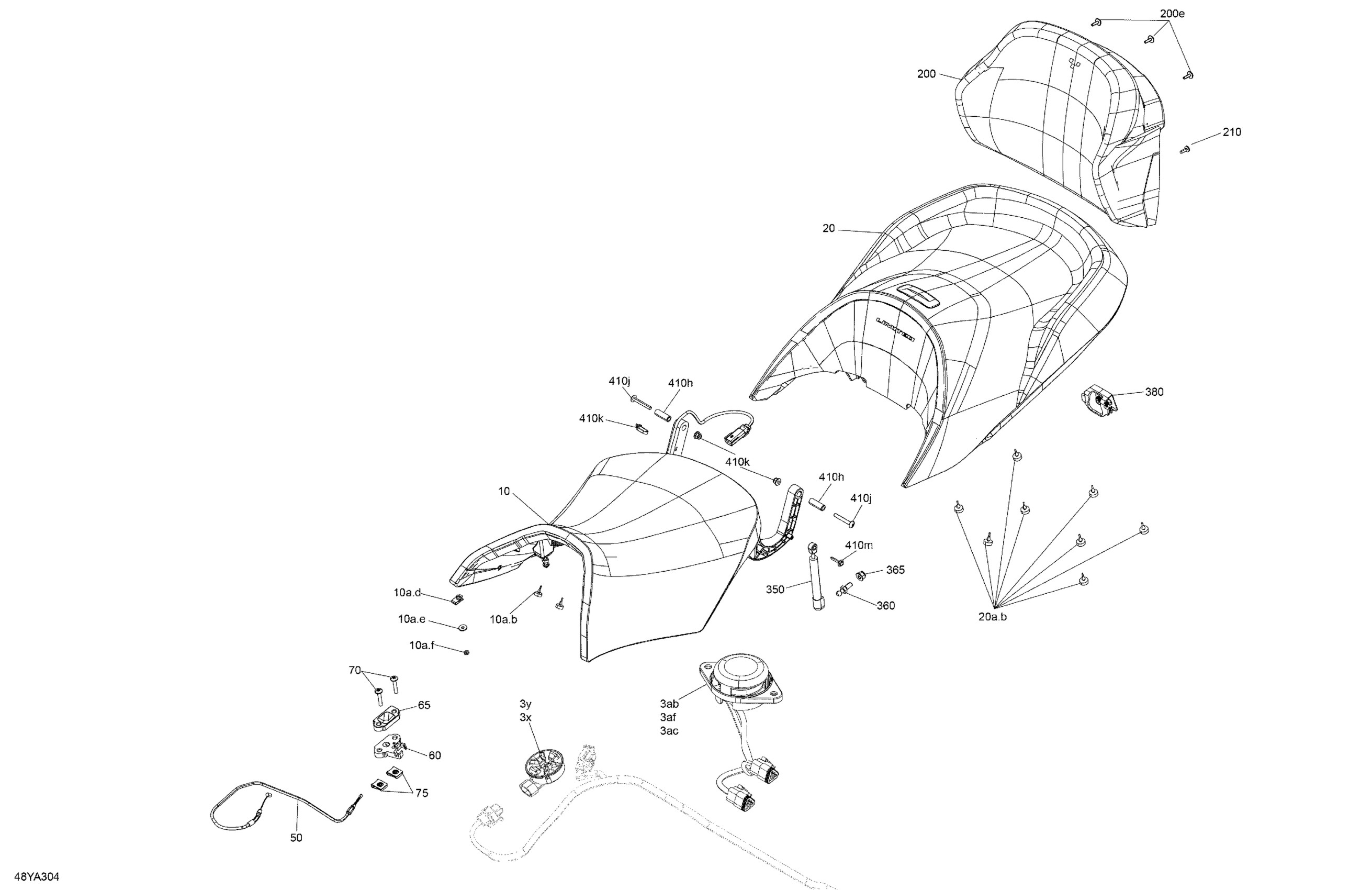

Can-Am 003 - RT LIMITED - Chrome Edition - Chalk Metallic, 2021 07- Body - Seat Diagram

Description

Price

3ab

Passenger Detection Switch

710008103

$76.99

3ac

Passenger Detection Switch

710008103

$76.99

3af

Passenger Detection Switch

710008103

$76.99

RH Passenger Radio Keypad

710006797

$100.49

RH Passenger Radio Keypad

710006797

$100.49

Heated Driver Seat Ass'y | Includes 10 to 10c1

708003339

$619.99

10a.b

Rubber Stopper

708000759

$4.19

10a.d

Panel Nut M6 X 1.0

250100198

$2.11

10a.e

Flat washer M6

250200164

$1.01

10a.f

Hex. Nut M6

232160600

$1.15

Heated Passenger Seat Ass'y | Includes 20 to 20c2

708003313

$529.99

20a.b

Rubber Stopper

708000759

$4.19

Heated Passenger Seat Ass'y | Includes 20 TO 20a2 With Built-in heated element

708003092

$309.99

Actuator Cable

517307507

$11.49

Latch

705007379

$28.99

Trim Latch

708003260

$4.69

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

Panel Nut M6 X 1.0

250100208

$1.46

200

Passenger Backrest | Includes 200 to 200f

708303613

$349.99

200e

Screw M4 X 16

250000725

$3.49

210

Torx Screw K50 X 16

250000720

$1.69

350

Shock Absorber

708003221

$83.99

360

Ball Head Stud

250300039

$7.51

365

Hex. Flange Elastic Nut M8

233281414

$1.47

380

Connector Cap | Includes 380 to 380d

708303050

$14.29

410h

Spacer

708000664

$6.49

410j

Torx Screw M6 X 45

250000748

$1.90

410k

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

410m

Plastite Screw Type K-40, M4 X 25

250000101

$3.49
