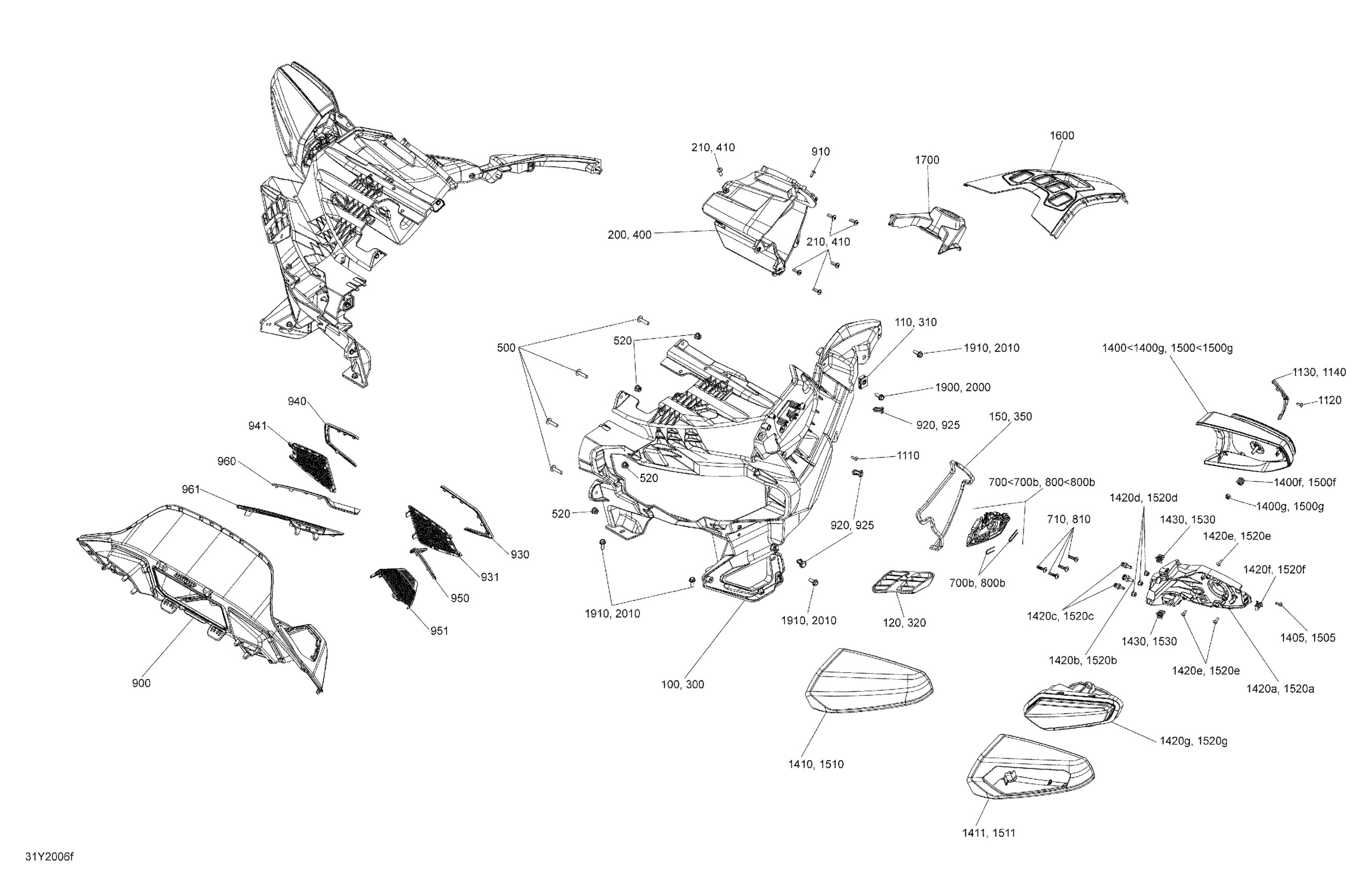

Can-Am 002 - RT LTD SE6, 2021 09- Body And Accessories Console, Mirrors & Supports Diagram

LH Console Support

708400548

$62.99

Panel Nut M6 X 1.0

250100208

$1.46

LH Fairing Support

708400459

$5.49

Seal 1000Mm Long

219704373

$8.26

LH Front Speaker Support

708400377

$16.95

Torx Screw K50 X 16

250000720

$1.69

RH Console Support

708400549

$67.99

Panel Nut M6 X 1.0

250100208

$1.46

RH Fairing Support

708400460

$6.09

Seal 1000Mm Long

219704373

$8.26

RH Front Speaker Support

708400378

$16.95

Torx Screw K50 X 16

250000720

$1.69

Torx Screw M6 X 25

250000758

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

LH Mirror Plate Support Ass'y | Included 1400 to 1400b

705008211

$27.99

Spring

705006661

$3.39

Torx Screw Truss Head K50X20 T20

250000760

$2.11

RH Mirror Plate Support Ass'y | Included 1500 to 1500b

705008210

$27.99

Spring

705006661

$3.39

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Dashboard

708400599

$114.99

Torx Truss Screw K40 X 12

250000577

$2.11

Tuflok Plastic Rivet

293150230

$1.47

Tuflok Plastic Rivet

293150230

$1.47

Deep Black, LH Upper Speaker Trim

708400382

$1.90

Silver, LH Upper Speaker Trim

708400384

$47.49

Deep Black, LH Upper Speaker Grille

708400357

$4.66

Deep Black, RH Upper Speaker Trim

708400383

$1.90

Silver, Upper RH Speaker Trim

708400385

$47.49

Deep Black, RH Upper Speaker Grille

708400358

$4.66

Deep Black, LH Lower Speaker Trim

708400390

$1.90

Silver, LH Lower Speaker Trim

708400392

$47.49

Deep Black, LH Lower Speaker Grille

708400355

$12.69

Deep Black, RH Lower Speaker Trim

708400391

$1.90

Silver, RH Lower Speaker Trim

708400393

$47.49

Deep Black, RH Lower Speaker Grille

708400356

$4.66

Torx Truss Screw K40 X 12

250000577

$2.11

Torx Truss Screw K40 X 12

250000577

$2.11

LH Front Rear View Mirror Trim

708400601

$4.79

Black, RH Rear View Mirror Trim

708400437

$4.69

LH Rear View Mirror Housing Ass'y | Included 3000 to 3000g

708400592

$144.99

Spring

705010625

$10.99

Hex. Elastic Stop Nut M6

232561600

$1.15

Torx Truss Screw K40 X 12

250000577

$2.11

Deep Black, LH Rear View Mirror Trim

708400465

$57.99

Asphalt Grey, LH Rear View Mirror Trim | Package CHROME, Models Asphalt Grey, Except Australia

708400477

$114.99

Chalk, LH Rear View Mirror Trim | Package CHROME, Models Chalk, Except Australia

708400479

$58.99

Petrol, LH Rear View Mirror Trim

708400481

$114.99

Deep Marsala, LH Rear View Mirror Trim

708400483

$114.99

Deep Black, LH Rear View Mirror Trim

708400505

$114.99

LH Mirror Support

708400224

$33.99

Flat Head Stud M5

705006733

$20.99

Stud Ball M5

708400538

$18.49

Flange Elastic Nut M5

233251434

$2.00

Torx Truss Screw K40 X 12

250000577

$2.11

Edge Clip

517302785

$0.88

LH Front Flasher Unit

710006197

$164.49

Clip

517306478

$1.09

RH Rear View Mirror Housing Ass'y | Included 3300 to 3300g

708400593

$144.99

Spring

705010625

$10.99

Hex. Elastic Stop Nut M6

232561600

$1.15

Torx Truss Screw K40 X 12

250000577

$2.11

Deep Black, RH Rear View Mirror Trim

708400466

$57.99

Asphalt Grey, RH Rear View Mirror Trim | Package CHROME, Models Asphalt Grey, Except Australia

708400478

$114.99

Trim_Rear View Mirror Fr B-442 | Package CHROME, Models Chalk, Except Australia

708400557

$57.99

Petrol, RH Rear View Mirror Trim

708400482

$114.99

Deep Marsala, RH Rear View Mirror Trim

708400484

$114.99

Deep Black, RH Rear View Mirror Trim

708400506

$114.99

RH Mirror Support

708400225

$33.99

Flat Head Stud M5

705006733

$20.99

Stud Ball M5

708400538

$18.49

Flange Elastic Nut M5

233251434

$2.00

Torx Truss Screw K40 X 12

250000577

$2.11

Edge Clip

517302785

$0.88

RH Front Flasher Unit

710006198

$164.49

Clip

517306478

$1.09

Black, Central Console Fairing

705014024

$33.99

Black, Console Swtich Housing

708400405

$6.88

Hex. Flange Screw M6 X 16

210261650

$1.67

Hex. Flange Screw M6 X 16

210261650

$1.67

Hex. Flange Screw M6 X 16

210261650

$1.67

Hex. Flange Screw M6 X 16

210261650

$1.67
