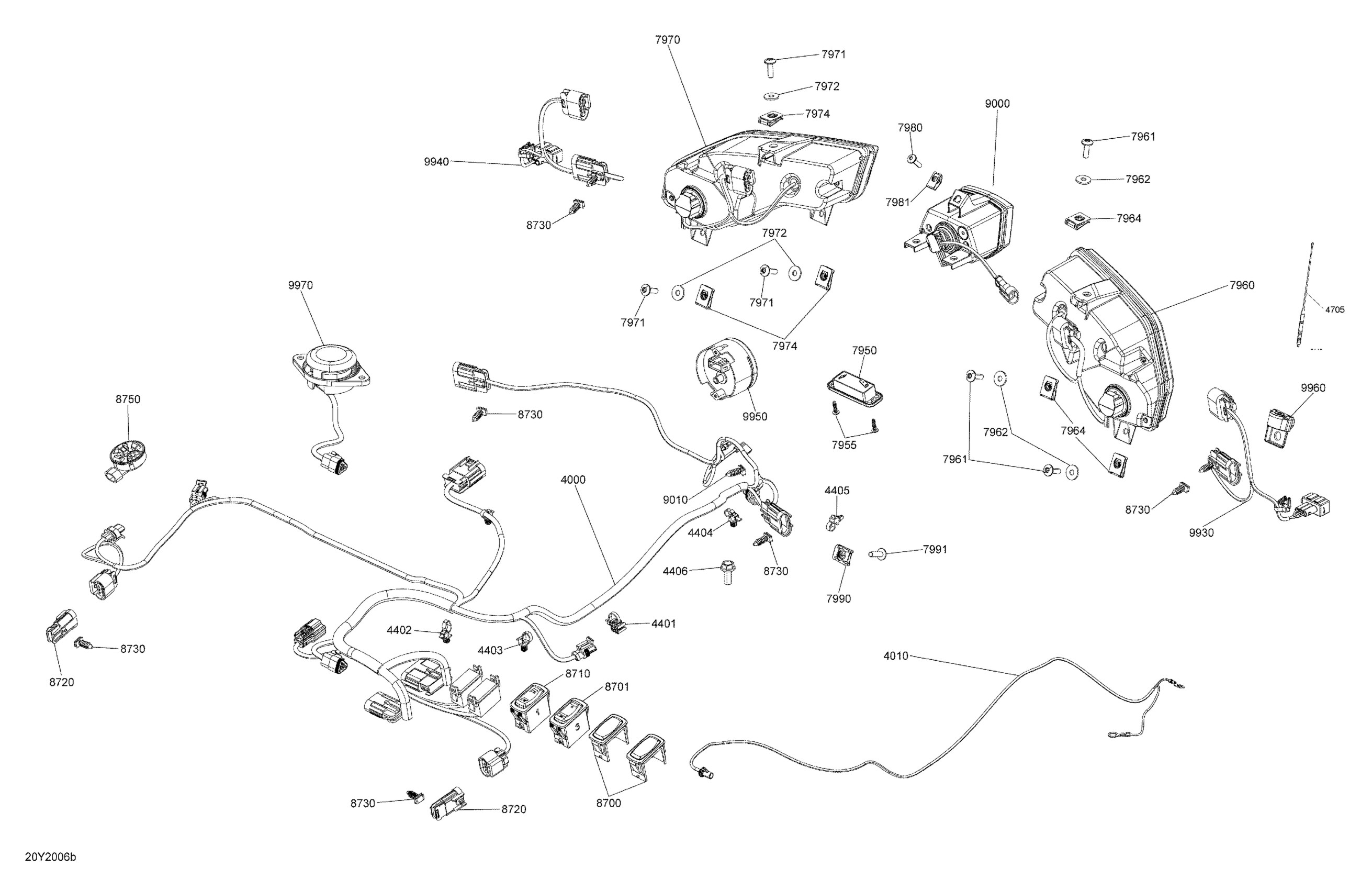

Can-Am 001 - RT STD SE6, 2021 10- Electrical System Rear Sides Storage Box Diagram

Description

Price

4000

Side Cargo Harness

710006508

$1,169.99

4010

Antenna Cable

710006811

$114.99

4401

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

4402

Dart Tie Rap 200MM

710003168

$7.09

4403

Dart Tie Rap 200MM

710003168

$7.09

4404

Dart Tie Rap 200MM

710003168

$7.09

4405

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

4406

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

4705

Antenna

710005434

$27.49

7950

License Light

710005501

$59.49

7955

Hex. Flange Screw K40 X 16

250001123

$2.11

7960

LH Tail Light | Includes 0k to 0k1

710007002

$158.99

7961

Torx Screw M6 X 20

250000722

$1.68

7962

Flat washer M6

250200164

$1.01

7964

Panel Nut M6 X 1.0

250100208

$1.46

7970

RH Tail Light | Includes 0m to 0m1

710007004

$158.99

7971

Torx Screw M6 X 20

250000722

$1.68

7972

Flat washer M6

250200164

$1.01

7974

Panel Nut M6 X 1.0

250100208

$1.46

7980

Panel Nut M5 X 0.8

250000958

$4.23

7981

Torx Truss Screw M5 X 20

250000715

$2.11

7990

Panel Nut M6 X 1.0

250100208

$1.46

7991

Torx Screw M6 X 20

250000722

$1.68

8700

Switch Hole Cap

517306808

$14.49

8701

Heated Grip Switch

710007706

$41.49

8710

Heated Seat Switch | Package LTD

710006703

$46.49

8720

Housing

710002593

$12.06

8730

Connector Holder

710002033

$3.39

8750

RH Passenger Radio Keypad

710006797

$100.49

9000

Back-Up Light | Includes 0k to 0k1

710007005

$70.99

9010

Connector Holder

710002033

$3.39

9930

Tailight Harness

710007142

$19.49

9940

Tailight Harness

710007142

$19.49

9950

Brake Light | Not shown

710006667

$126.99

9960

Antenna Support | Includes 0ah to 0ah1

708301797

$13.99

9970

Passenger Detection Switch

710008103

$76.99
