Description

Price

10

Swing Arm

706001574

$455.99

20

Insert

293450275

$12.99

30

Ball Bearing

293350115

$12.11

40

Swing Arm Axle

706001182

$93.99

50

Bolt M20

706001579

$16.87

60

Spacer

706001152

$9.49

90

Sleeve

706001366

$1.26

150

Shock Absorber Shaft

706000409

$49.99

160a

Shock Absorber

706001552

$116.49

160b

Shock Absorber Spring

706001542

$61.49

160c

Spring Stopper

503193781

$18.49

160d

Cap

503193782

$10.49

160e

Urethane Cushion

503191609

$18.49

190

Hex. Flange Screw M10 X 55

207605554

$7.62

200

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

205

Air Valve

706002797

$18.49

230

Pneumatic Connector

706004028

$19.49

235

Circlip

293370123

$2.69

240

Connector

706000869

$34.99

250

Hose 4.32Mm 3000Mm Long

219704415

$55.99

300

Air Damper Kit

219800175

$291.49

310

Support Plate

706001082

$19.49

320

Hex. Forming Screw M6 X 10

210261050

$1.69

330

Elbow 90°

706001018

$28.99

340

Jam Nut M20

250100119

$4.13

350

Hex. Flange Screw M8 X 75

207687544

$7.41

7020

Stainless, Torx Screw M6 X 30

250000842

$2.11

7030

Lower Belt Guard

705002092

$48.99

7050

Stainless Steel Flat Washer

234062670

$2.11

7080

Hex. Flange Elastic Nut M6

233261494

$1.58

7290

Belt Guard Moulding

705009446

$35.99

7310

Self-Adhesive Spacer

705015250

$3.99

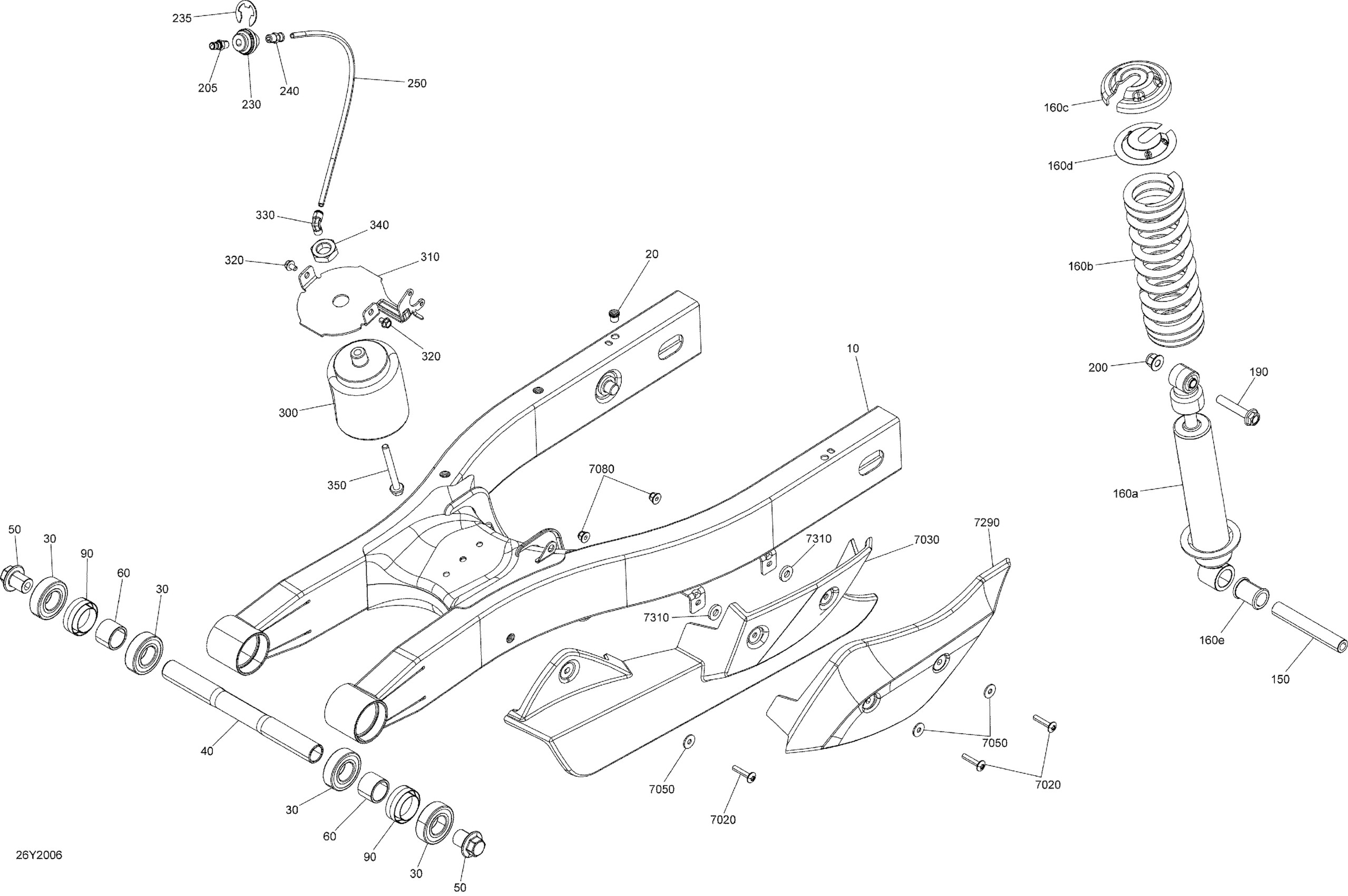

Can-Am 001 - RT STD SE6, 2021 08- Suspension, Rear Diagram

Swing Arm

Insert

Ball Bearing

Swing Arm Axle

Bolt M20

Spacer

Sleeve

Shock Absorber Shaft

Shock Absorber

Shock Absorber Spring

Spring Stopper

Cap

Urethane Cushion

Hex. Flange Screw M10 X 55

Hex. Flange Elastic M10 x 1.5

Air Valve

Pneumatic Connector

Circlip

Connector

Hose 4.32Mm 3000Mm Long

Air Damper Kit

Support Plate

Hex. Forming Screw M6 X 10

Elbow 90°

Jam Nut M20

Hex. Flange Screw M8 X 75

Stainless, Torx Screw M6 X 30

Lower Belt Guard

Stainless Steel Flat Washer

Hex. Flange Elastic Nut M6

Belt Guard Moulding

Self-Adhesive Spacer
