Description

Price

2b

Push Nut

250100034

$1.29

2e

LH Headlight | Includes 0b to 0b3

710006997

$239.99

2e.a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

2e.b

Rubber Cap Protector

219800280

$19.49

2e.c

Spring

219800281

$3.49

2f

Torx Truss Screw M6 X 16

250000721

$1.69

2g

E-Circlip

293370013

$0.65

2h

RH Headlight | Includes 0d to 0d3

710006998

$239.99

2h.a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

2h.b

Rubber Cap Protector

219800280

$19.49

2h.c

Spring

219800281

$3.49

2j

Torx Truss Screw M6 X 16

250000721

$1.69

2k

E-Circlip

293370013

$0.65

2m.a

Low Beam Ass'y

710006007

$349.99

2m.a.a

Halogen Bulb

415129249

$41.49

2m.b

Headlight Support

710007188

$15.49

2m.c

Adjustment Screw

710007200

$10.27

2m.d

Clip

293730095

$1.68

2m.e

Adapter

710007189

$3.59

2m.f

Torx-Truss Pt K40 X 16

250000759

$2.11

2m.g

Torx-Truss Pt K40 X 16

250000759

$2.11

2n.a

Low Beam Ass'y

710006007

$349.99

2n.a.a

Halogen Bulb

415129249

$41.49

2n.b

Headlight Support

710007188

$15.49

2n.c

Adjustment Screw

710007200

$10.27

2n.d

Clip

293730095

$1.68

2n.e

Adapter

710007189

$3.59

2n.f

Torx-Truss Pt K40 X 16

250000759

$2.11

2n.g

Torx-Truss Pt K40 X 16

250000759

$2.11

3b

LH Tail Light | Includes 0h to 0h1

710007001

$58.49

3c

RH Tail Light | Includes 0j to 0j1

710007003

$61.49

3d

Back-Up Light | Includes 0k to 0k1

710007005

$70.99

3e

Panel Nut M5 X 0.8

250000958

$4.23

3f

Torx Truss Screw M5 X 20

250000715

$2.11

3g

Stainless Steel Flat Washer M5

234052670

$1.01

3n

Amber, Rear Turn Signal | Includes 0u to 0u1

710007006

$83.49

6a

License Plate Light

710003349

$70.99

6a.a

Bulb 12V 10W | Not Shown

415129261

$2.46

6b

Elastic Flange Nut M5

233251494

$2.11

6c

Plate

710004815

$18.49

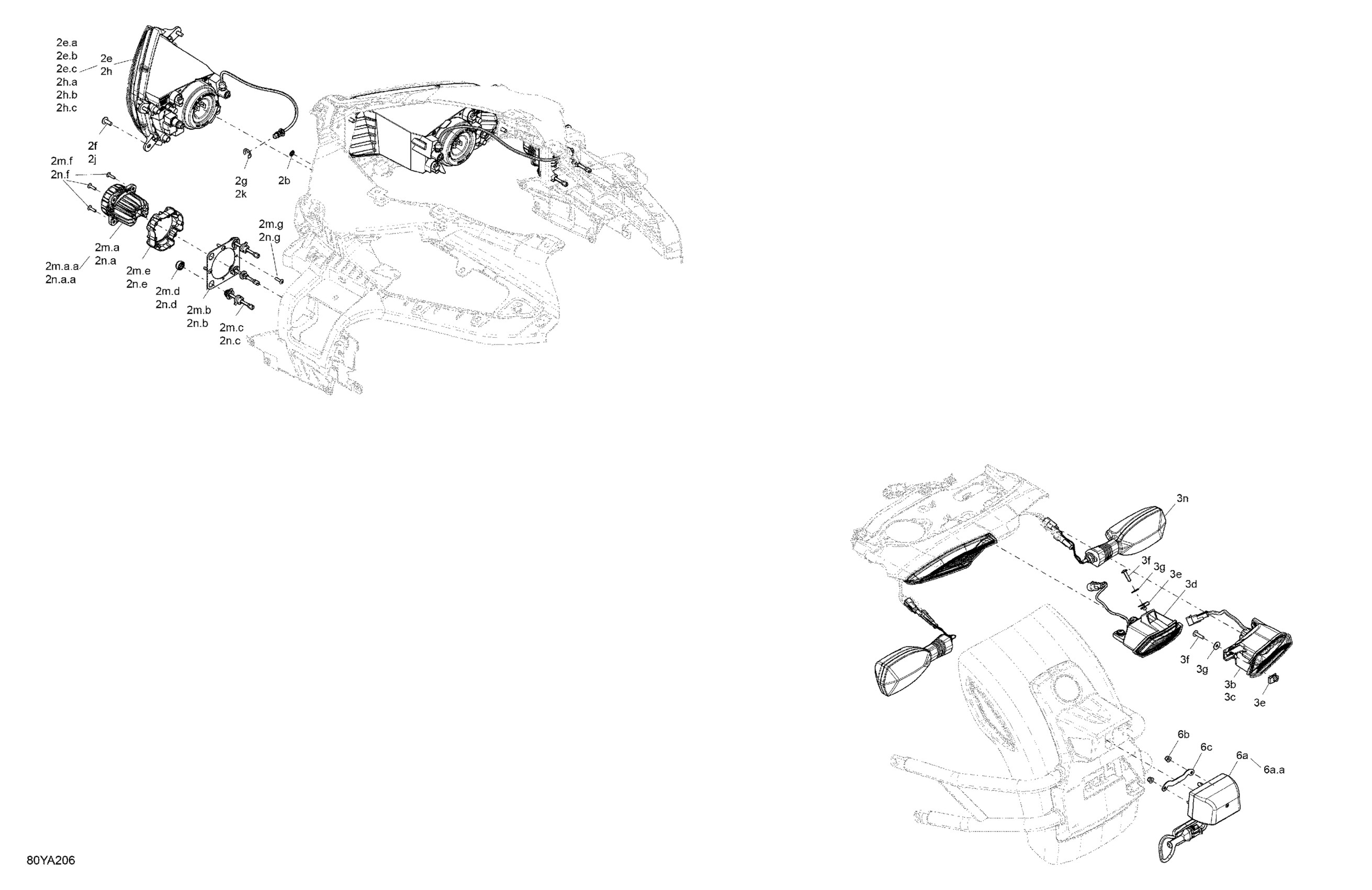

Can-Am 004 - F3 S - Special Series - Gravity Grey, 2021 08- Electric - Vehicle Lighting - Australia-Europe Diagram

Push Nut

LH Headlight | Includes 0b to 0b3

Halogen Bulb, 60/55 W, 12 V ( H4 )

Rubber Cap Protector

Spring

Torx Truss Screw M6 X 16

E-Circlip

RH Headlight | Includes 0d to 0d3

Halogen Bulb, 60/55 W, 12 V ( H4 )

Rubber Cap Protector

Spring

Torx Truss Screw M6 X 16

E-Circlip

Low Beam Ass'y

Halogen Bulb

Headlight Support

Adjustment Screw

Clip

Adapter

Torx-Truss Pt K40 X 16

Torx-Truss Pt K40 X 16

Low Beam Ass'y

Halogen Bulb

Headlight Support

Adjustment Screw

Clip

Adapter

Torx-Truss Pt K40 X 16

Torx-Truss Pt K40 X 16

LH Tail Light | Includes 0h to 0h1

RH Tail Light | Includes 0j to 0j1

Back-Up Light | Includes 0k to 0k1

Panel Nut M5 X 0.8

Torx Truss Screw M5 X 20

Stainless Steel Flat Washer M5

Amber, Rear Turn Signal | Includes 0u to 0u1

License Plate Light

Bulb 12V 10W | Not Shown

Elastic Flange Nut M5

Plate
