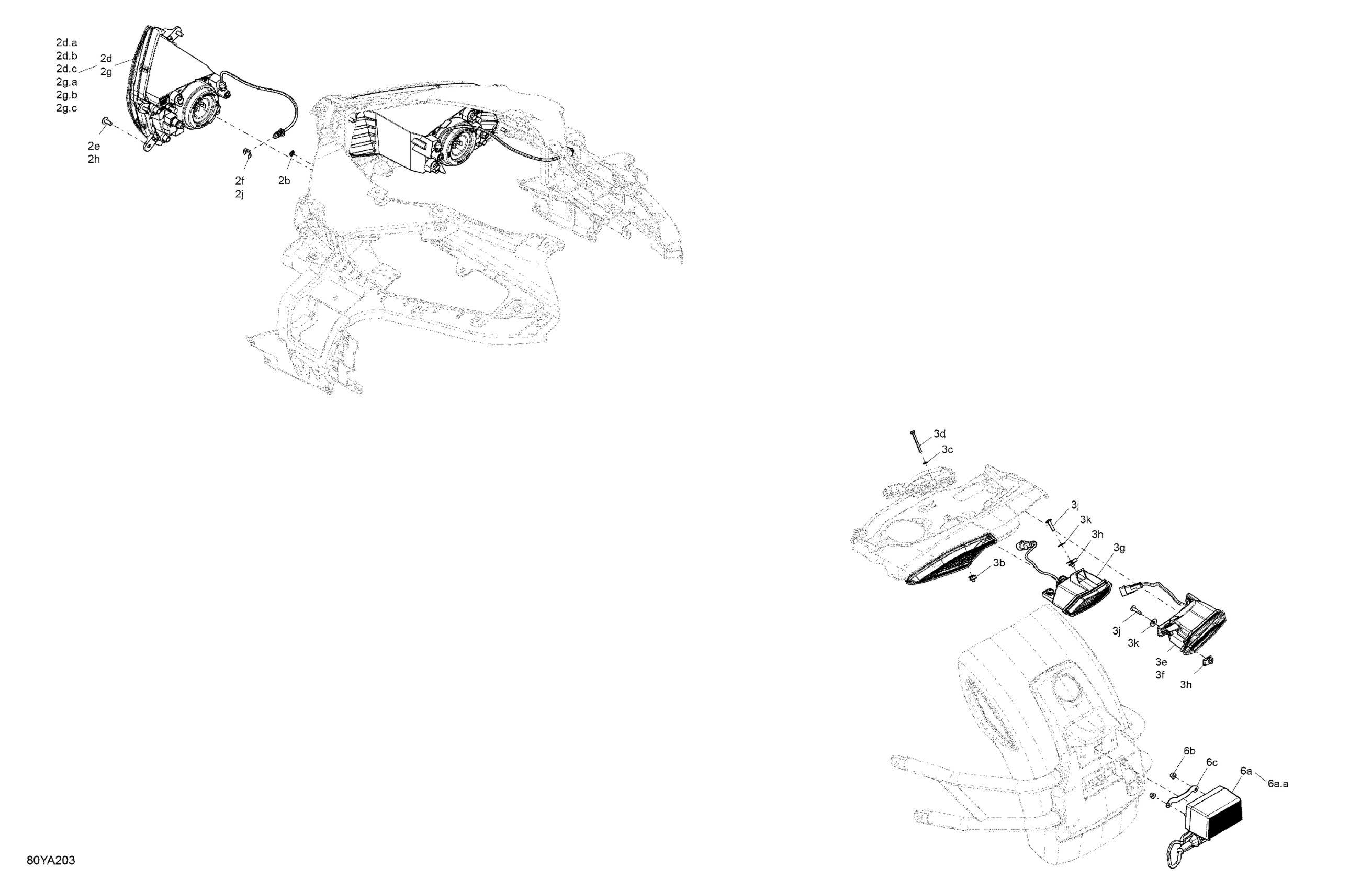

Can-Am 002 - F3 S SE6 - Monolith Black Satin, 2021 08- Electric - Vehicle Lighting - North America Diagram

Description

Price

Push Nut

250100034

$1.29

LH Headlight | Includes 0b to 0b3

710006997

$239.99

2d.a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

2d.b

Rubber Cap Protector

219800280

$19.49

2d.c

Spring

219800281

$3.49

Torx Truss Screw M6 X 16

250000721

$1.69

E-Circlip

293370013

$0.65

RH Headlight | Includes 0d to 0d3

710006998

$239.99

2g.a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

2g.b

Rubber Cap Protector

219800280

$19.49

2g.c

Spring

219800281

$3.49

Torx Truss Screw M6 X 16

250000721

$1.69

E-Circlip

293370013

$0.65

Extruded Panel Nut M4 X 0.7

250100143

$8.49

Flat Washer 4 mm, Stainless

234041600

$1.15

Hex. Screw M4 X 40

207144060

$4.44

LH Tail Light | Includes 0h to 0h1

710007001

$58.49

RH Tail Light | Includes 0j to 0j1

710007003

$61.49

Back-Up Light | Includes 0k to 0k1

710007005

$70.99

Panel Nut M5 X 0.8

250000958

$4.23

Torx Truss Screw M5 X 20

250000715

$2.11

Stainless Steel Flat Washer M5

234052670

$1.01

License Plate Light

710003348

$70.99

6a.a

Bulb 12V 10W | Not Shown

415129261

$2.46

Elastic Flange Nut M5

233251494

$2.11

Plate

710004815

$18.49
